Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH323NAWKGL

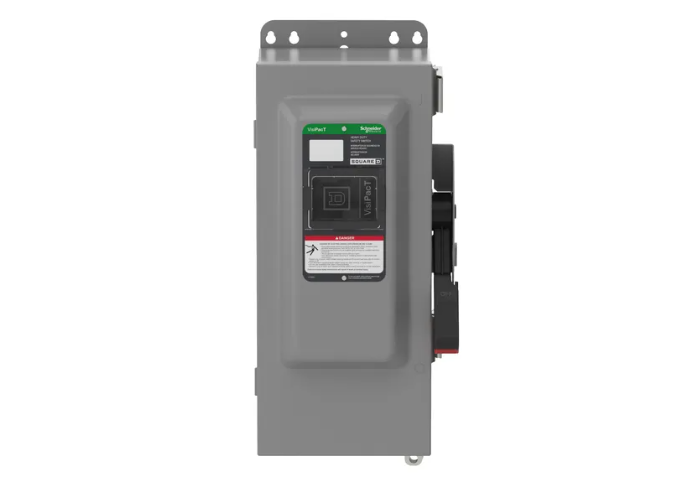

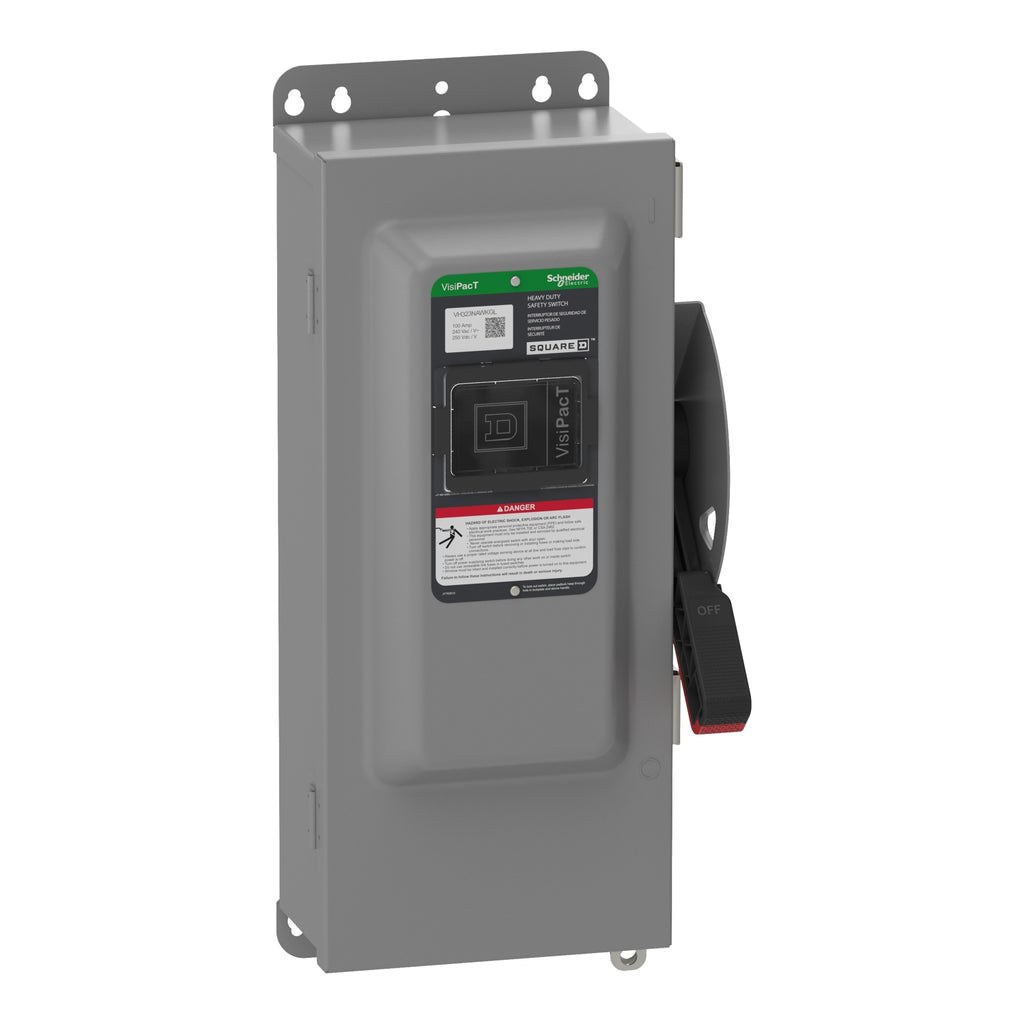

VH323NAWKGL is a Square D heavy duty fusible safety switch rated for 100 amps and 240 volts AC with 3 poles and NEMA 12 enclosure.VH323NAWKGL features a galvanized steel NEMA 12 enclosure designed for indoor use, providing robust protection and reliable disconnect capability. It includes a factory-installed solid neutral and ground lugs, suitable for commercial and industrial applications requiring a 3-phase safety switch with fusible protection.
- Amperage: 100A
- Voltage: 240V AC, 250V DC
- Poles: 3
- Mounting Type: Indoor, NEMA 12 galvanized steel enclosure
- Interrupt Rating: Suitable for motor loads up to 15 HP at 240V AC 3-phase
- Series/Frame: VH Series
- Trip Unit: Fusible
- Neutral: Factory installed solid neutral
- Grounding: Ground lugs included
- Certifications: Meets applicable safety standards for heavy duty safety switches
Specifications
- Part Number: VH323NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 100
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589358
- GTIN : 03606485893587
- Country of Origin : United States
- Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
- Weight : 20.9
- Certification : EU RoHS, UL listed file E2875
