Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description

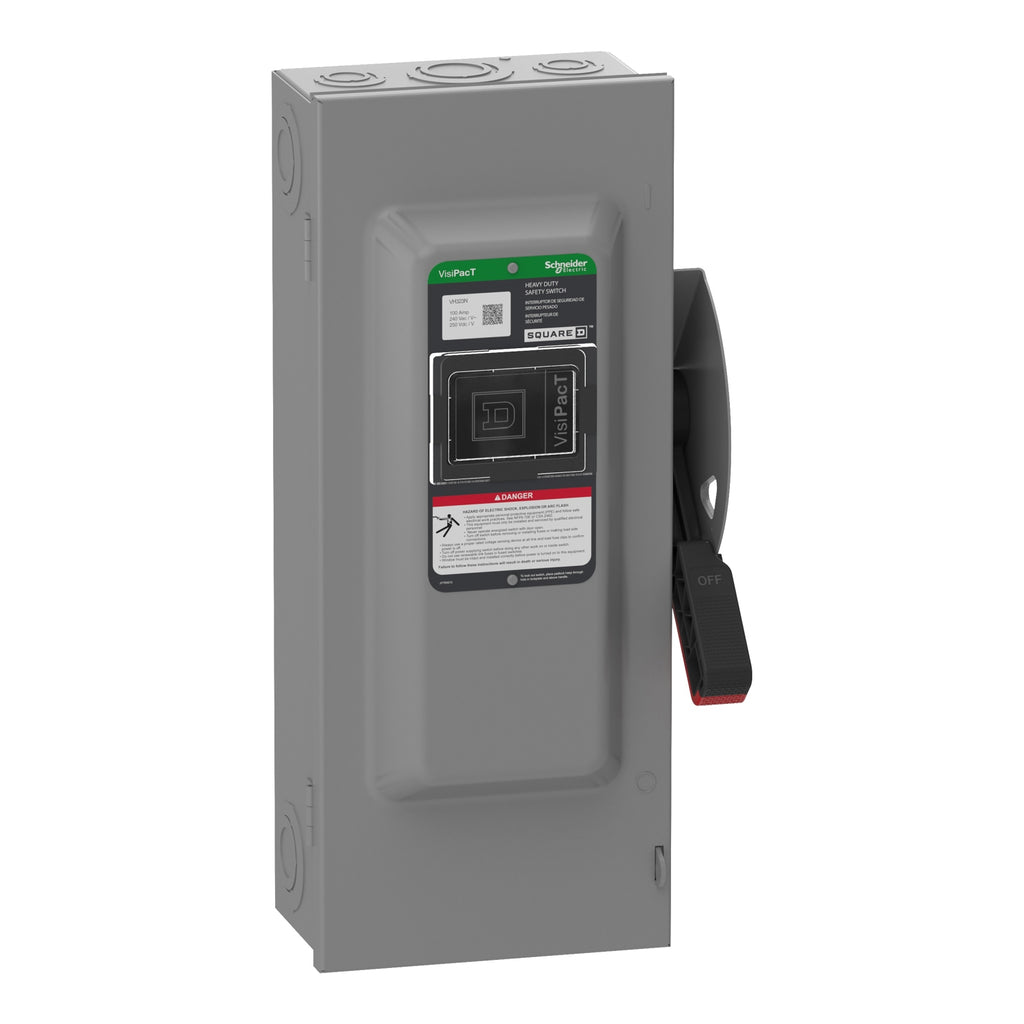

VH323N
VH323N is a Square D heavy duty fusible safety switch rated for 100 amps and 240VAC with 3 poles and NEMA 1 enclosure.VH323N features a 3-pole, 4-wire design with a 10kA short circuit rating, surface mounting, and lug terminals. It supports 7.5 to 30 hp motors, operates at 50 to 60 Hz frequency, and includes a handle actuator. The enclosure is steel with dimensions 22.62 in H x 8.91 in W x 7.04 in D.
- Key Specifications
- Amperage: 100 A
- Voltage: 240 VAC, 250 VDC
- Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 10 kA short circuit
- Enclosure Type: NEMA 1
- Material: Steel
- Frequency: 50 to 60 Hz
- Horsepower Rating: 7.5, 15, 20, 30 hp
- Terminal Type: Lug
- Actuator Type: Handle
- Manufacturer: Square D (Schneider Electric)
Specifications
- Part Number: VH323N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 240 AC
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589356
- GTIN : 03606485893563
- Country of Origin : United States
- Dimensions : 21.84 in (554.74 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
- Weight : 19.8 lb
- Certification : EU RoHS, UL listed file E2875
