Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description

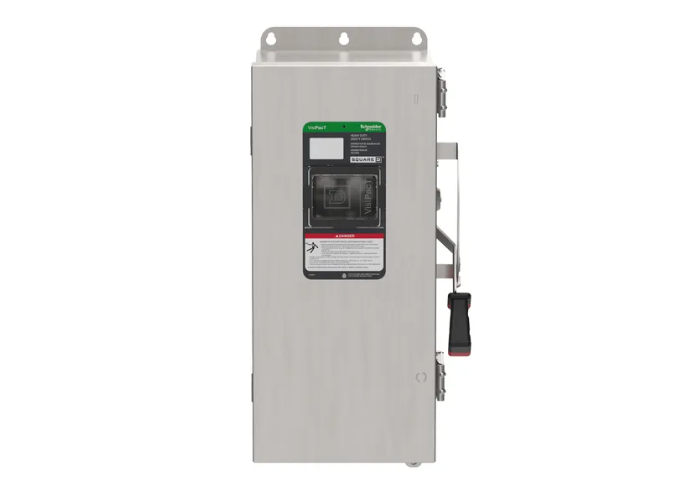

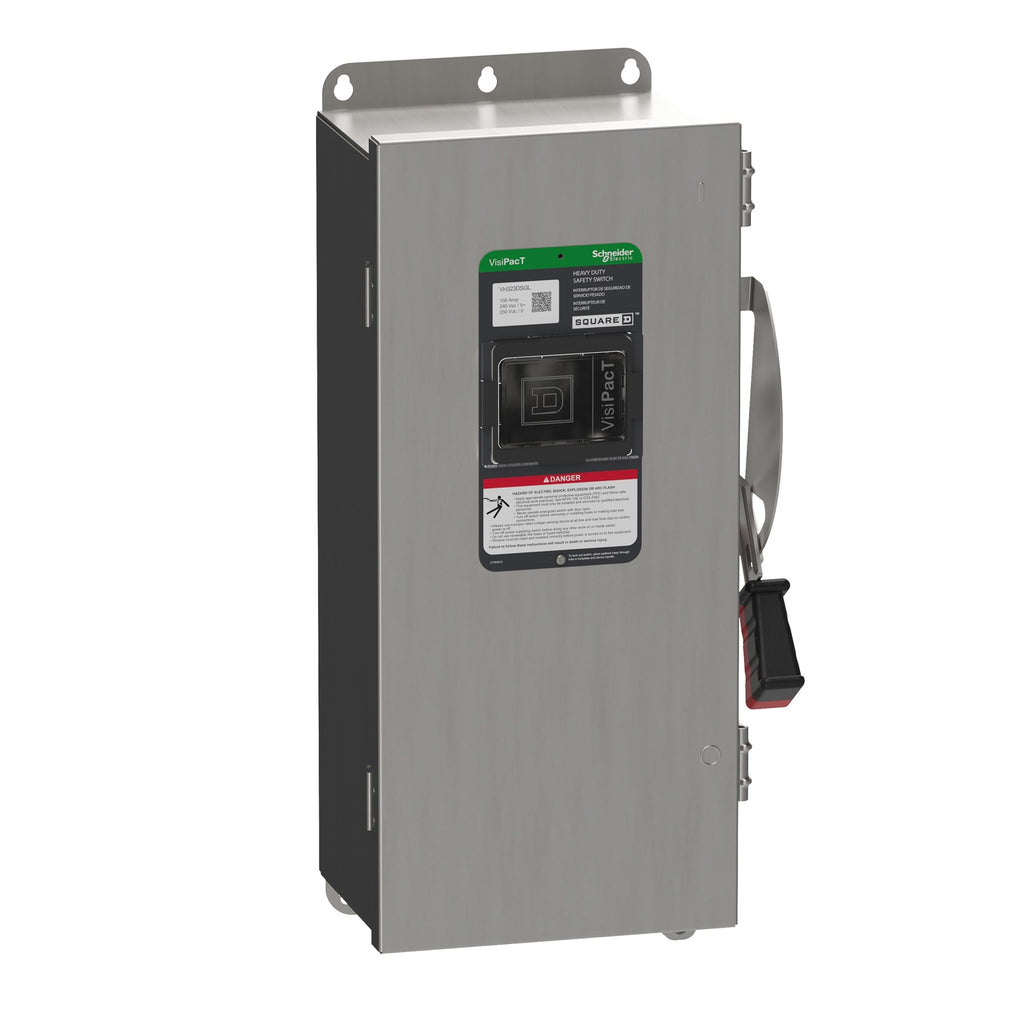

VH323DSGL
VH323DSGL is a heavy-duty fusible disconnect safety switch designed for industrial and commercial applications requiring reliable circuit isolation and protection. This 3-pole, 100A switch features a NEMA 4X stainless steel enclosure for durability in harsh environments and is rated for 240VAC and 250VDC. The VH323DSGL is suitable for use with 7.5, 15, 20, and 30 HP motors and includes a handle actuator for manual operation. It is surface-mounted and features lug terminals for secure wiring connections. The switch is built to meet rigorous safety standards and is ideal for applications where robust performance and long-term reliability are essential. This Square D VH series safety switch is engineered for demanding environments and provides dual cover interlock for added safety. The fusible design allows for easy replacement of fuses, ensuring continued protection for your electrical system. The VH323DSGL is constructed from 304 stainless steel for corrosion resistance and long service life. It is suitable for both AC and DC applications and is rated for 50 to 60 Hz frequency.
- Part Number: VH323DSGL
- Manufacturer: Square D
- Amperage Rating: 100A
- Voltage Rating: 240VAC, 250VDC
- Number of Poles: 3
- Mounting Type: Surface
- Interrupt Rating: 10, 200 kA
- Series/Frame: VH
- Enclosure Type: NEMA 4X
- Material: 304 Stainless Steel
- Terminal Type: Lug
- Actuator Type: Handle
Specifications
- Part Number: VH323DSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589365
- GTIN : 03606485893655
- Country of Origin : United States
- Dimensions : 20.73 in (526.54 mm) x 9.336 in (237.134 mm) x 7.2 in (182.9 mm) (Height x Width x Depth)
- Weight : 24.03 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL listed file E2939
