Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH323BGL

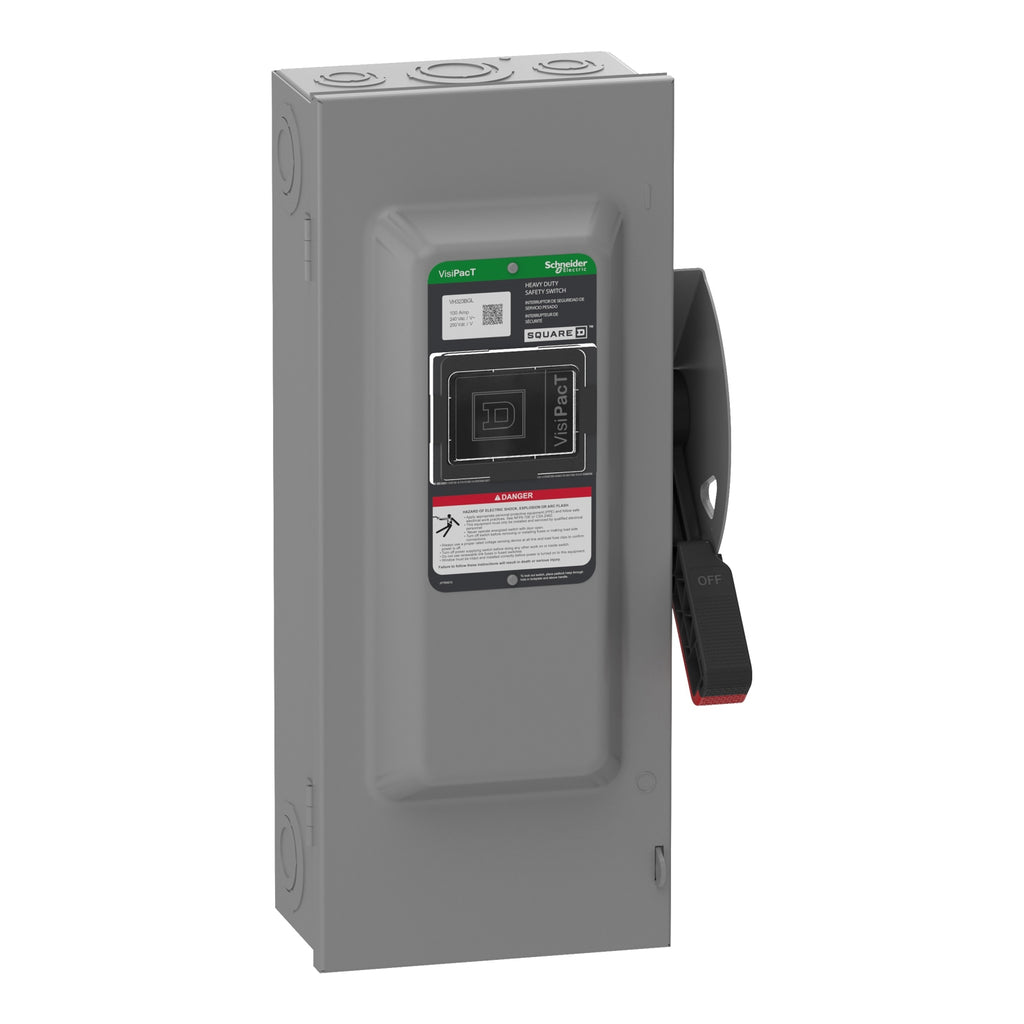

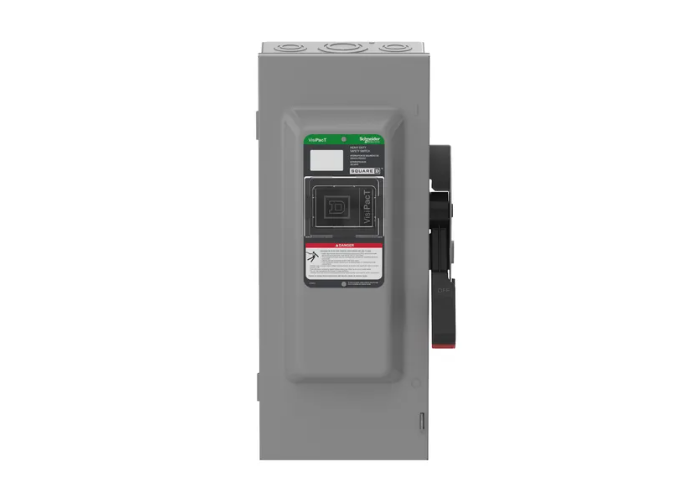

VH323BGL is a Square D heavy duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications. This 3-pole, 100A switch features a fused viewing window, bonded neutral, and ground lugs for secure installation. The robust NEMA 1 enclosure provides protection against dust and light splashing water, making it suitable for a wide range of environments. The quick-make, quick-break mechanism ensures safe and efficient operation.
- Part Number: VH323BGL
- Manufacturer: Square D
- Amperage: 100A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Surface Mount
- Interrupt Rating: 100,000 AIR
- Series/Frame: VH
- Enclosure: NEMA 1
- Features: Fused, Viewing Window, Bonded Neutral, Ground Lugs
- Standards: UL Listed, CSA Certified
Specifications
- Part Number: VH323BGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589360
- GTIN : 03606485893600
- Country of Origin : United States
- Dimensions : 21.84 in (554.74 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
- Weight : 17.961 lb
- Certification : UL listed file E2937
