Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH323BDSGL

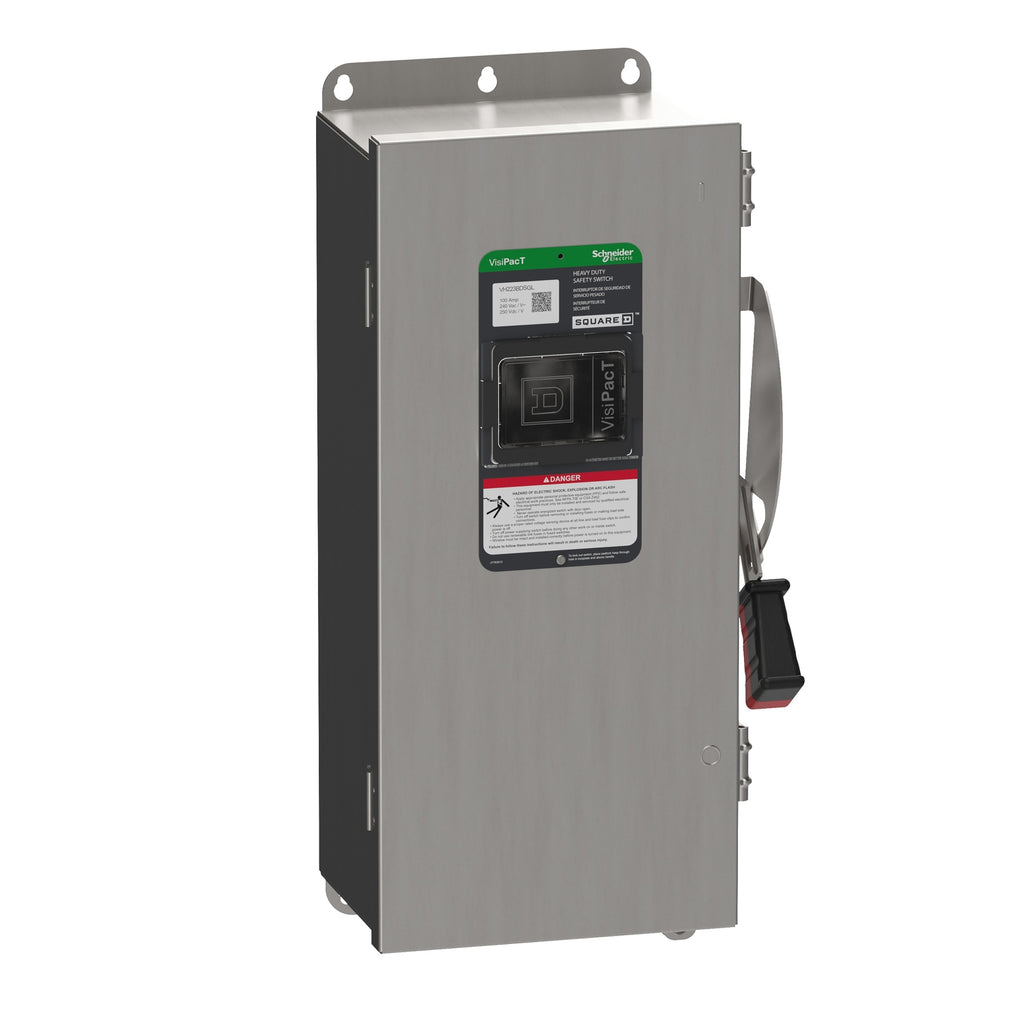

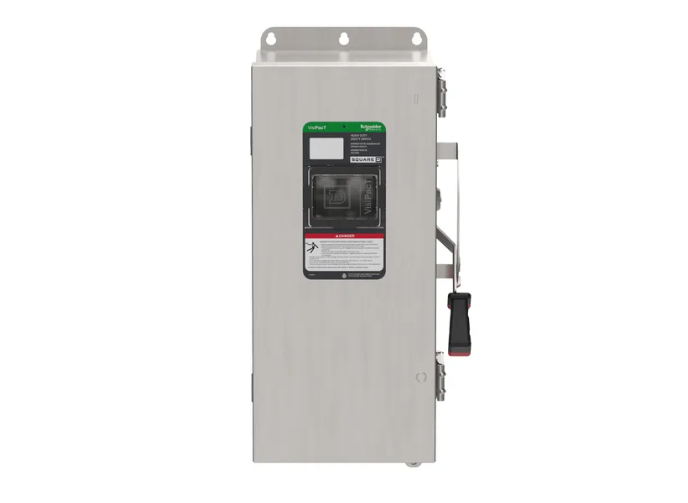

VH323BDSGL is a Square D heavy duty fusible safety switch rated for 100 amps and 240 volts AC with 3 poles and NEMA 4X stainless steel enclosure.This switch features a viewing window for visual confirmation of switch position, quick-make/quick-break mechanism, and is suitable for industrial and commercial applications including service entrance when equipped with neutral assembly or grounding kit. It supports 250 V DC and has a 7.5 hp rating at 240 V AC for 1-phase motors and 15 hp for 3-phase motors.
- Amperage: 100A
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Switch Style: Fusible
- Mounting Type: Surface mount
- Interrupt Rating: Heavy duty
- Enclosure: NEMA 4X stainless steel 304
- Viewing window for switch status
- Quick make, quick break operating mechanism
- Suitable for service entrance with neutral assembly or grounding kit
- Horsepower rating: 7.5 hp (1-phase), 15 hp (3-phase) at 240 V
- Country of Origin: USA
Specifications
- Part Number: VH323BDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589363
- GTIN : 03606485893631
- Country of Origin : United States
- Dimensions : 20.73 in (526.54 mm) x 9.336 in (237.134 mm) x 7.2 in (182.9 mm) (Height x Width x Depth)
- Weight : 24.03 lb
- Certification : UL listed file E2936
