VH323BAWKGL - Square D 100A 240V 3-Pole Heavy Duty Fused Safety Switch NEMA 12

VH323BAWKGL

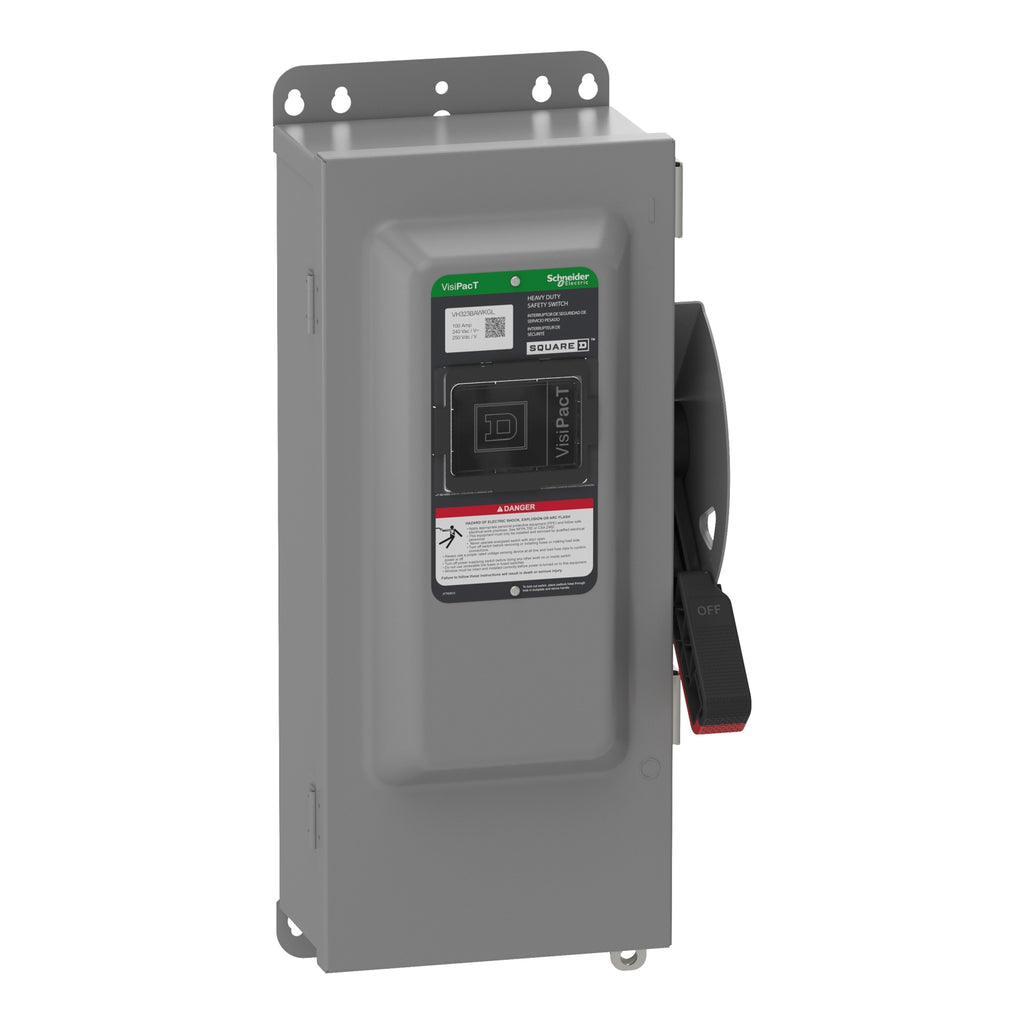

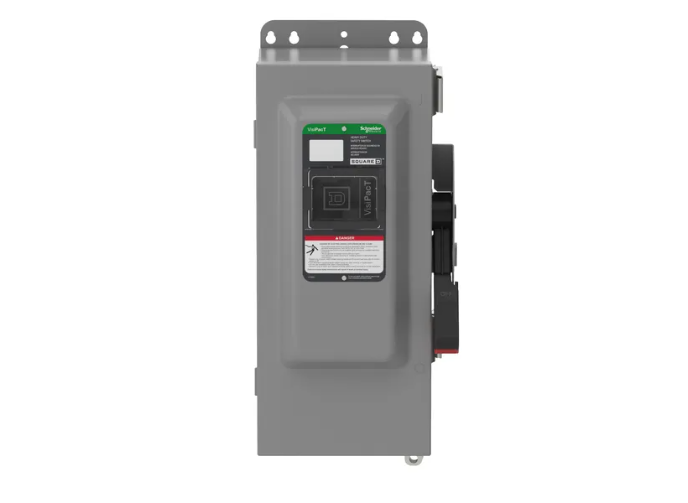

VH323BAWKGL is a heavy duty 3-pole fused safety switch from Square D designed for reliable power isolation and protection.

This Square D VisiPacT safety switch is rated for 100 amps and 240 VAC/250 VDC operation. It features a NEMA 12 galvannealed steel enclosure suitable for industrial environments, a viewing window for quick visual verification of switch position, and a dual cover interlock to prevent cover opening when the switch is on. The switch supports neutral bonded ground lugs and is engineered for mechanical endurance three times greater than NEMA standards. It is suitable for service entrance applications when equipped with the appropriate accessories.

• Amperage: 100A
• Voltage: 240 VAC / 250 VDC
• Poles: 3
• Enclosure: NEMA 12 galvannealed steel
• Fused: Yes, heavy duty
• Viewing window for switch position verification
• Dual cover interlock for safety
• Neutral bonded ground lugs
• Mechanical endurance exceeds NEMA standards
• Suitable for service entrance with accessories

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH323BAWKGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• Fuse Class : J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12

Product Data

• UPC : 060648589362
• GTIN : 03606485893624
• Country of Origin : United States
• Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
• Weight : 20.9 lb
• Certification : UL listed file E2935
