Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH323AWKGL

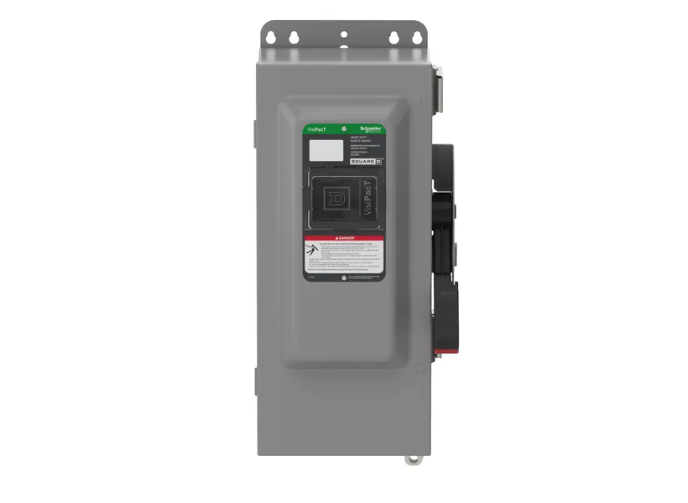

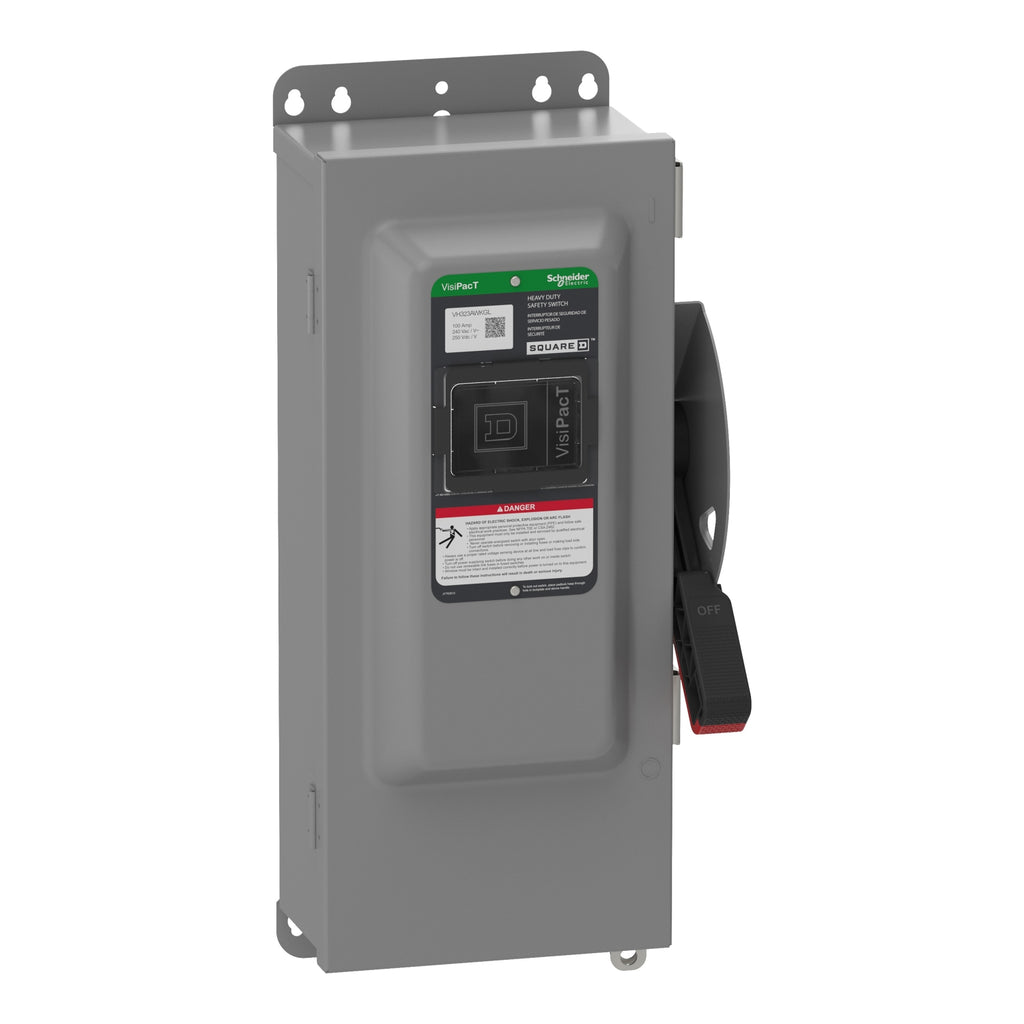

VH323AWKGL is a heavy duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications.Featuring a 100A amperage rating, 240VAC voltage, and 3-pole configuration, this Square D VisiPacT safety switch includes a fused disconnect with a viewing window and ground lugs. The NEMA 12 enclosure provides protection against dust and light splashing water, making it suitable for demanding environments.
- Part Number: VH323AWKGL
- Manufacturer: Square D
- Series/Frame: VisiPacT VH
- Amperage: 100A
- Voltage: 240VAC
- Poles: 3
- Mounting Type: Panel Mount
- Interrupt Rating: 100kA
- Enclosure: NEMA 12
- Features: Fused, Viewing Window, Ground Lugs
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: VH323AWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589364
- GTIN : 03606485893648
- Country of Origin : United States
- Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL listed file E2934
