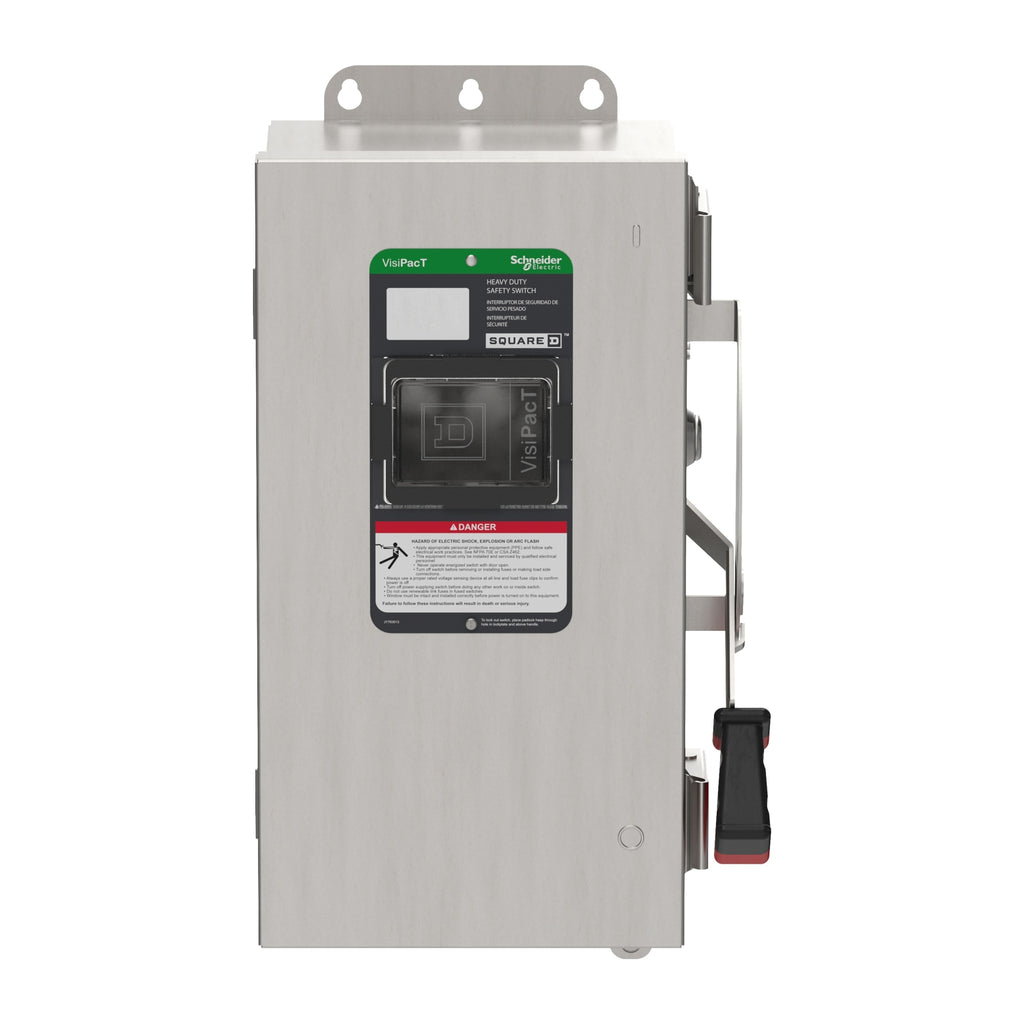

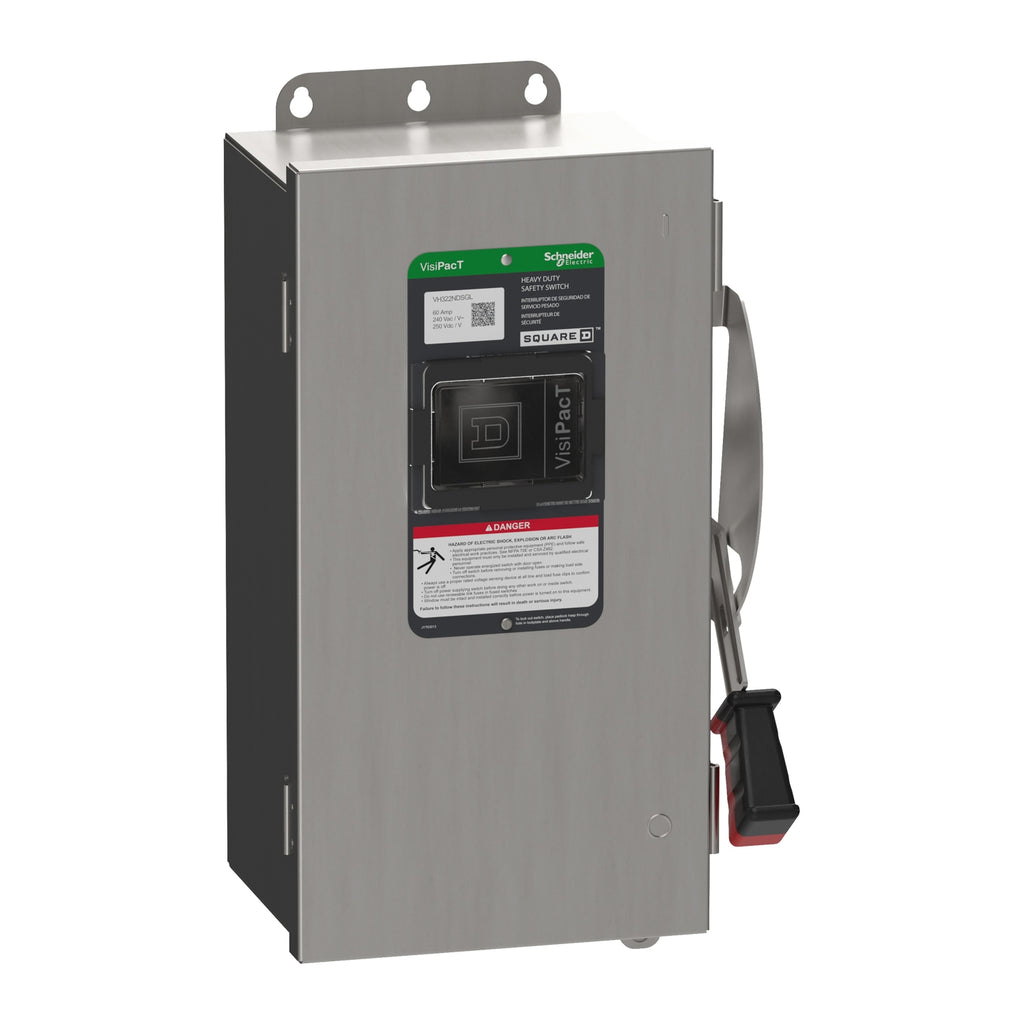

VH322NDSGL - Square D Heavy Duty Fusible Safety Switch 60A 3P 240VAC 250VDC NEMA 4X Stainless Steel

VH322NDSGL

VH322NDSGL is a heavy duty fusible safety switch designed for reliable circuit protection in demanding environments. This Square D VisiPacT® switch features a stainless steel 304 enclosure with a NEMA 4X rating, making it suitable for indoor and outdoor applications requiring protection against dust, water, and corrosion. The switch includes a viewing window for visual confirmation of switch state, neutral installed, and ground lugs for safe grounding. It is rated for 60 amps, 240 VAC, and 250 VDC, with three poles for three-phase applications. This safety switch is ideal for service entrance and equipment disconnect applications where durability and safety are critical. The robust construction and clear visual indicators ensure safe operation and easy maintenance. The switch is compatible with wire sizes 14 - 3 AWG and is suitable for both 1-phase and 3-phase motors.

• Part Number: VH322NDSGL
• Manufacturer: Square D
• Series: VisiPacT®
• Amperage: 60 A
• Voltage: 240 VAC, 250 VDC
• Poles: 3
• Enclosure: NEMA 4X
• Material: Stainless Steel 304
• Mounting Type: Surface Mount
• Neutral: Installed
• Ground Lugs: Included
• Wire Size: 14 - 3 AWG

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH322NDSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589349
• GTIN : 03606485893495
• Country of Origin : United States
• Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
• Weight : 13.658 lb
• Certification : UL listed file E2932
