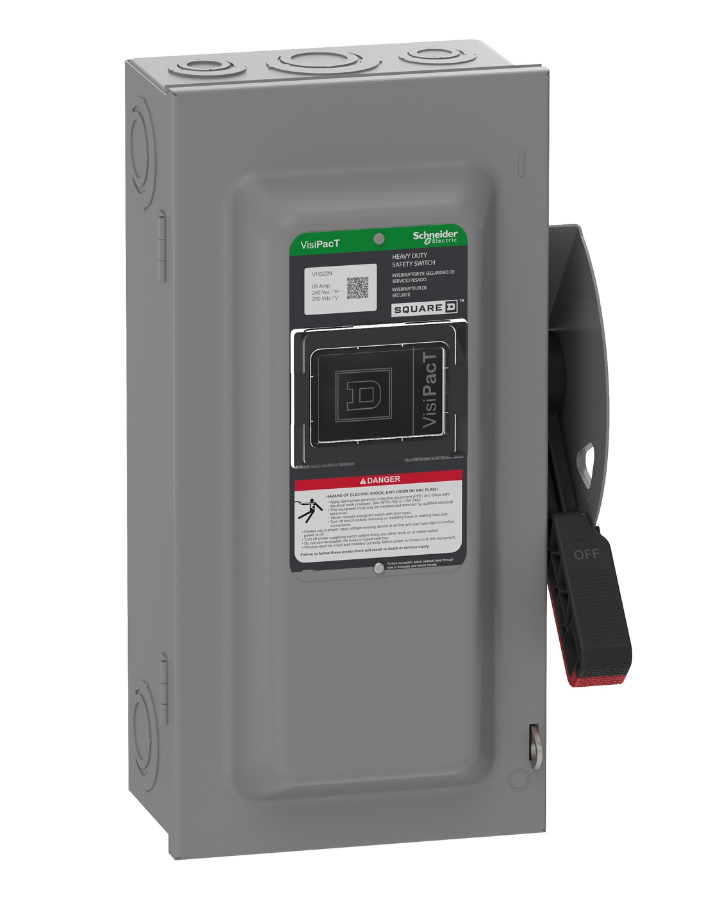

VH322N - Square D 60A 240V 3-Pole Heavy Duty Fused Safety Switch NEMA 1

VH322N

VH322N is a Square D heavy duty fused safety switch rated for 60 amps and 240 volts with 3 poles and a NEMA 1 enclosure.VH322N features a 3-pole, 4-wire configuration including a factory-installed neutral, a viewing window for fuse status, and is designed for heavy duty applications. It supports 60A amperage at 240VAC/250VDC with a fusible disconnect and standard lugs for secure wiring connections.

Key Specifications
• Amperage: 60A
• Voltage: 240V AC / 250V DC
• Poles: 3
• Mounting Type: Surface mount (NEMA 1 enclosure)
• Interrupt Rating: Fusible disconnect
• Neutral: Factory installed
• Viewing Window: Yes
• Series/Frame: VisiPacT Heavy Duty
• Frequency: 50/60 Hz
• Number of Wires: 4 (3 poles + neutral)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH322N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240 AC
• Amperage : 60
• Phase : 3
• Poles : 3
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589346
• GTIN : 03606485893464
• Country of Origin : United States
• Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
• Weight : 8.8 lb
• Certification : EU RoHS, UL listed file E2875
