Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH322DSGL

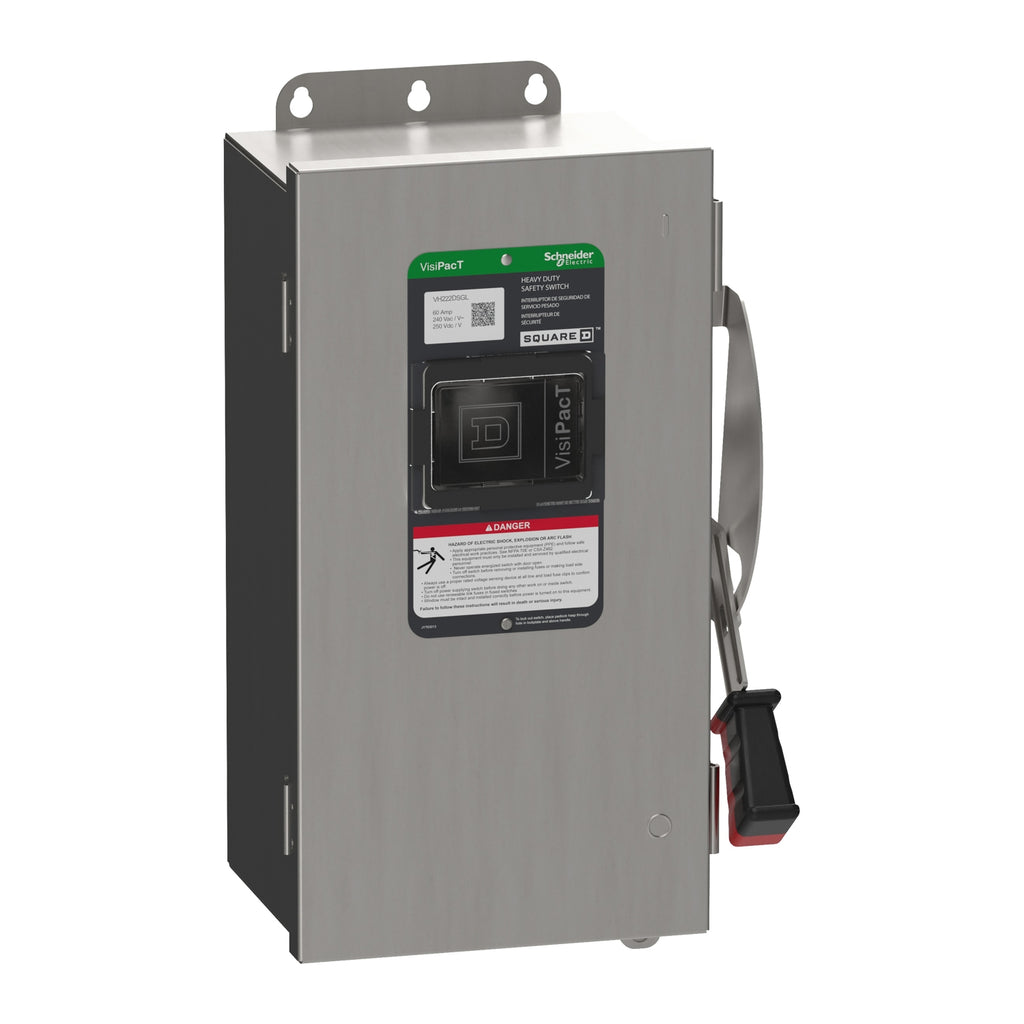

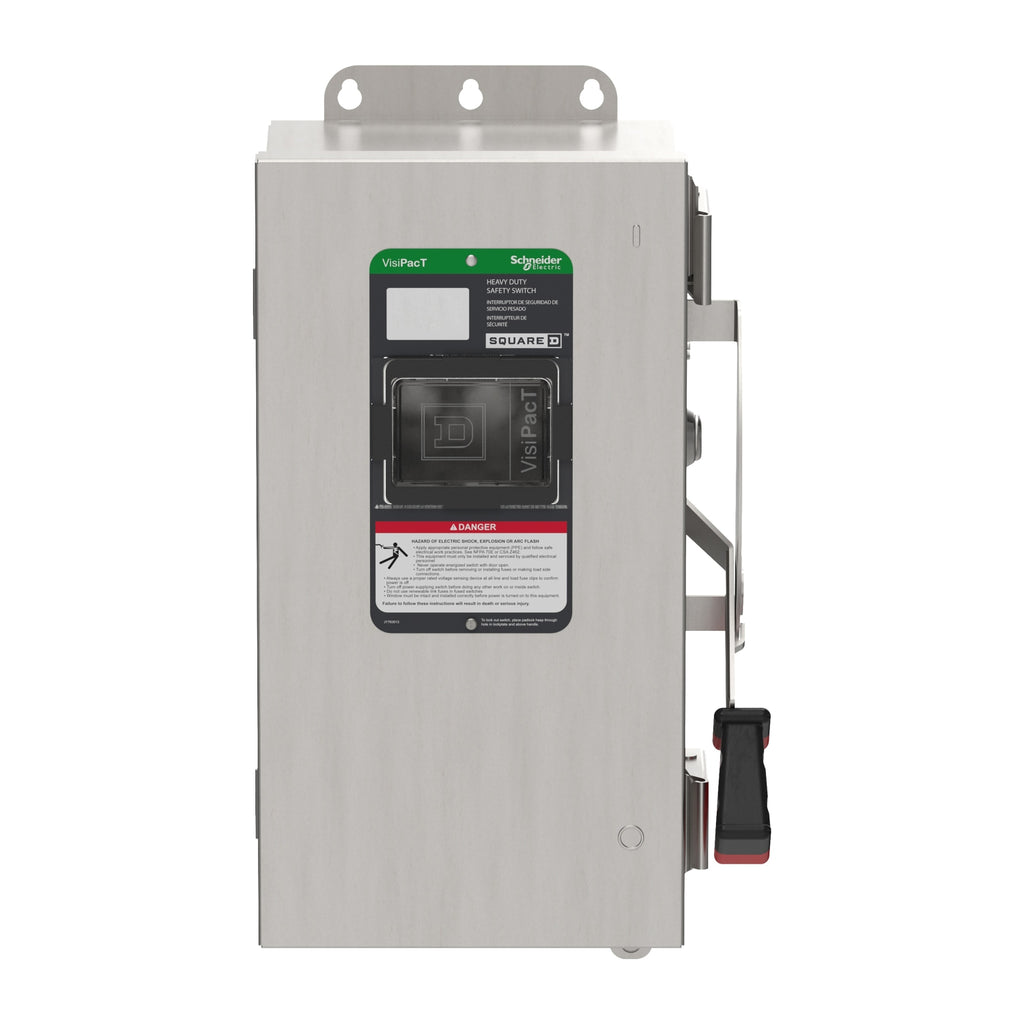

VH322DSGL is a Square D heavy duty fusible safety switch rated for 60 amps and 240 volts with 3 poles and Type 4X enclosure.VH322DSGL features a 3-pole fusible disconnect design with a 240 VAC and 250 VDC voltage rating, suitable for heavy duty industrial applications. It includes a surface mounting type, 304 stainless steel construction, a viewing window, ground lugs, and a short circuit interrupt rating designed for reliable safety and durability.
- Amperage: 60 Amps
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Mounting Type: Surface
- Enclosure: Type 4X, 304 Stainless Steel
- Switch Style: Fusible Heavy Duty
- Short Circuit Interrupt Rating: High (per manufacturer specs)
- Ground Lugs Included
- Viewing Window for Fuse Status
- Series/Frame: VH Series
- Certifications: UL Listed (implied by standard safety switch classification)
Specifications
- Part Number: VH322DSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 60
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589355
- GTIN : 03606485893556
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.2 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL listed file E2929
