VH322BDSGL - Square D VisiPacT Heavy Duty Fusible Safety Switch 60A 240VAC 250VDC 3 Pole NEMA 4X

VH322BDSGL

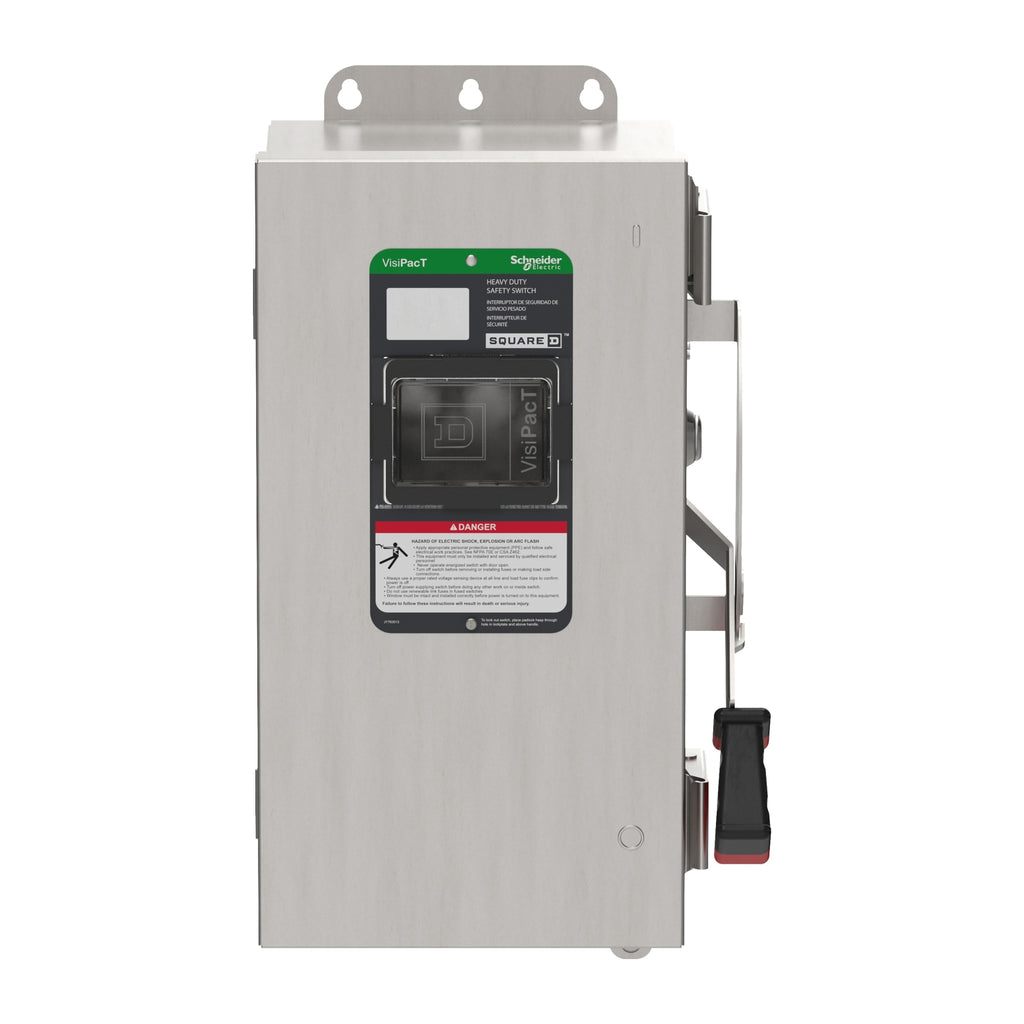

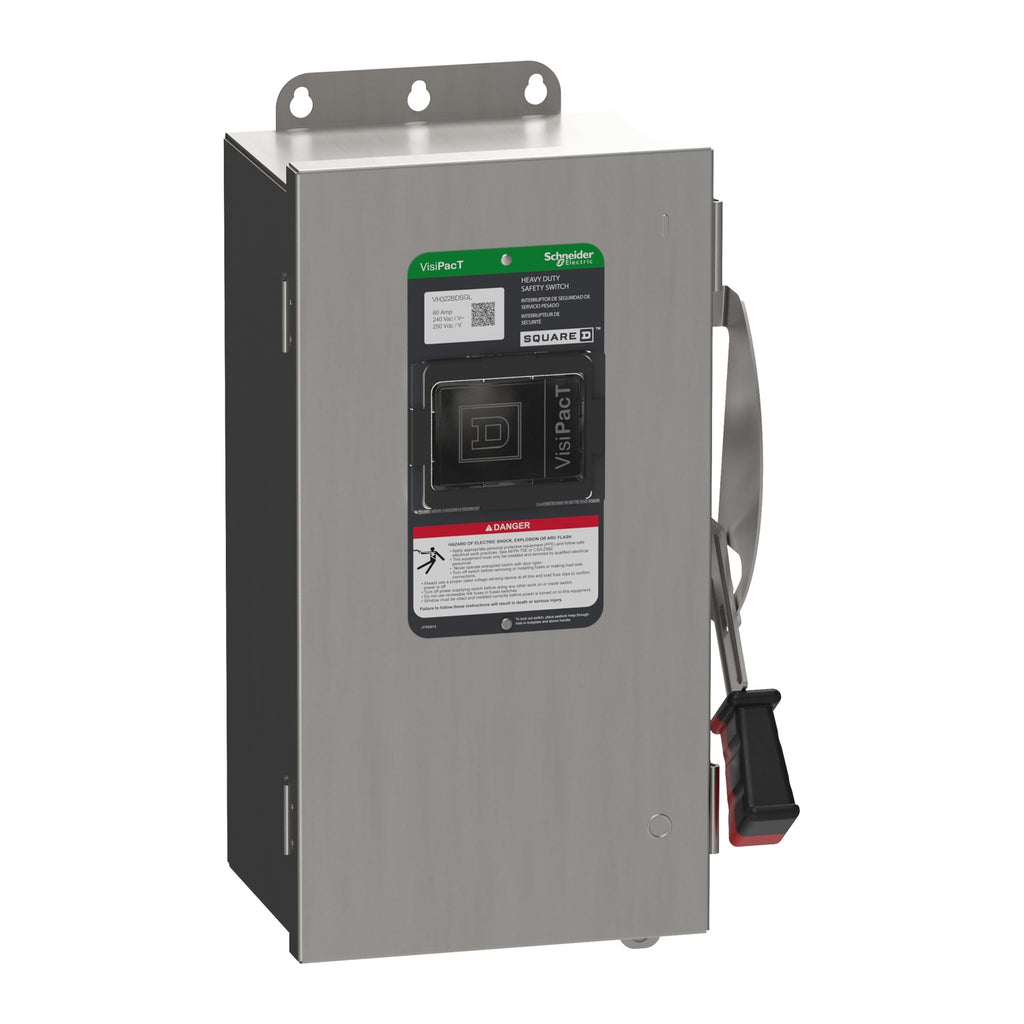

VH322BDSGL is a heavy duty fusible safety switch designed for industrial and commercial applications requiring reliable circuit protection and easy visual confirmation of switch state. This Square D VisiPacT VH322BDSGL safety switch features a 60A, 240VAC/250VDC rating, three-pole configuration, and a NEMA 4X stainless steel enclosure for superior durability in harsh environments. The integrated viewing window allows for visual confirmation of switch position without opening the enclosure, and the fusible design provides effective circuit protection. The switch is suitable for service entrance applications when equipped with the appropriate neutral or grounding kit.

• 60A current rating
• 240VAC / 250VDC voltage rating
• Three-pole configuration
• NEMA 4X stainless steel enclosure
• VisiPacT series
• Fusible disconnect design
• Viewing window for switch state confirmation
• Dual cover interlock for safety
• Neutral bonded with ground lugs
• Mounting: Surface mount
• Interrupt rating: 100kA
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH322BDSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• Fuse Class : J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589353
• GTIN : 03606485893532
• Country of Origin : United States
• Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
• Weight : 13.2 lb
• Certification : UL listed file E2926
