Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH322AWKGL

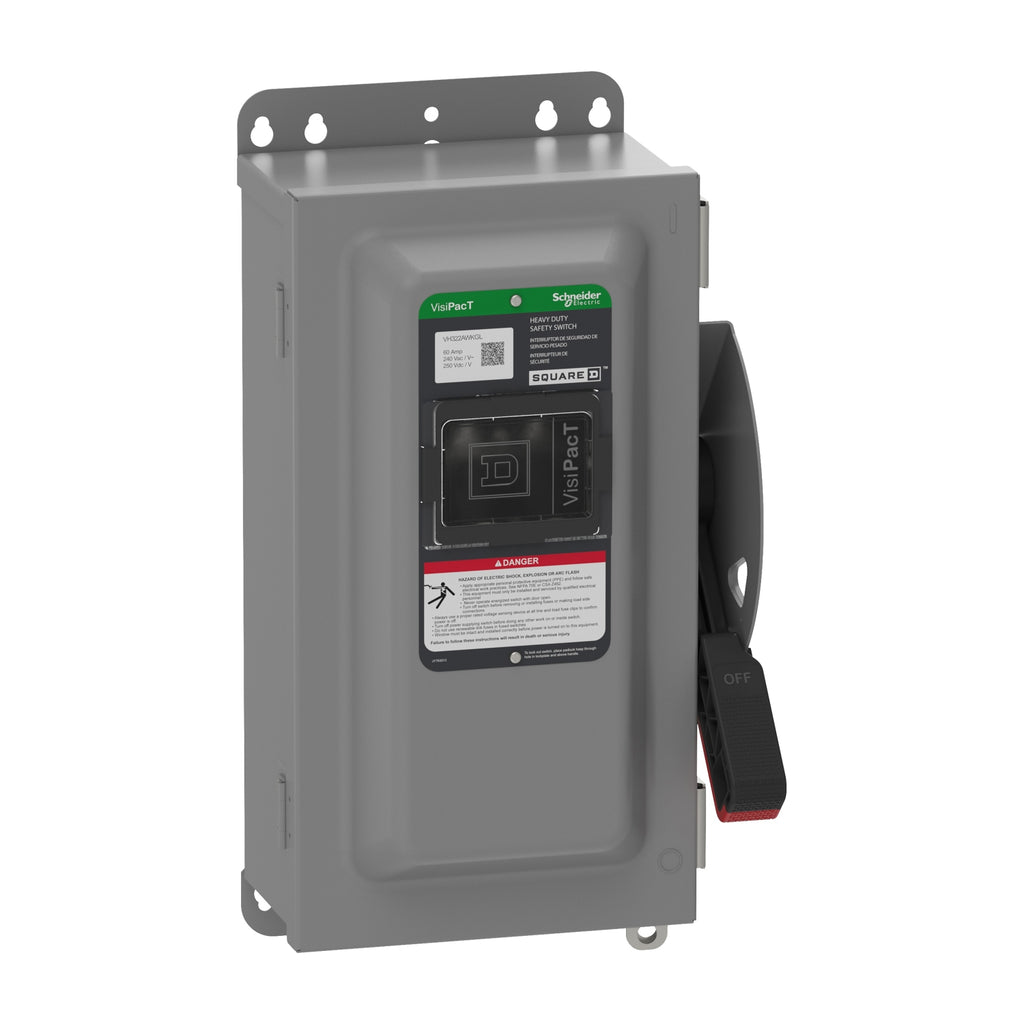

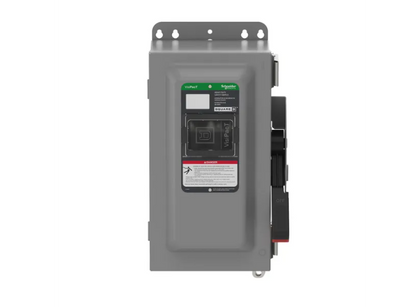

VH322AWKGL is a Square D 3-pole fusible safety switch rated for 60 amps and 240 volts AC, designed for heavy-duty industrial applications.VH322AWKGL features a NEMA 12 enclosure with a viewing window and dual cover interlock for enhanced safety and convenience. It supports both 240VAC and 250VDC operation, includes ground lugs, and is part of the VH series with a fusible switch style.
- Amperage: 60 Amps
- Voltage: 240VAC / 250VDC
- Poles: 3
- Switch Style: Fusible
- Enclosure: NEMA 12
- Mounting Type: Surface mount
- Interrupt Rating: Heavy duty
- Series/Frame: VH
- Features: Viewing window, dual cover interlock, ground lugs
- Country of Origin: United States
Specifications
- Part Number: VH322AWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 60
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589354
- GTIN : 03606485893549
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.48 in (164.59 mm) x 5.195 in (131.953 mm) (Height x Width x Depth)
- Weight : 11.02 lb
- Certification : UL listed file E2924
