Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description

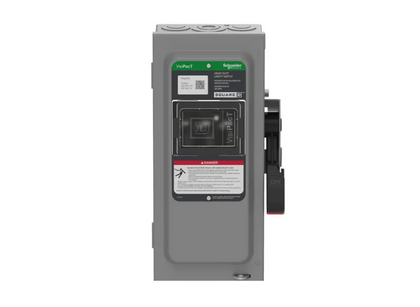

VH321N
VH321N is a Square D heavy duty fused safety switch designed for reliable power distribution and protection. It features a viewing window and is rated for 30 amps at 240 volts with 3 poles and neutral installed.VH321N offers robust performance with a fusible disconnect mechanism suitable for both 240 VAC and 250 VDC applications. This safety switch is NEMA 1 rated for indoor use and includes a short circuit interrupt rating to ensure safe operation in demanding environments.
- Amperage: 30A
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Mounting Type: Surface mount (NEMA 1 enclosure)
- Interrupt Rating: Short circuit rated
- Fuse Type: H, K, R class fuses compatible
- Series/Frame: VisiPact Heavy Duty
- Viewing Window: Yes
- Neutral: Installed
- Certifications: UL Listed
Specifications
- Part Number: VH321N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 30
- Phase : 3
- Poles : 3
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589336
- GTIN : 03606485893365
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
- Weight : 8.8 lb
- Certification : EU RoHS, UL listed file E2875
