Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH321DSGL

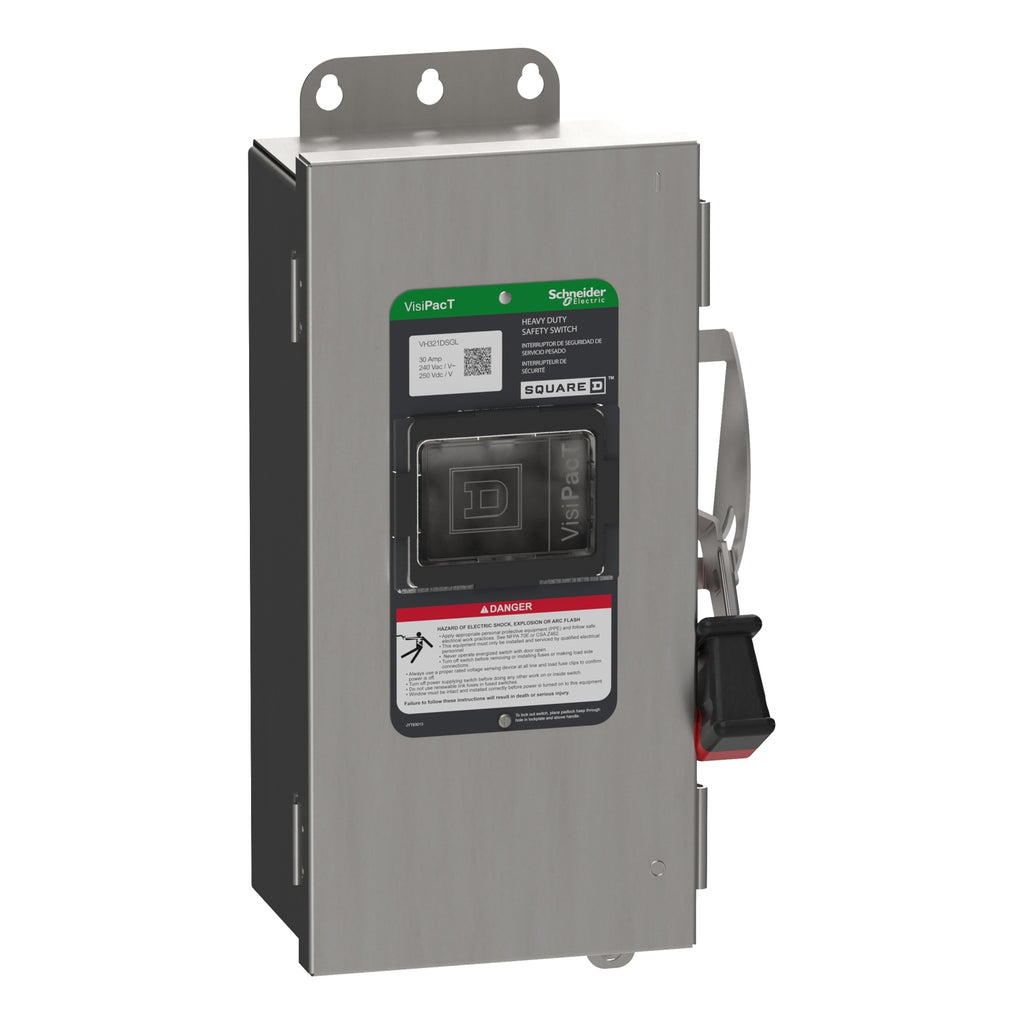

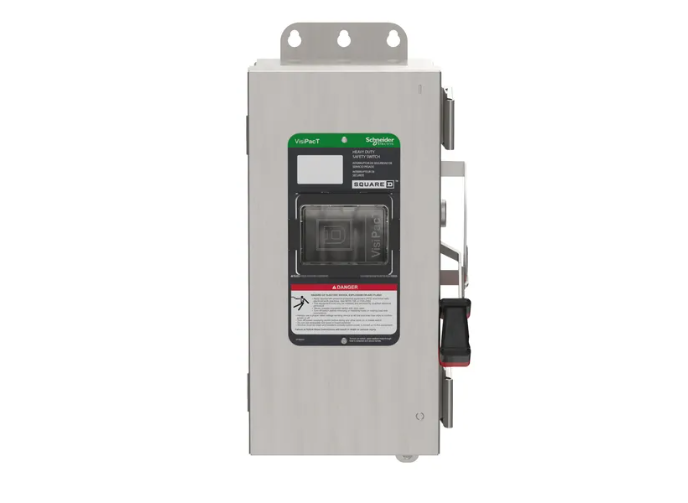

VH321DSGL is a Square D heavy duty fusible safety switch rated for 30 amps and 240 volts AC with 3 poles and NEMA 4X enclosure.VH321DSGL features a viewing window, dual cover interlock, and ground lugs, designed for reliable circuit protection and disconnect in industrial applications. It supports 250 VDC operation and includes a short circuit interrupt rating suitable for heavy duty use.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Mounting Type: Surface mount
- Interrupt Rating: Heavy duty fusible
- Enclosure: NEMA 4X
- Features: Viewing window, dual cover interlock
- Ground Lugs: Included
- Series/Frame: VH Series
- Certifications: UL Listed
Specifications
- Part Number: VH321DSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589345
- GTIN : 03606485893457
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.358 lb
- Certification : UL listed file E2919
