VH321BGL - Square D VH 30A 240VAC/250VDC Fusible Safety Switch 3 Pole NEMA 1

VH321BGL

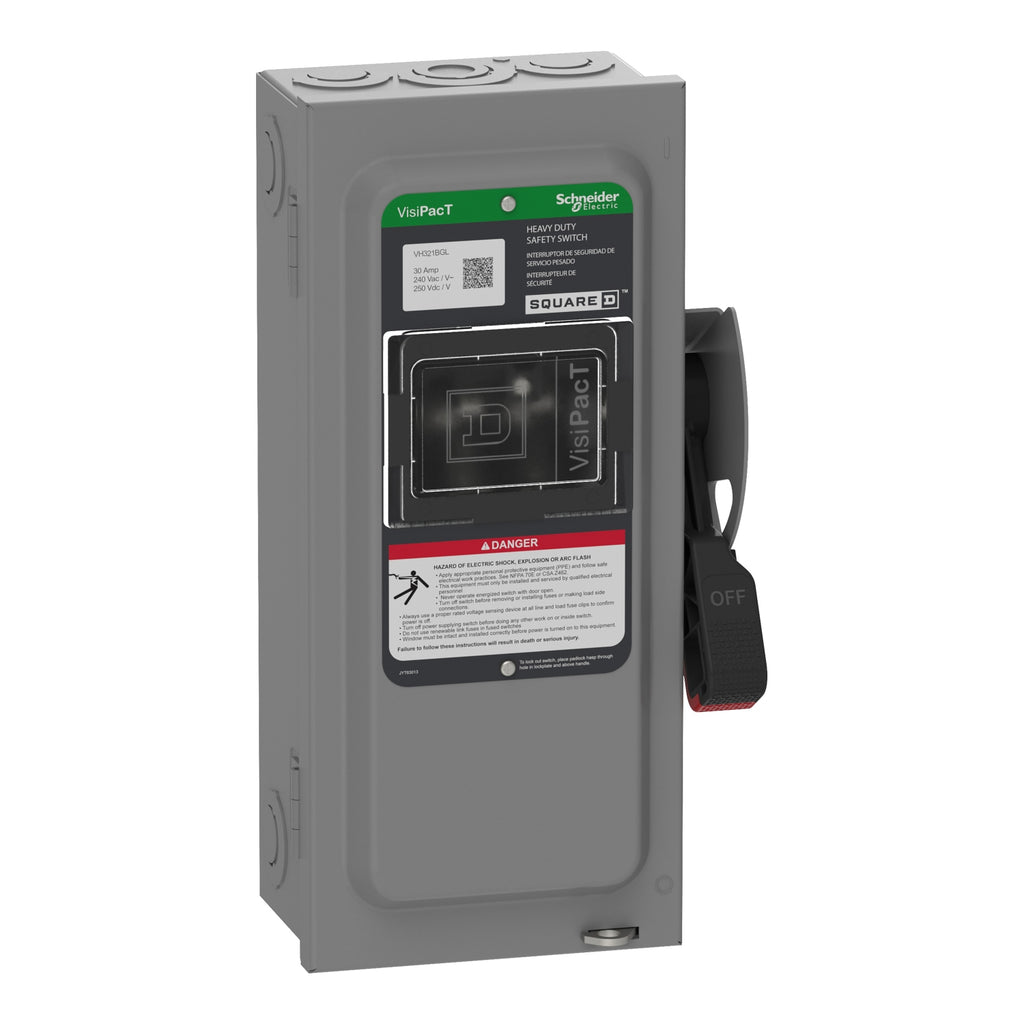

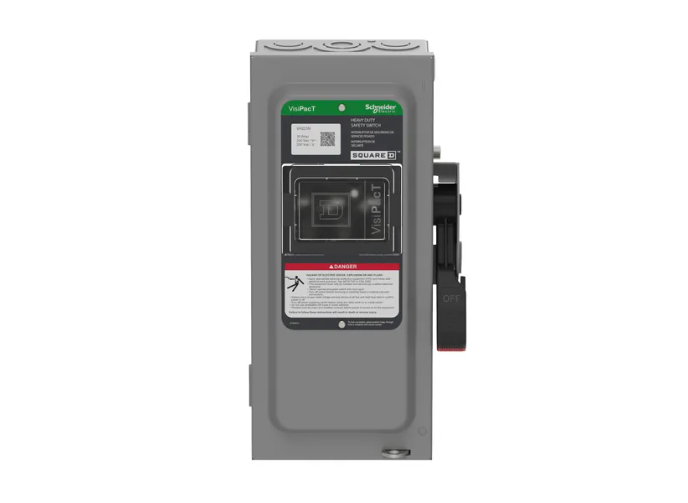

VH321BGL is a heavy duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications. This Square D VH series switch features a three pole configuration, 30A current rating, and supports both 240VAC and 250VDC voltages. The unit includes a viewing window for visual confirmation of switch state, neutral bonded construction, and ground lugs for added safety. Suitable for service entrance applications when equipped with the proper neutral assembly or grounding kit. The VH321BGL is built with a robust steel housing and NEMA 1 enclosure for indoor use, providing protection against dust and light splashing. It is ideal for use with both single and three phase motors, supporting up to 3 hp at 240VAC for single phase and up to 7.5 hp at 240VAC for three phase motors. The switch is designed for surface mounting and offers a compact footprint for easy installation.

• Part Number: VH321BGL
• Manufacturer: Square D
• Series: VH
• Amperage: 30A
• Voltage: 240VAC / 250VDC
• Poles: 3
• Mounting Type: Surface
• Enclosure Rating: NEMA 1
• Housing Material: Steel
• Switch Style: Fusible
• Neutral Bonded: Yes
• Ground Lugs: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH321BGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• Fuse Class : J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589340
• GTIN : 03606485893402
• Country of Origin : United States
• Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
• Weight : 8.8 lb
• Certification : UL listed file E2917
