Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH224NR

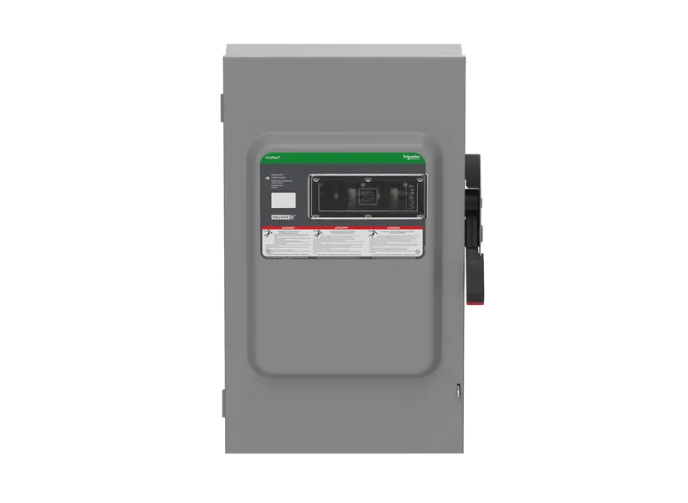

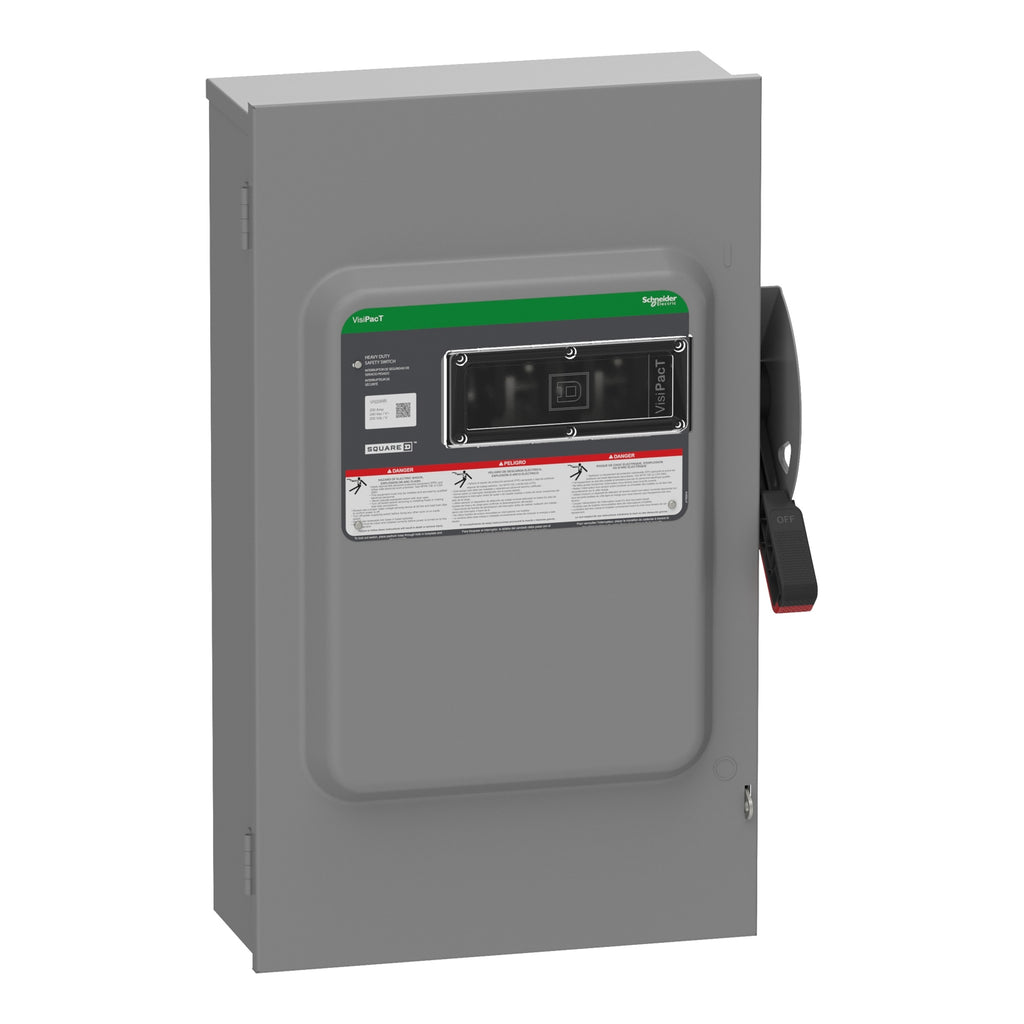

VH224NR is a Square D 200A 2 Pole fusible safety switch designed for heavy-duty service entrance and industrial applications. This switch features a NEMA 3R enclosure for indoor and outdoor use, dual cover interlock, and a viewing window for safe operation. The VH224NR is rated for 240VAC and 250VDC, with a short circuit interrupt rating of 10 kA. It is surface mountable and constructed with galvannealed steel for durability. The switch is fusible, single throw, and includes neutral capability for versatile installation.
- Part Number: VH224NR
- Manufacturer: Square D
- Amperage: 200A
- Voltage: 240VAC, 250VDC
- Poles: 2
- Mounting Type: Surface
- Interrupt Rating: 10 kA
- Series/Frame: F
- Configuration: Fusible, Single Throw
- Enclosure: NEMA 3R
- Terminal Connection: Lugs
- Certifications: UL, RoHS
Specifications
- Part Number: VH224NR
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 200
- Phase : 1
- Poles : 2
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589327
- GTIN : 03606485893273
- Country of Origin : United States
- Dimensions : 28.94 in (735.08 mm) x 17.016 in (432.206 mm) x 8.506 in (216.052 mm) (Height x Width x Depth)
- Weight : 45 lb
- Certification : EU RoHS, UL listed file E2875
