Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH224NDSGL

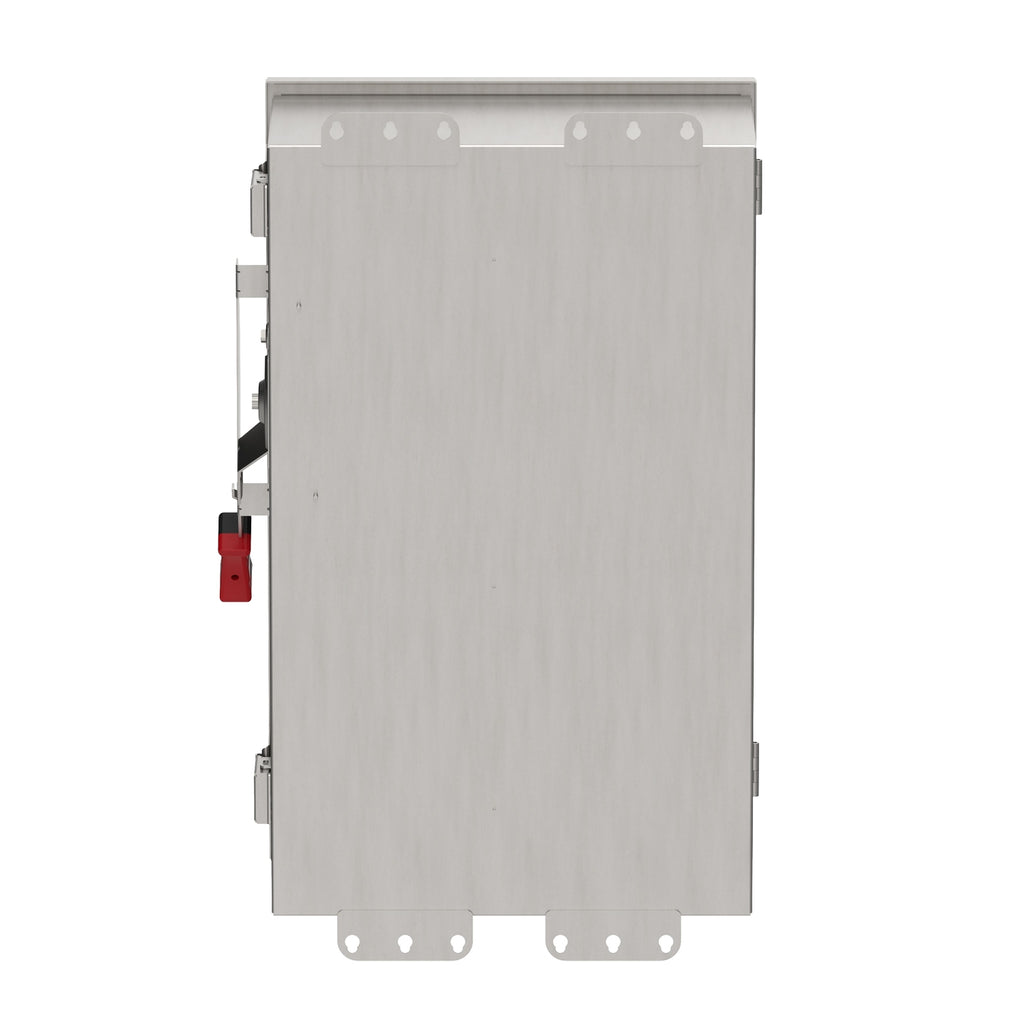

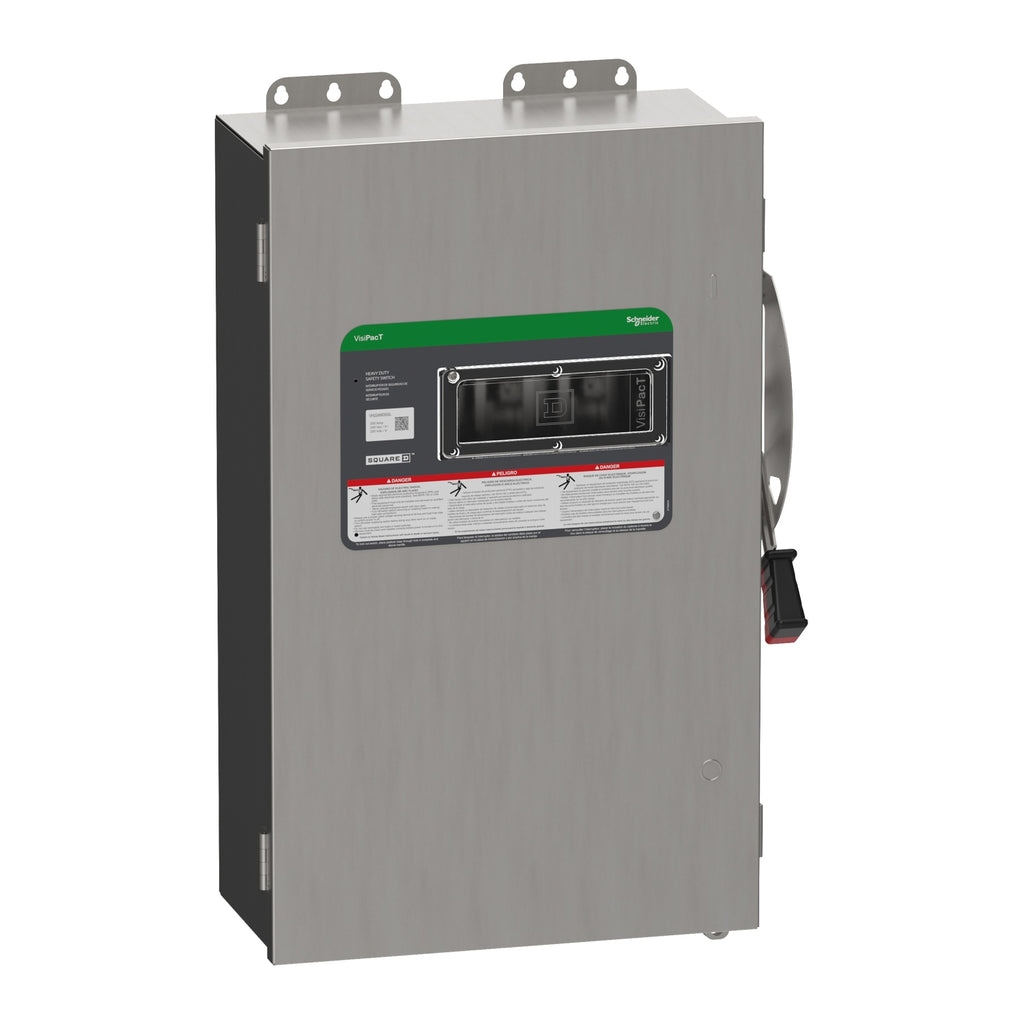

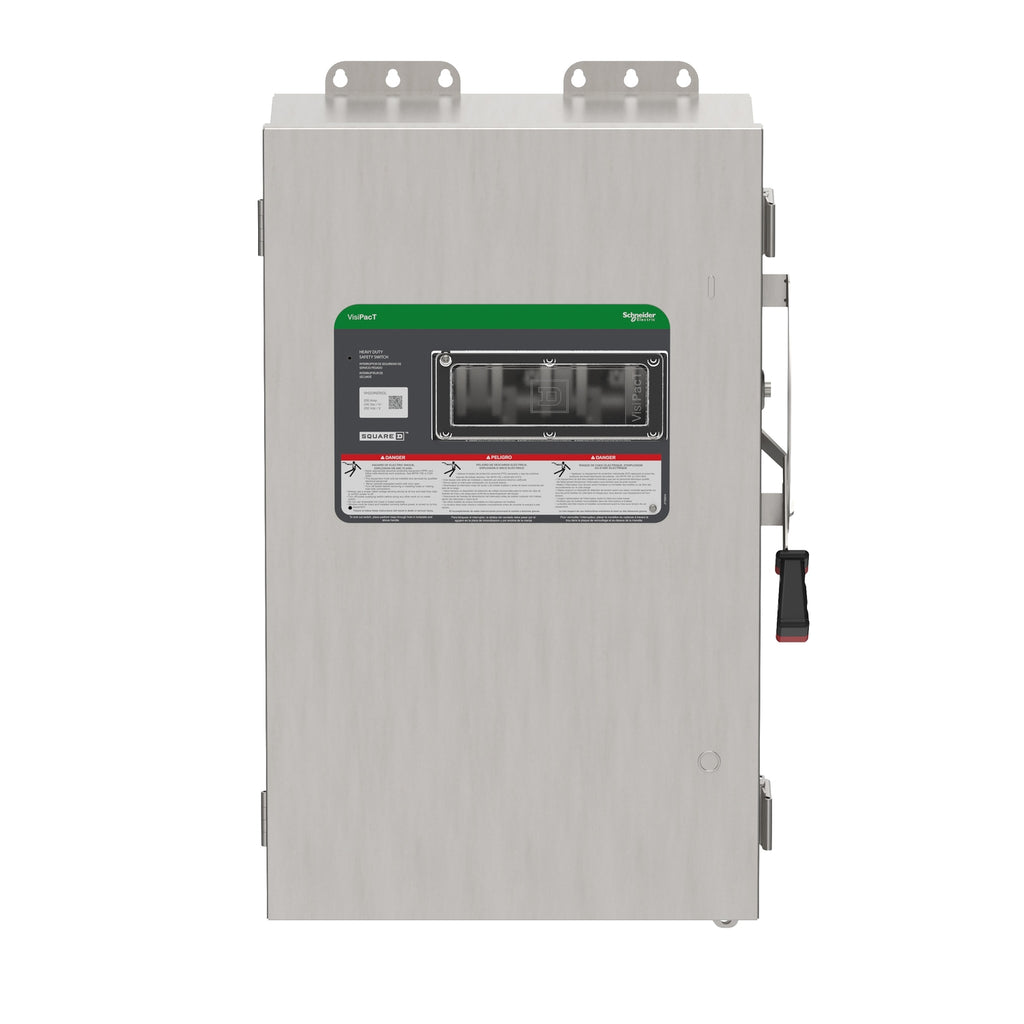

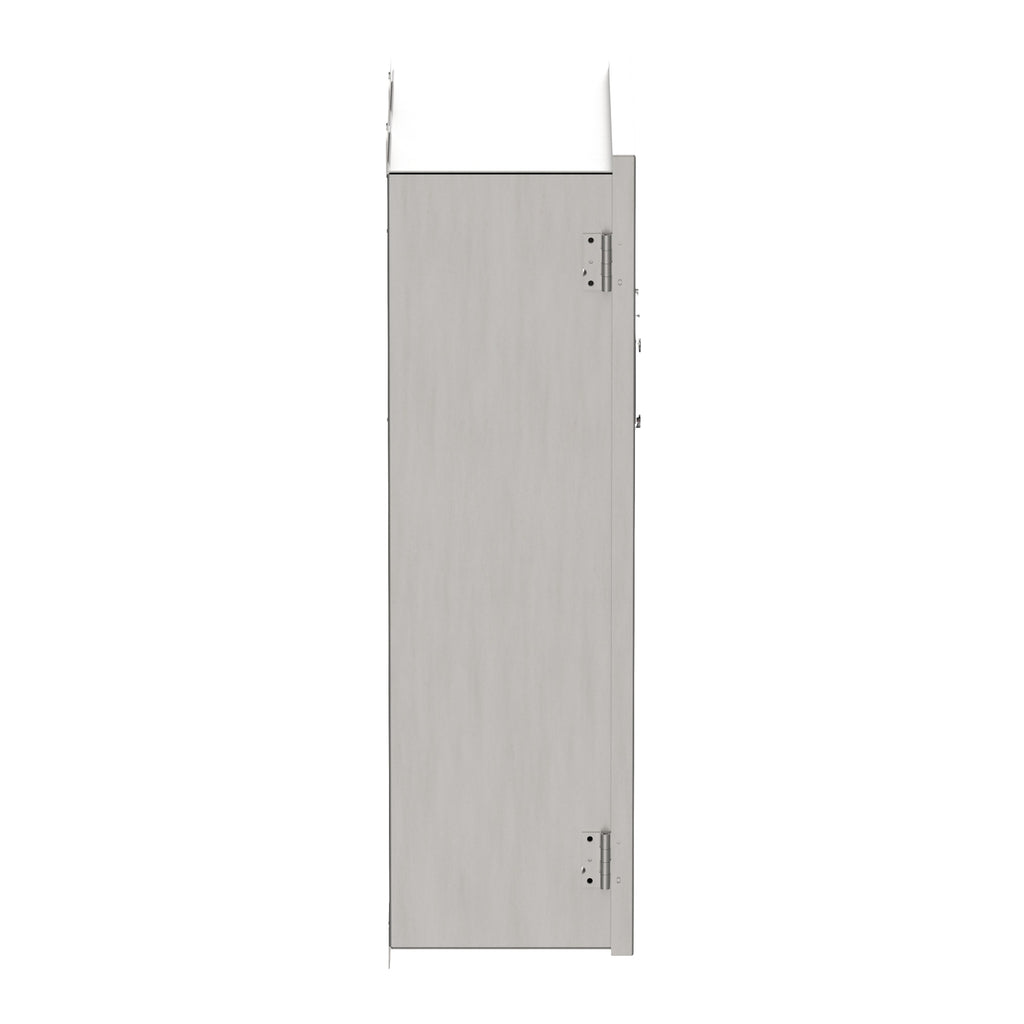

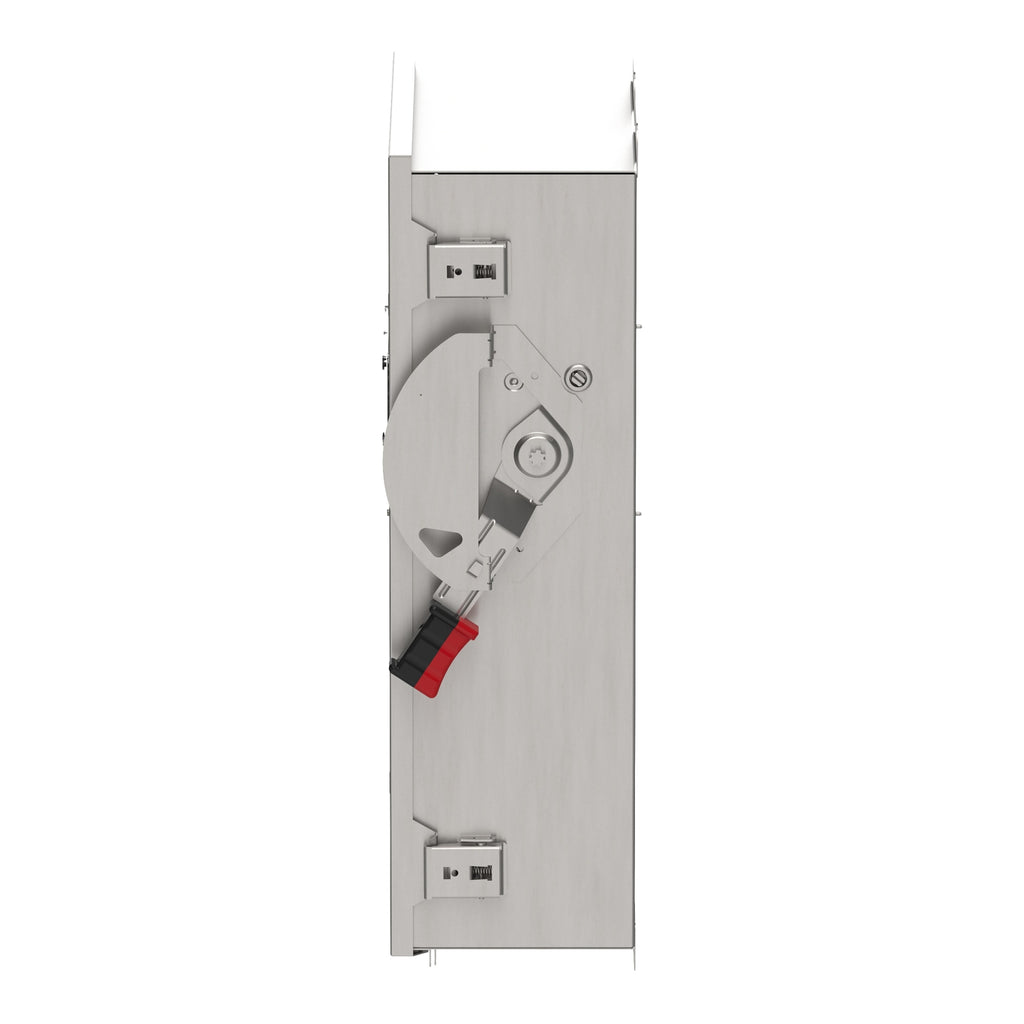

VH224NDSGL is a Square D heavy duty safety switch designed for reliable power distribution control and protection.
This fusible safety switch features a 200 ampere rating with 2 poles, suitable for 240 VAC and 250 VDC applications. It includes a viewing window for fuse status, a NEMA 4X enclosure for harsh environments, and installed ground lugs with neutral. The switch offers robust short circuit interrupting capability, ensuring safe disconnection under load.
- Key Specifications
- Amperage: 200A
- Voltage: 240 VAC / 250 VDC
- Poles: 2
- Mounting Type: Surface mount
- Interrupt Rating: Heavy duty fusible
- Enclosure Rating: NEMA 4X
- Neutral and Ground Lugs: Installed
- Viewing Window: Yes
- Manufacturer: Square D
- Series/Frame: Heavy Duty
- Trip Unit: Fusible
- Certifications: UL Listed
- Part Number: VH224NDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 200
- Phase : 1
- Poles : 2
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
- UPC : 060648589329
- GTIN : 03606485893297
- Country of Origin : United States
- Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
- Weight : 57.1 lb
- Certification : EU RoHS, UL listed file E2875
