Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH224NAWKGL

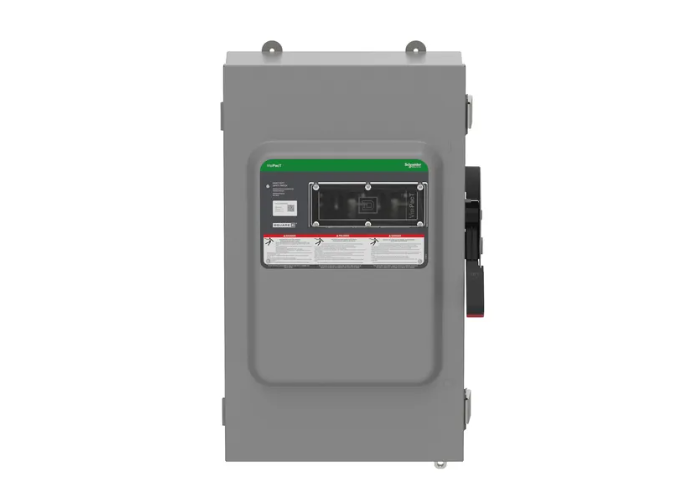

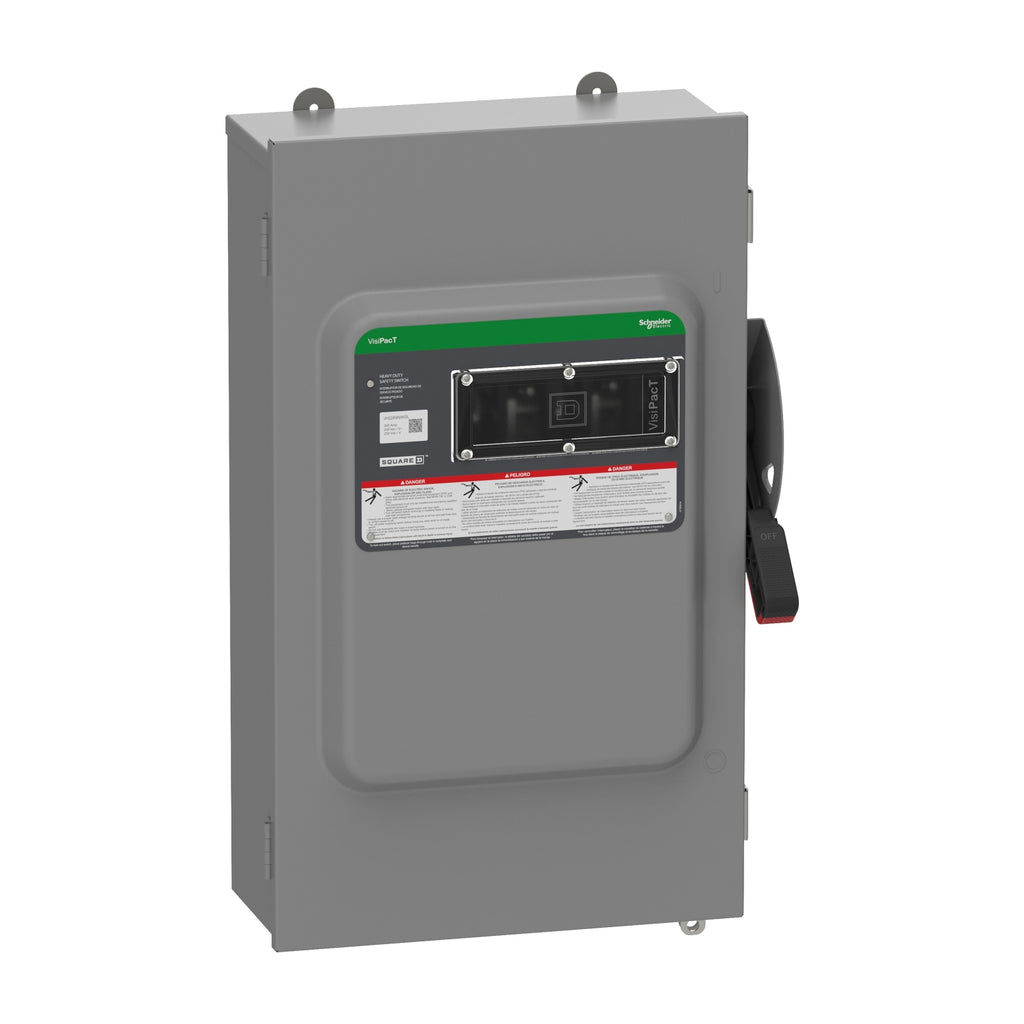

VH224NAWKGL is a Square D heavy duty fusible safety switch rated for 200 amps and 240 volts with 2 poles and a NEMA 12 enclosure.
This switch features a fusible design with a viewing window for fuse status, suitable for reliable circuit disconnection in industrial environments. It includes a neutral and ground lug, is rated for single phase operation, and complies with heavy duty safety standards for robust protection.
- Key Specifications
- Amperage: 200A
- Voltage: 240V AC
- Poles: 2
- Phase: Single
- Switch Style: Fusible
- Enclosure Type: NEMA 12
- Mounting Type: Surface mount
- Viewing Window: Yes
- Interrupt Rating: Heavy duty
- Neutral and Ground Lugs: Included
- Manufacturer: Square D
- Part Number: VH224NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
- UPC : 060648589328
- GTIN : 03606485893280
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 17.01 in (432.05 mm) x 9.02 in (229.11 mm) (Height x Width x Depth)
- Weight : 55.1 lb
- Certification : UL listed file E2911
