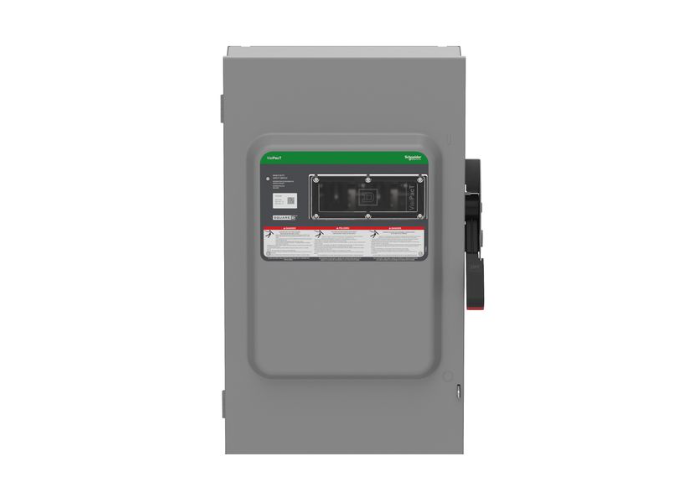

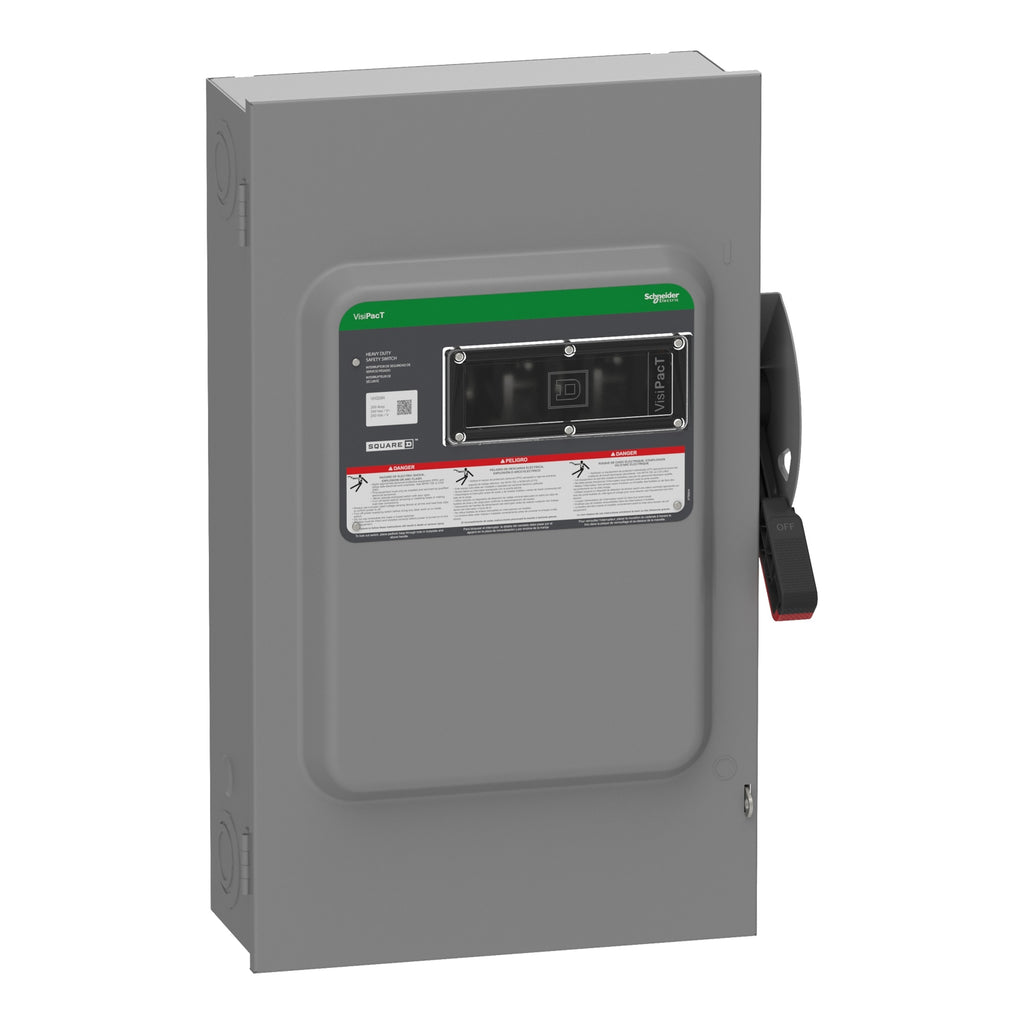

VH224N - Square D 200A 240V 2-Pole Heavy Duty Fused Safety Switch Surface Mount

VH224N

VH224N is a Square D heavy duty fused safety switch rated for 200 amps and 240 volts with 2 poles and surface mounting.VH224N features a dual cover interlock and is designed for reliable circuit protection with a fusible disconnect. It supports 240VAC and 250VDC operation and includes a viewing window for fuse status. This safety switch is suitable for industrial and commercial applications requiring robust electrical isolation and protection.

Key Specifications
• Amperage: 200 Amps
• Voltage: 240 VAC / 250 VDC
• Number of Poles: 2
• Mounting Type: Surface Mount
• Switch Type: Heavy Duty Fused Safety Switch
• Interrupt Rating: High (typical for heavy duty switches)
• Series/Frame: VH Series
• Trip Unit: Fusible
• Certifications: UL Listed (implied for Square D safety switches)
• Dual Cover Interlock Included
• Viewing Window for Fuse Status

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH224N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240 AC
• Amperage : 200
• Phase : 1
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589326
• GTIN : 03606485893266
• Country of Origin : United States
• Dimensions : 28.93 in (734.82 mm) x 16.61 in (421.89 mm) x 8.6 in (218.4 mm) (Height x Width x Depth)
• Weight : 54.5 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EU RoHS, UL listed file E2875
