Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH224DSGL

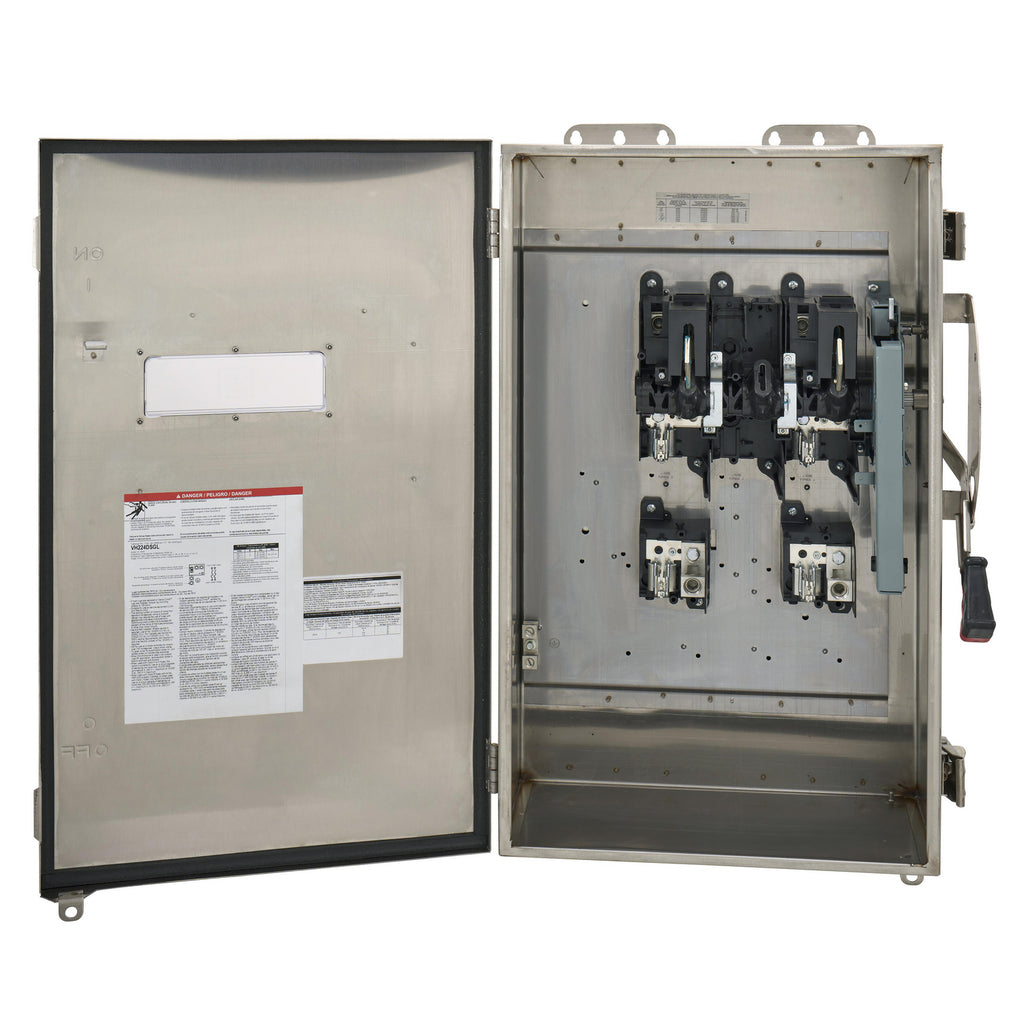

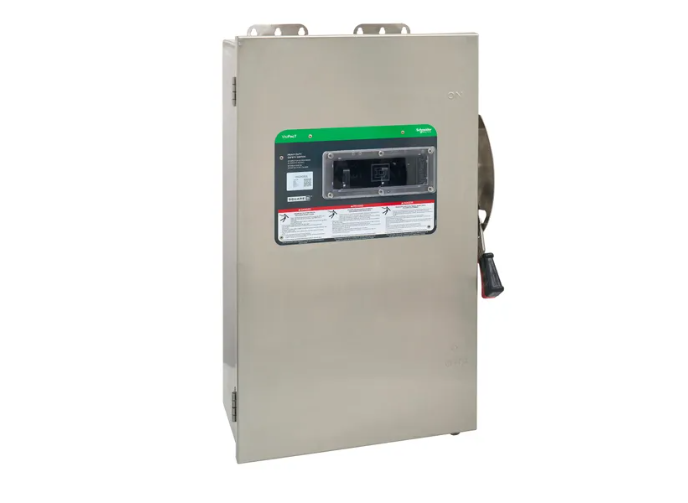

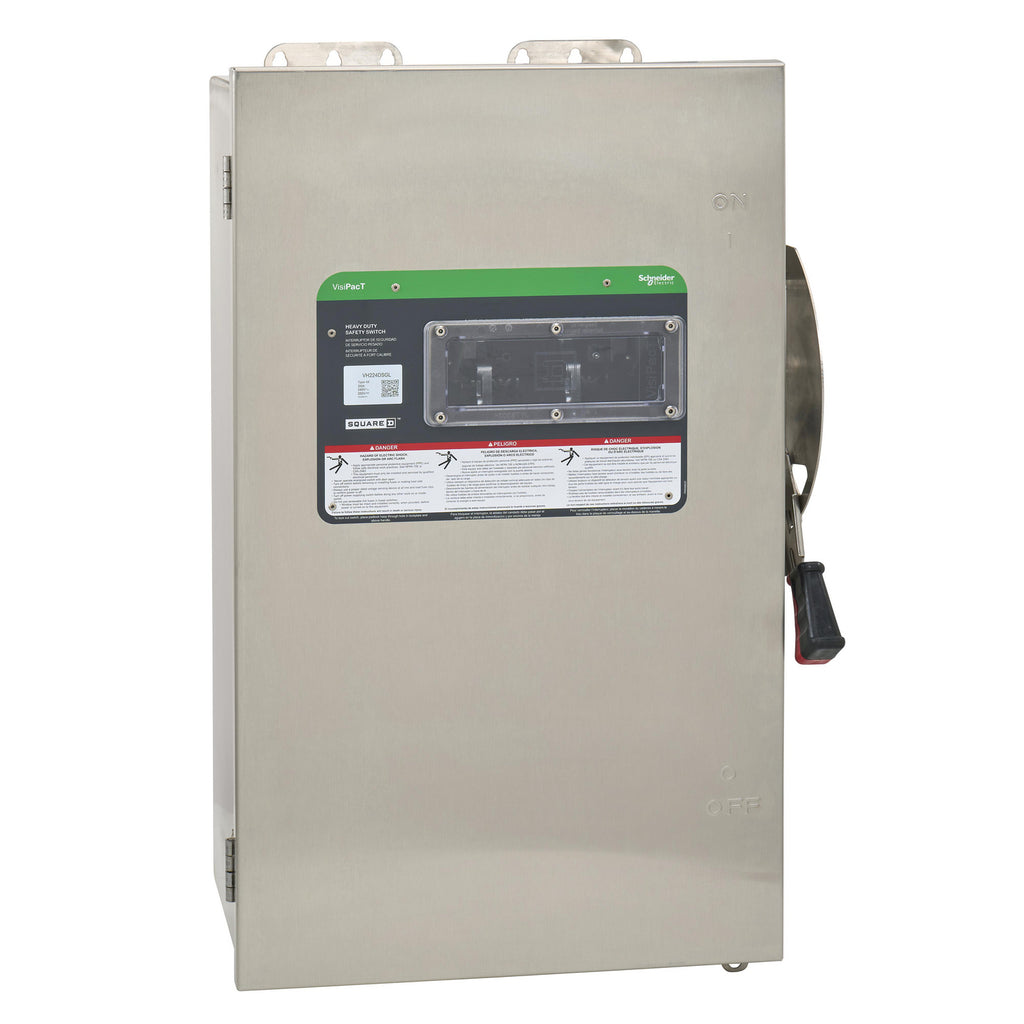

VH224DSGL is a Square D heavy duty fusible safety switch designed for reliable power distribution and protection in demanding environments.This 200 amp, 2 pole safety switch operates at 240 VAC and 250 VDC, featuring a Type 4X stainless steel enclosure for corrosion resistance and durability. It includes a factory-installed viewing window for visual confirmation of switch position without opening the door. The switch supports 15 to 60 horsepower motors at 240 VAC and has a short circuit current rating up to 200 kA depending on fuse selection. It is surface mounted with lug terminals and meets UL98 and NEMA KS1 standards.
- Key Specifications
- Amperage: 200 A
- Voltage: 240 VAC / 250 VDC
- Number of Poles: 2
- Enclosure Type: NEMA 4X stainless steel
- Mounting Type: Surface mount
- Short Circuit Current Rating: Up to 200 kA (fuse dependent)
- Horsepower Ratings: 15, 25, 40, 60 hp at 240 VAC
- Terminal Type: Lug
- Standards: UL98, NEMA KS1
- Viewing Window: Factory installed
- Material: 304 Stainless Steel
Specifications
- Part Number: VH224DSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589335
- GTIN : 03606485893358
- Country of Origin : United States
- Dimensions : 28.9 in (734.06 mm) x 17.474 in (443.840 mm) x 8.937 in (227.000 mm) (Height x Width x Depth)
- Weight : 57.1 lb
- Certification : UL listed file E2909
