Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH224BRGL

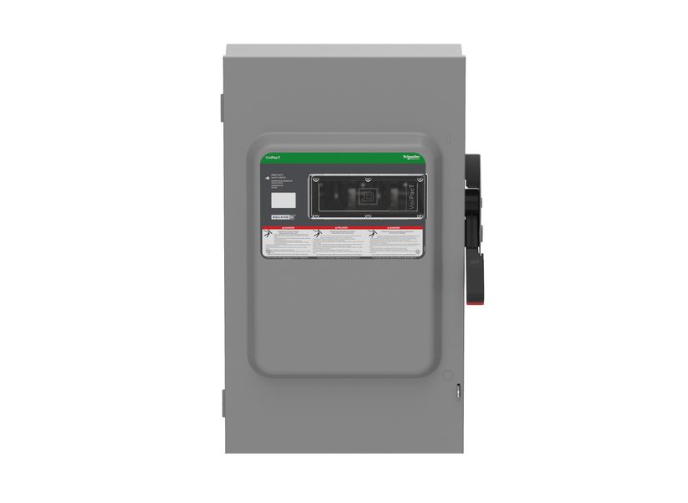

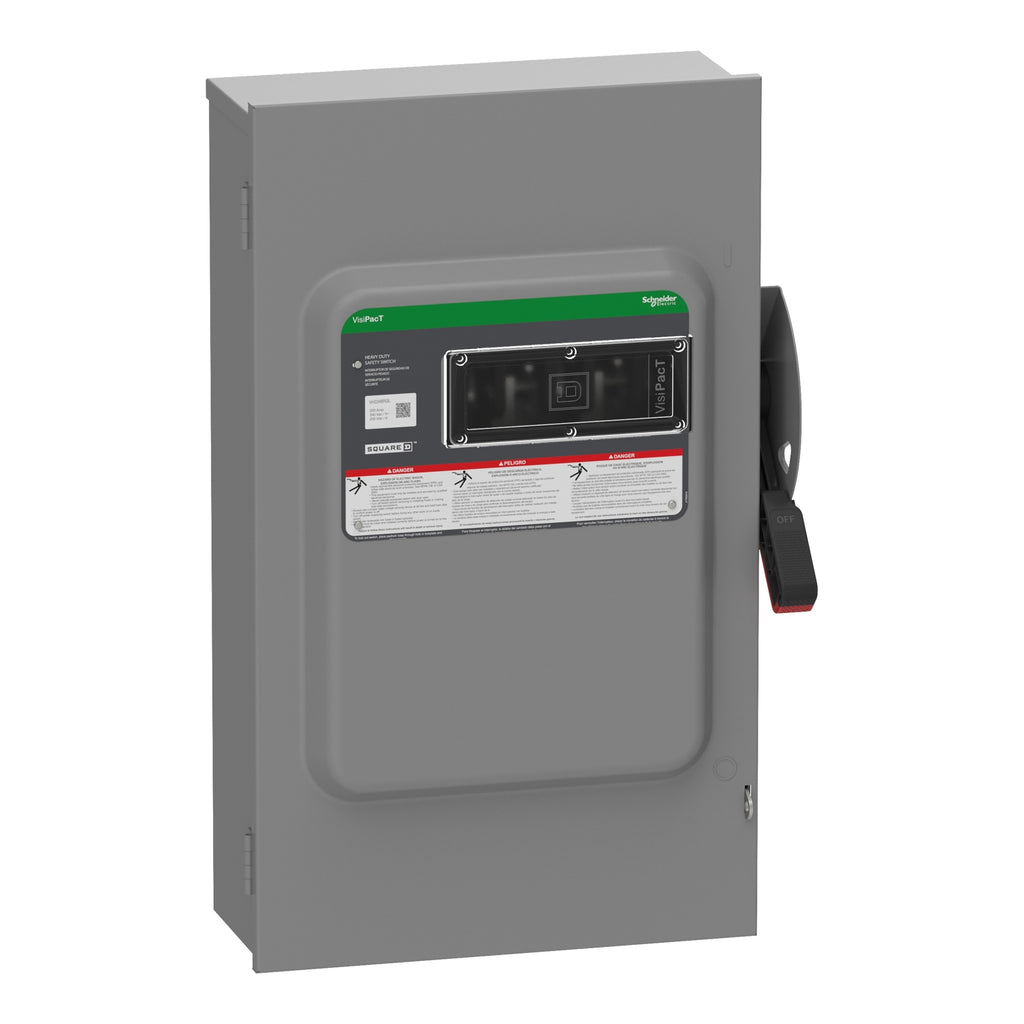

VH224BRGL is a heavy duty fusible safety switch from Square D designed for commercial and industrial applications requiring reliable disconnect and overcurrent protection. This VisiPacT series switch features a quick-make, quick-break operating mechanism with dual cover interlock and color-coded indicator handle for safe, dependable operation in demanding environments. The unit is rated 200 amperes at 240 VAC and 250 VDC with a 200 kA short circuit rating and accepts J fuse types as shipped, field modifiable for H, K, or R fuses.
- Amperage Rating: 200A
- Voltage: 240 VAC / 250 VDC
- Poles: 2 Pole
- Enclosure Type: NEMA 3R
- Fuse Type: J (field modifiable to H, K, R)
- Mounting: Surface Mount
- Wire Range: AWG 6 to 250 kcmil (aluminum and copper)
- Viewing Window: Factory installed
- Neutral: Factory bonded to enclosure
- Equipment Ground Lugs: Factory installed
- Certifications: UL 98, NEMA KS1, UL Files E2875 and E154828
- Country of Origin: United States
Specifications
- Part Number: VH224BRGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589331
- GTIN : 03606485893310
- Country of Origin : United States
- Dimensions : 28.94 in (735.08 mm) x 17.016 in (432.206 mm) x 8.506 in (216.052 mm) (Height x Width x Depth)
- Weight : 54.5 lb
- Certification : UL listed file E2908
