Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH224BGL

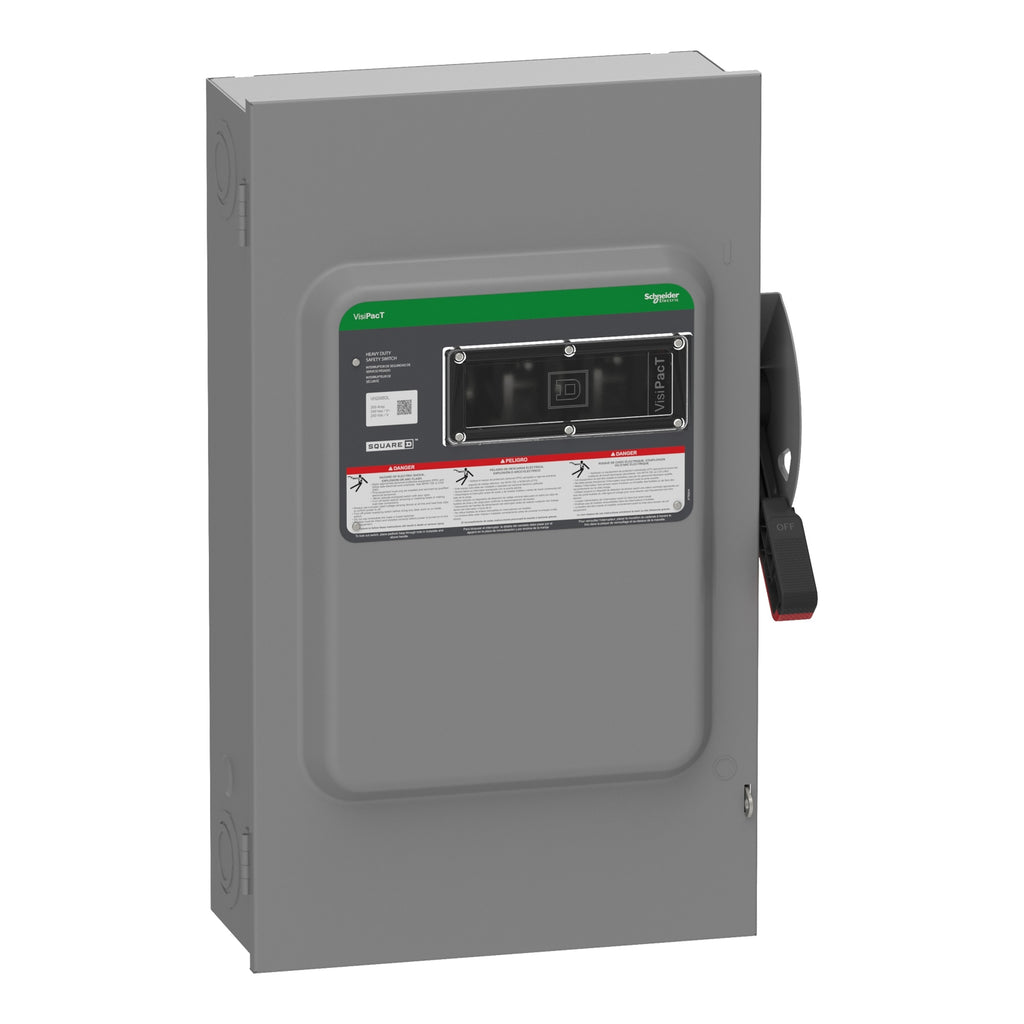

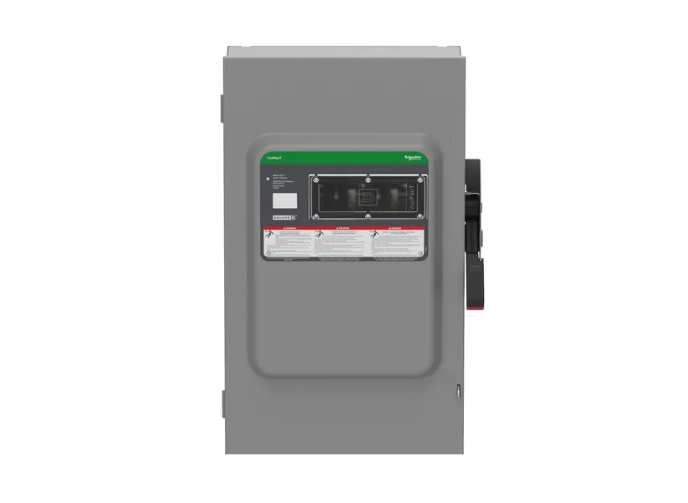

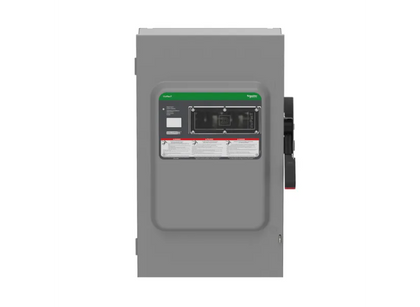

VH224BGL is a Square D 200A 240V 2-pole fusible heavy duty safety switch designed for reliable circuit isolation and protection.VH224BGL features a NEMA 1 enclosure with a viewing window, neutral bonded and ground lugs, and is part of the VH series. It supports single-phase 240 VAC and 250 VDC applications with a short circuit interrupt rating suitable for heavy duty use. This switch uses J-type fuses and is engineered for durability and safety in industrial and commercial electrical systems.
- Key Specifications
- Amperage: 200A
- Voltage: 240 VAC / 250 VDC
- Poles: 2
- Enclosure: NEMA 1
- Fuse Type: J-type
- Series/Frame: VH
- Mounting Type: Surface mount
- Interrupt Rating: Heavy duty short circuit rating
- Neutral bonded and ground lugs included
- Viewing window for fuse status
- Phase: Single-phase
Specifications
- Part Number: VH224BGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589330
- GTIN : 03606485893303
- Country of Origin : United States
- Dimensions : 28.93 in (734.82 mm) x 16.61 in (421.89 mm) x 8.6 in (218.4 mm) (Height x Width x Depth)
- Weight : 54.5 lb
- Certification : UL listed file E2907
