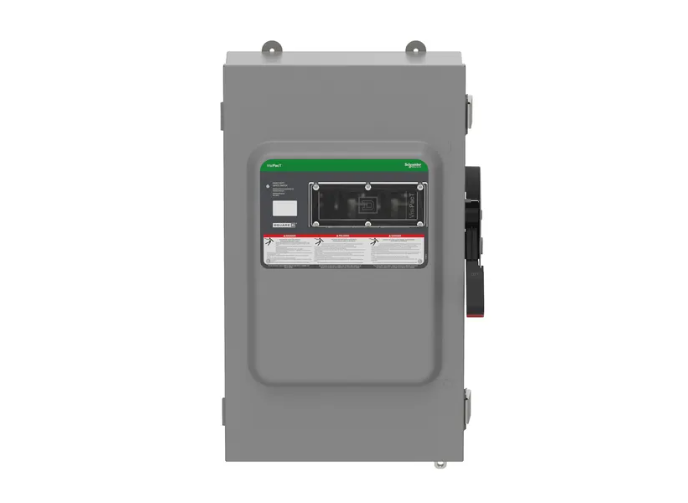

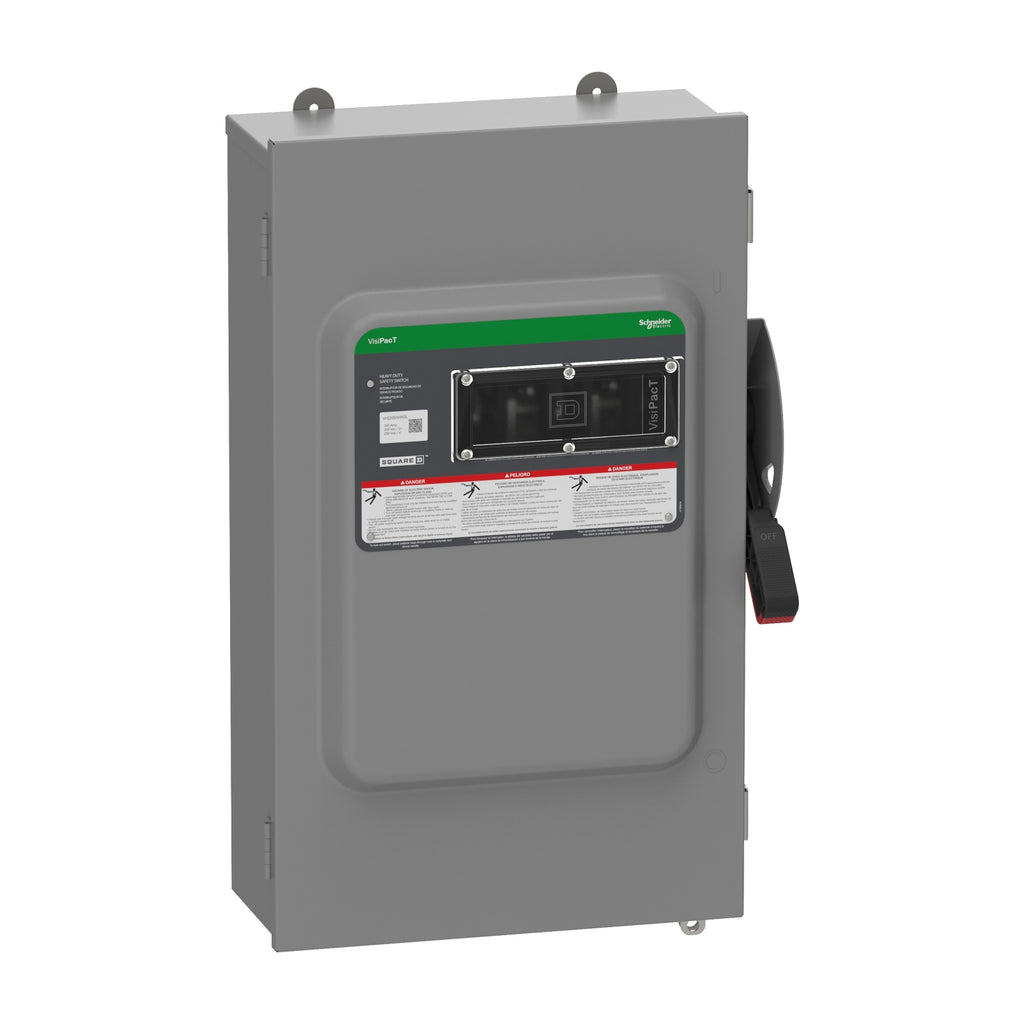

VH224BAWKGL - Square D Heavy Duty Fusible Safety Switch 200A 240V 2 Pole NEMA 12 Viewing Window

VH224BAWKGL

VH224BAWKGL is a Square D heavy duty fusible safety switch designed for reliable power distribution and protection.This safety switch features a 200 ampere rating with 240 VAC and 250 VDC voltage capabilities. It has two poles and comes with a NEMA 12 enclosure rating, making it suitable for indoor use in industrial environments. The switch includes a viewing window for visual confirmation of the switch position without opening the door, a neutral bonded configuration, and ground lugs. It supports motor loads up to 15 HP at 240 V single-phase and up to 60 HP at 240 V three-phase. The quick make, quick break operating mechanism enhances safety and durability. The dual cover interlock prevents the cover from opening when the switch is on and prevents switching on when the cover is open.

• Manufacturer: Square D (Schneider Electric)
• Amperage: 200A
• Voltage: 240 VAC / 250 VDC
• Poles: 2
• Enclosure: NEMA 12
• Fusible disconnect switch
• Viewing window for switch status
• Neutral bonded with ground lugs
• Quick make, quick break mechanism
• Suitable for service entrance with neutral assembly or grounding kit
• Motor ratings: 15 HP single-phase, 60 HP three-phase at 240 V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH224BAWKGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• Fuse Class : J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12

Product Data

• UPC : 060648589332
• GTIN : 03606485893327
• Country of Origin : United States
• Dimensions : 28.93 in (734.82 mm) x 17.01 in (432.05 mm) x 9.02 in (229.11 mm) (Height x Width x Depth)
• Weight : 55.1 lb
• Certification : UL listed file E2906
