VH223NDSGL - Square D 100A 2-Pole Fusible Heavy Duty Safety Switch 240VAC 250VDC NEMA 4X Surface Mount

VH223NDSGL

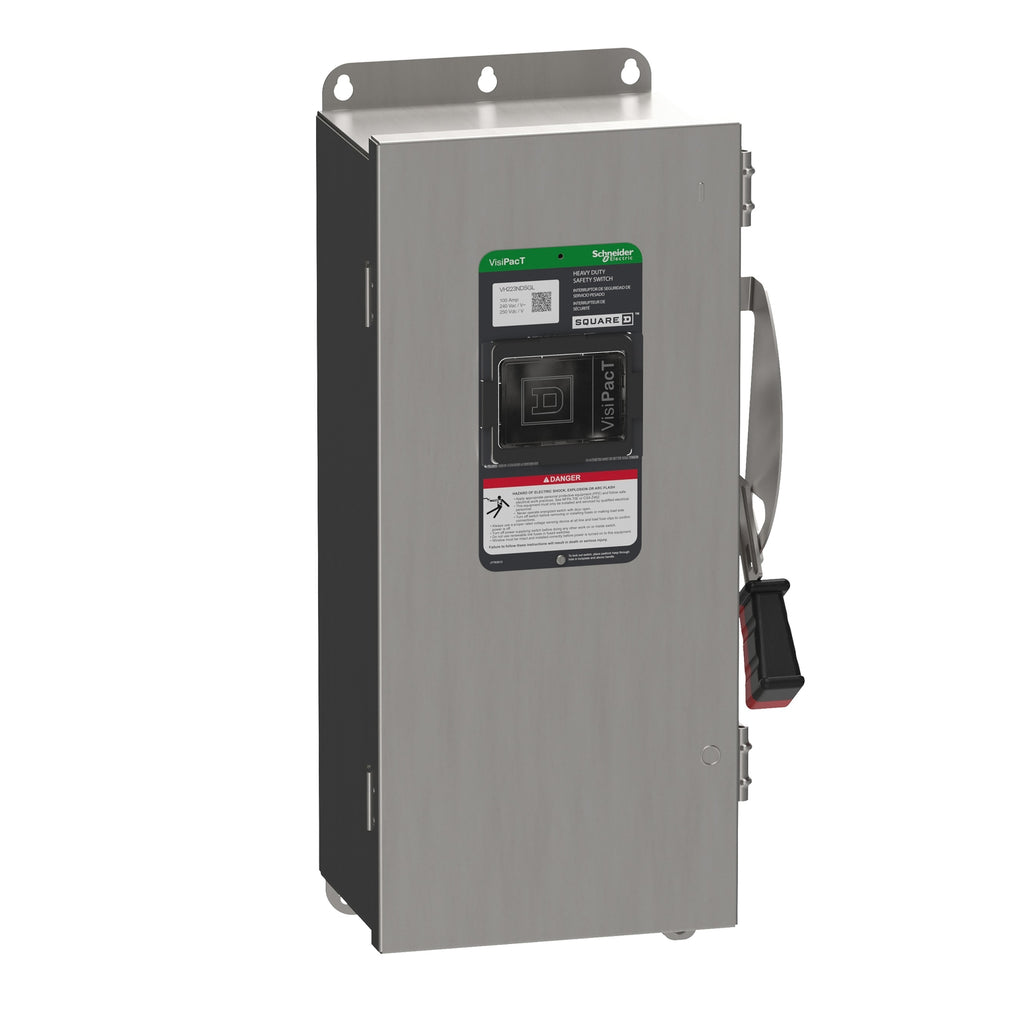

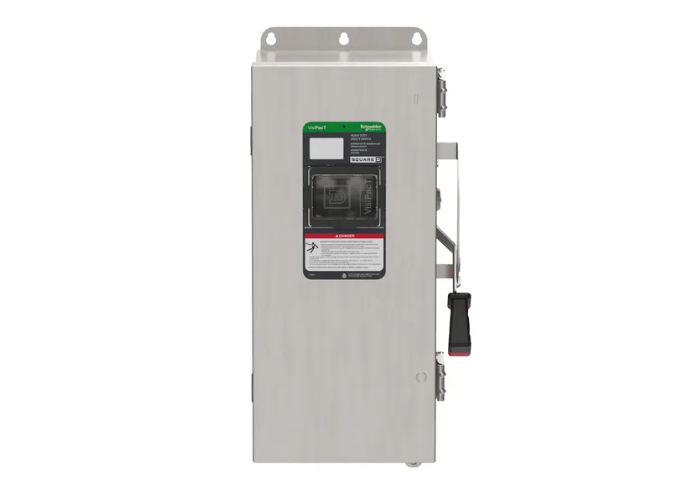

VH223NDSGL is a Square D heavy duty fusible safety switch rated for 100 amps and 240 VAC/250 VDC operation with a 2-pole configuration.

This safety switch features a NEMA 4X enclosure made of 304 stainless steel, suitable for surface mounting. It includes a viewing window for visual confirmation of switch position with the door closed, lug-type terminals, and is rated for motor horsepower up to 30 HP at 240 VAC. The switch supports 1- and 3-phase applications and has a short circuit current rating of up to 200 kA. It is designed for reliable service entrance or disconnect applications with a handle actuator and heavy duty construction.

Key Specifications
• Amperage: 100 A
• Voltage: 240 VAC / 250 VDC
• Poles: 2
• Enclosure: NEMA 4X, 304 Stainless Steel
• Mounting Type: Surface
• Short Circuit Current Rating: 10, 200 kA
• Horsepower Ratings: 7.5, 15, 20, 30 HP at 240 VAC
• Phase: 1 and 3 Phase
• Terminal Type: Lug
• Actuator Type: Handle
• Switch Style: Fusible Disconnect

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH223NDSGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 4X

Product Data

• UPC : 060648589319
• GTIN : 03606485893198
• Country of Origin : United States
• Dimensions : 20.73 in (526.54 mm) x 9.336 in (237.134 mm) x 7.2 in (182.9 mm) (Height x Width x Depth)
• Weight : 22.333 lb
• Certification : UL listed file E2903
