Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH223NAWKGL

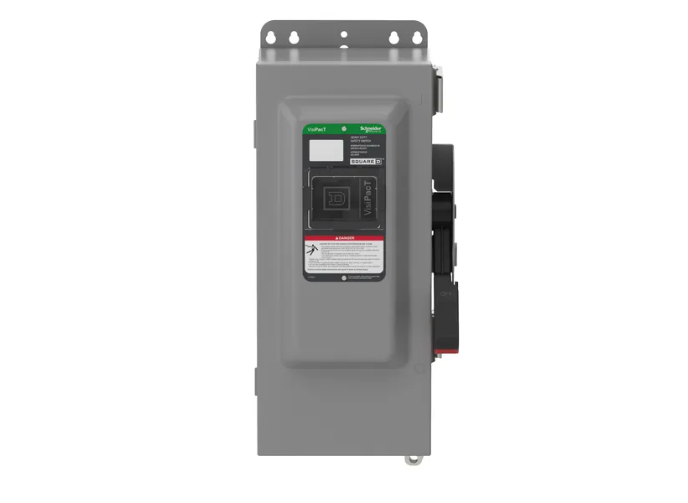

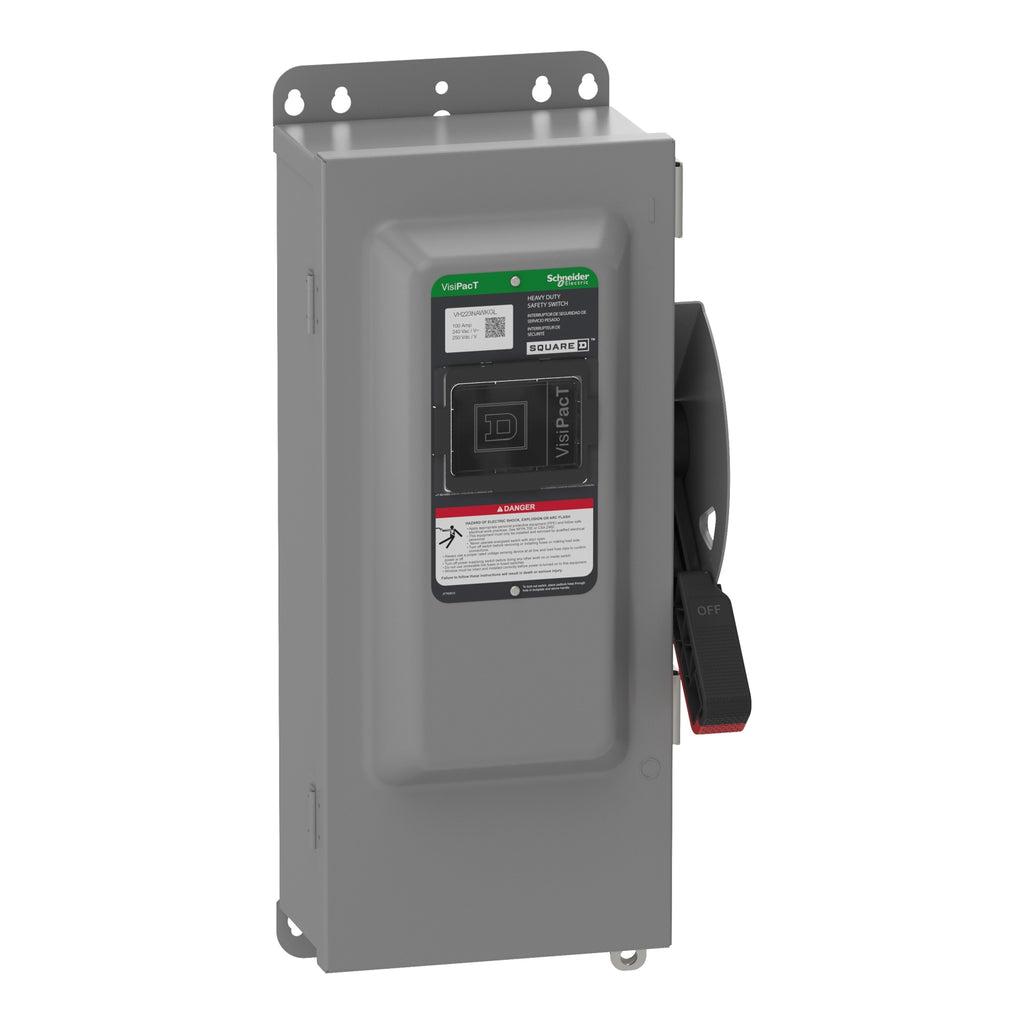

VH223NAWKGL is a Square D heavy duty fusible safety switch rated for 100 amps and 240 volts with 2 poles and NEMA 12 enclosure.This fusible safety switch features a viewing window for quick visual verification of switch position, a neutral installed, and ground lugs. It is designed for heavy duty applications to isolate power safely and effectively interrupt power in emergencies. The switch supports both 240 VAC and 250 VDC operation and includes a short circuit interrupt rating suitable for industrial use.
- Amperage: 100 Amps
- Voltage: 240 VAC / 250 VDC
- Poles: 2
- Switch Style: Fusible
- Enclosure: NEMA 12
- Neutral Installed
- Ground Lugs Included
- Viewing Window for Switch Position
- Heavy Duty Construction
- Manufacturer: Square D (Schneider Electric)
- Short Circuit Interrupt Rating: Heavy Duty
Specifications
- Part Number: VH223NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589318
- GTIN : 03606485893181
- Country of Origin : United States
- Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : UL listed file E2902
