Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH223N

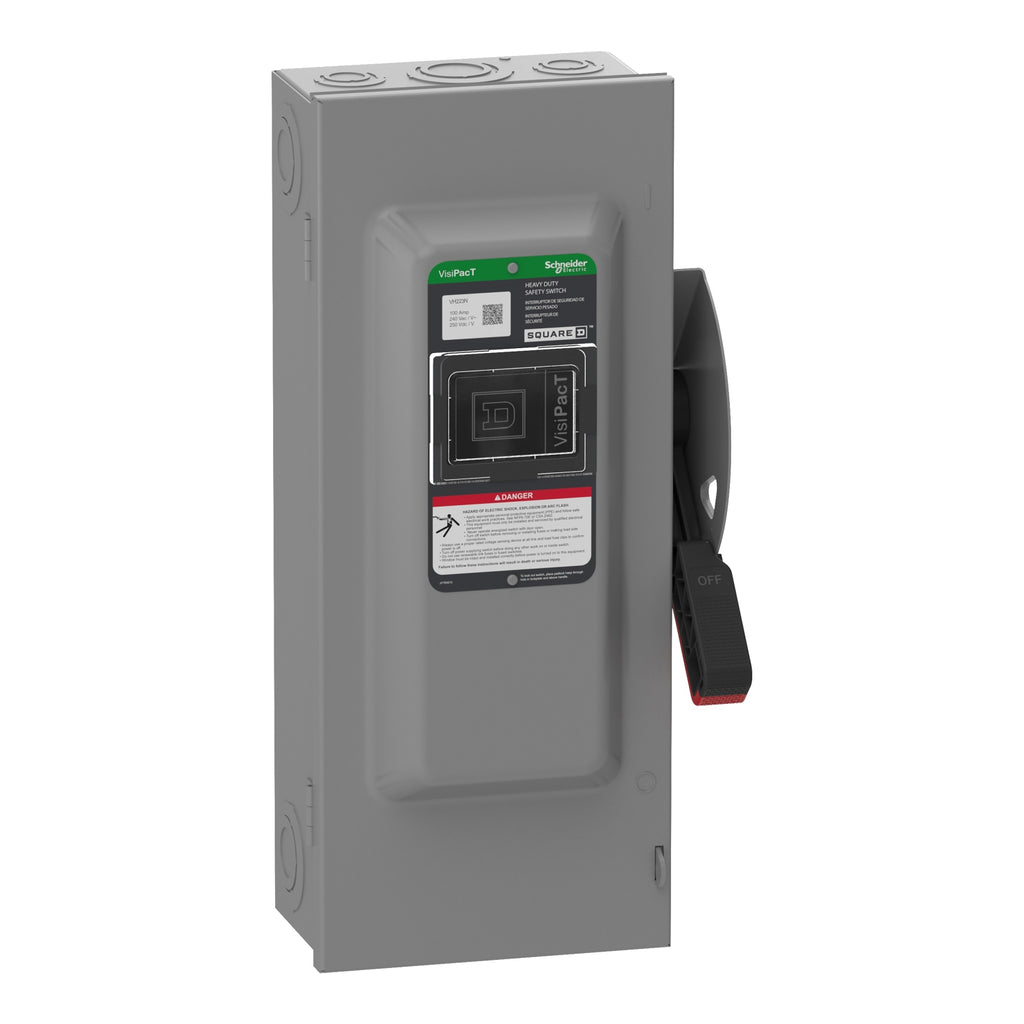

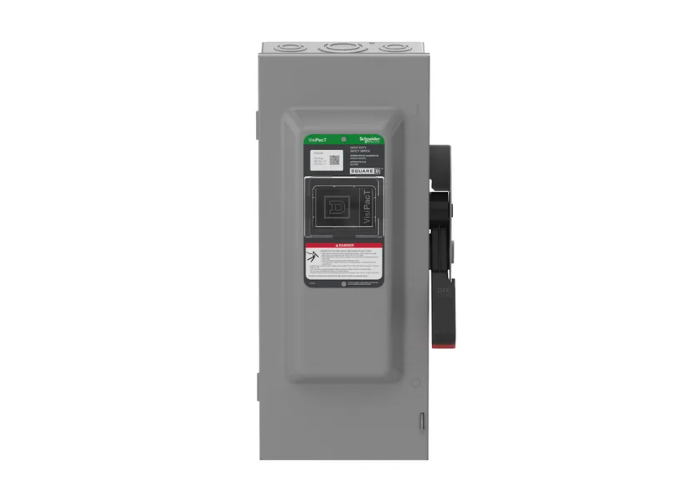

VH223N is a heavy duty fusible safety switch from Square D designed for reliable power distribution and protection.This 2-pole safety switch is rated for 100 amps and 240VAC/250VDC operation. It features a fusible design with a viewing window and dual cover interlock for enhanced safety. The switch is surface mounted and has a short circuit interrupt rating of 10 kA. It is suitable for heavy duty industrial applications requiring robust disconnect capabilities.
- Manufacturer: Square D
- Part Number: VH223N
- Poles: 2
- Amperage: 100A
- Voltage: 240VAC / 250VDC
- Mounting Type: Surface
- Interrupt Rating: 10 kA
- Switch Style: Fusible
- Includes Dual Cover Interlock
- Viewing Window for Fuse Status
- Heavy Duty Series
Specifications
- Part Number: VH223N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 100
- Phase : 1
- Poles : 2
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589316
- GTIN : 03606485893167
- Country of Origin : United States
- Dimensions : 21.84 in (554.74 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
- Weight : 17.311 lb
- Certification : EU RoHS, UL listed file E2875
