Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH223BRBGL

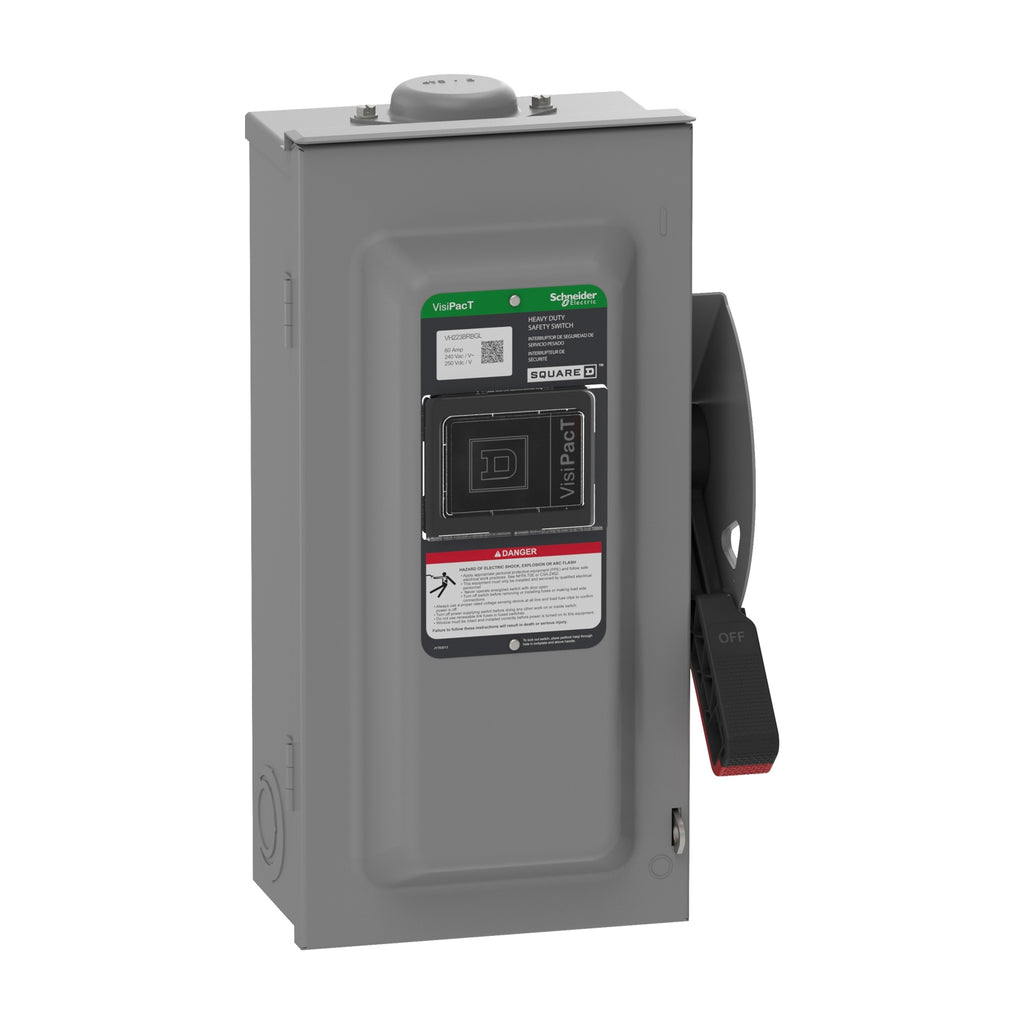

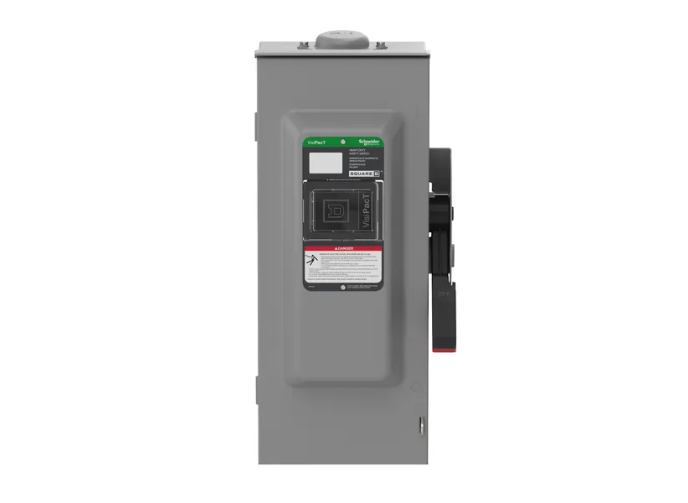

VH223BRBGL is a heavy-duty fusible safety switch designed for reliable electrical circuit isolation in industrial and commercial applications. This Square D model features a 2-pole, 100A configuration with a NEMA 3R enclosure for outdoor or harsh environment use. Engineered for safety and durability, the VH223BRBGL includes a fused disconnect with a viewing window, bonded neutral, and ground lugs. It is suitable for 240V AC and 250V DC circuits, providing a robust solution for power distribution and equipment protection.
- Part Number: VH223BRBGL
- Manufacturer: Square D
- Amperage: 100A
- Voltage: 240V AC, 250V DC
- Poles: 2
- Mounting Type: Surface Mount
- Interrupt Rating: 100kA
- Series/Frame: VH
- Switch Style: Fusible
- Enclosure: NEMA 3R
- Neutral: Bonded
- Ground Lugs: Yes
Specifications
- Part Number: VH223BRBGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589321
- GTIN : 03606485893211
- Country of Origin : United States
- Dimensions : 22.103 in (561.416 mm) x 9.08 in (230.63 mm) x 7.019 in (178.283 mm) (Height x Width x Depth)
- Weight : 19.8 lb
- Certification : UL listed file E2899
