Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH223BGL

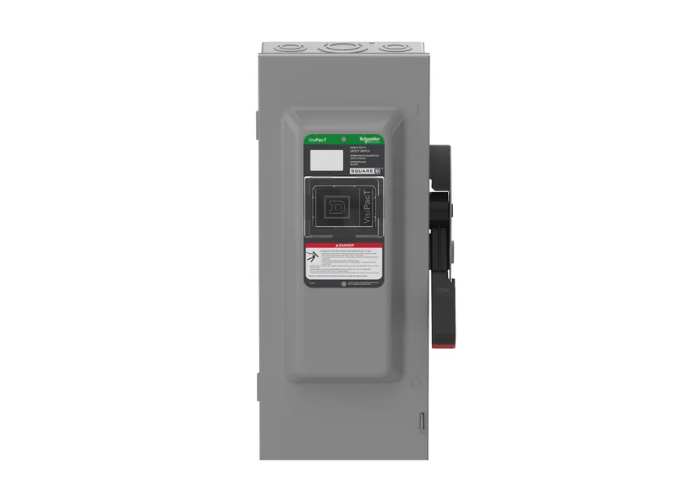

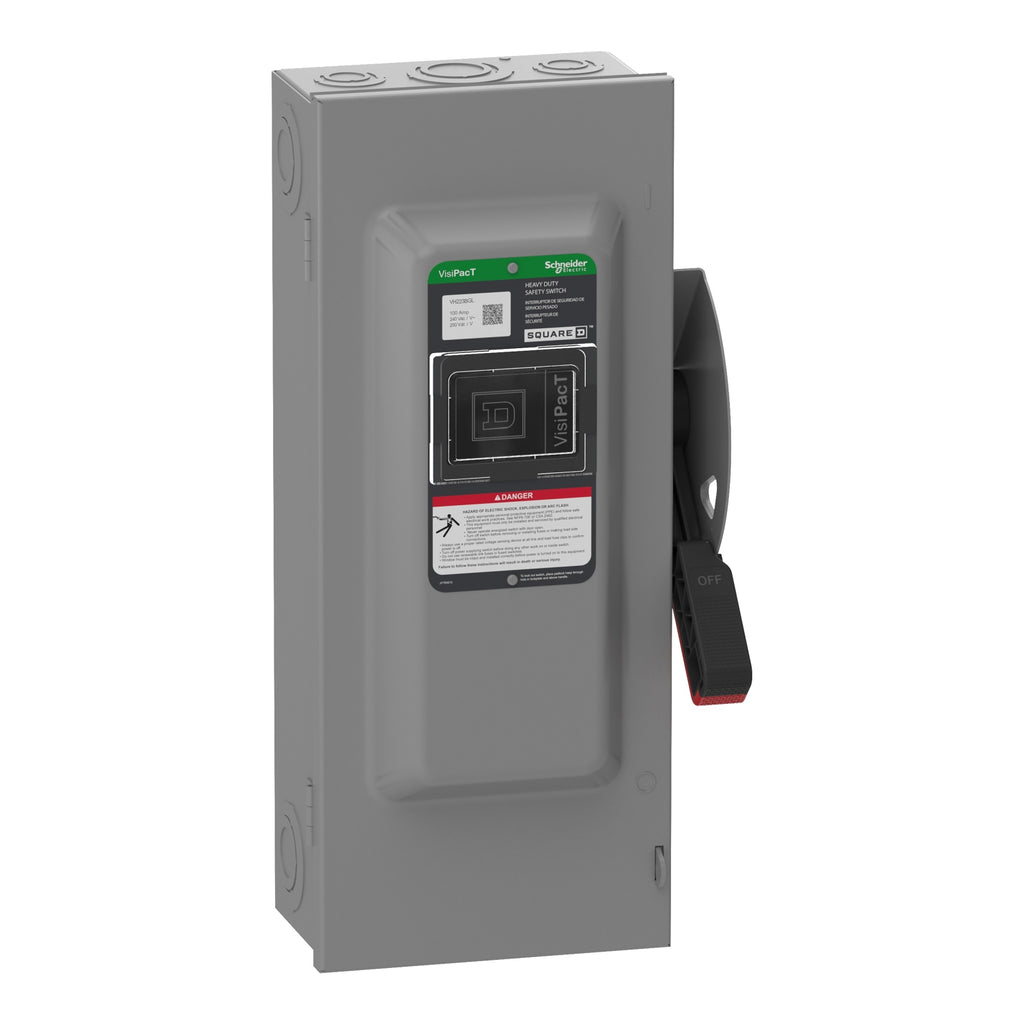

VH223BGL is a heavy duty fusible safety switch designed for reliable circuit protection and service entrance applications. This Square D model features a robust construction and a viewing window for visual confirmation of switch position. The VH223BGL is a two-pole, 100 amp fusible safety switch rated for 240V AC and 250V DC. It is suitable for both single-phase and three-phase motor loads and includes neutral bonded and ground lugs for added safety. The switch is NEMA 1 rated for indoor use and is ideal for service entrance installations when equipped with the appropriate neutral assembly or grounding kit.
- Part Number: VH223BGL
- Manufacturer: Square D
- Amperage: 100A
- Voltage: 240V AC, 250V DC
- Poles: 2
- Mounting Type: Surface
- Enclosure NEMA Rating: 1
- Switch Style: Fusible
- Neutral Bonded: Yes
- Ground Lugs: Yes
- Viewing Window: Yes
- Motor Ratings: 7.5 hp (1-phase), 15 hp (3-phase) at 240V AC; 20 hp at 250V DC
Specifications
- Part Number: VH223BGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589320
- GTIN : 03606485893204
- Country of Origin : United States
- Dimensions : 21.84 in (554.74 mm) x 8.91 in (226.31 mm) x 7.04 in (178.82 mm) (Height x Width x Depth)
- Weight : 19.8 lb
- Certification : UL listed file E2898
