Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH223BDSGL

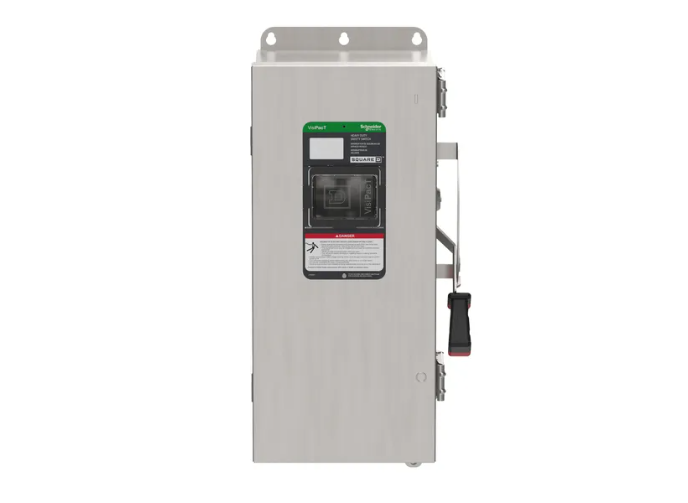

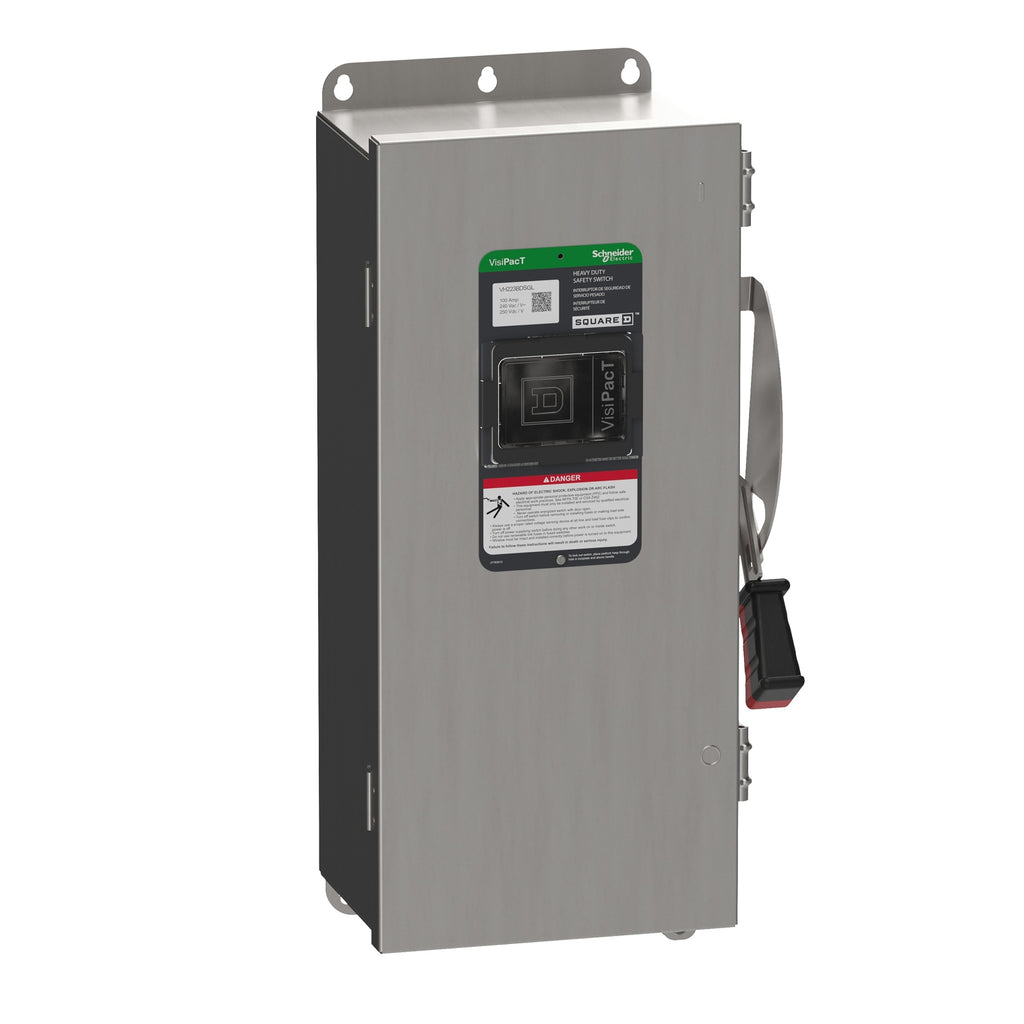

VH223BDSGL is a heavy duty fusible safety switch from Square D designed for reliable electrical disconnection in industrial and commercial applications. This VisiPacT series switch features a viewing window for visual confirmation of switch state with the door closed, allowing quick verification of operational status. The unit is constructed with stainless steel 304 enclosure rated NEMA 4X and includes neutral bonded and ground lugs for proper grounding and bonding connections.
- Amperage Rating: 100 Amps
- Voltage Rating: 240 VAC, 250 VDC
- Number of Poles: 2
- Enclosure Type: NEMA 4X Stainless Steel 304
- Configuration: Fusible Disconnect Switch
- Motor Power: 7.5 hp at 240V AC for 1 phase, 15 hp at 240V AC for 3 phase
- Features: VisiPacT viewing window, neutral bonded, ground lugs
- Mechanical Endurance: Three times greater than NEMA standards
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
Specifications
- Part Number: VH223BDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VHVH
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589323
- GTIN : 03606485893235
- Country of Origin : United States
- Dimensions : 20.73 in (526.54 mm) x 9.336 in (237.134 mm) x 7.2 in (182.9 mm) (Height x Width x Depth)
- Weight : 13.2
- Certification : UL listed file E2897
