Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH223BAWKGL

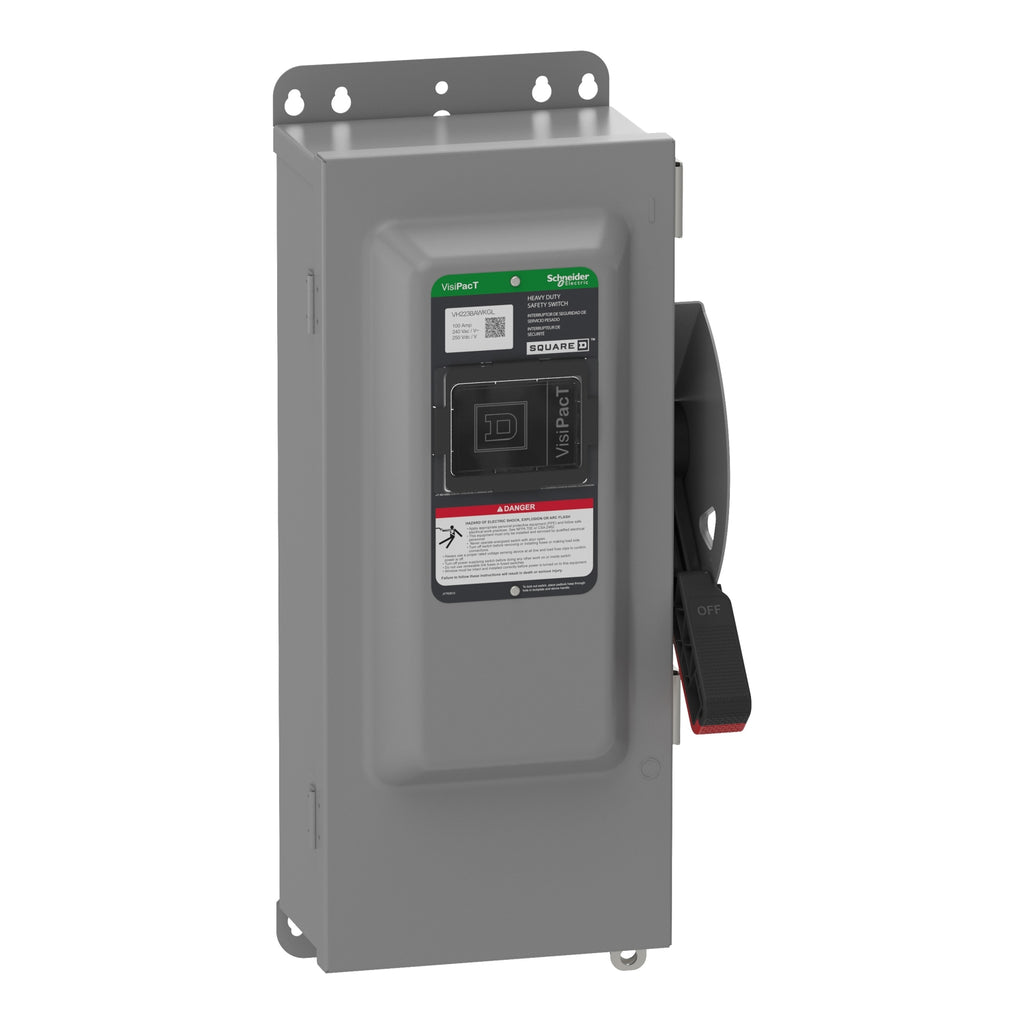

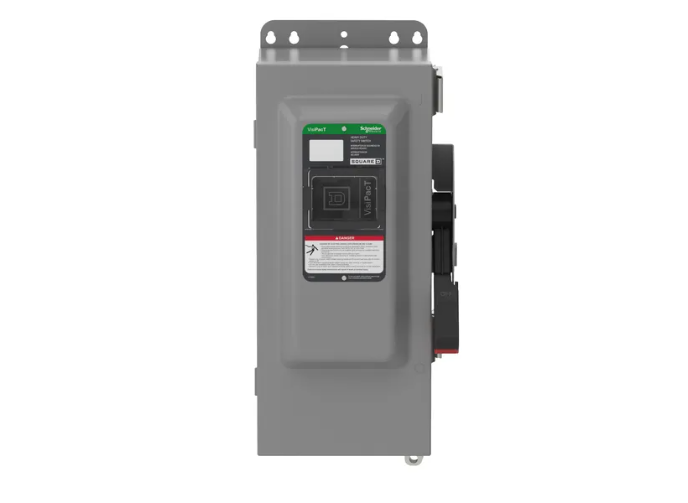

VH223BAWKGL is a heavy duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications. This Square D VisiPacT switch features a viewing window for visual confirmation of switch state, neutral bonding, and ground lugs for added safety and compliance. The VH223BAWKGL is rated for 100 amps, 240 volts AC, and 250 volts DC, with a two-pole configuration. It is constructed with a NEMA 12 galvannealed steel enclosure for durability and protection against dust and non-corrosive liquids. The switch is suitable for service entrance applications when equipped with the proper neutral assembly or grounding kit.
- 100A continuous current rating
- 240V AC / 250V DC maximum voltage
- 2 pole configuration
- NEMA 12 galvannealed steel enclosure
- Viewing window for switch state confirmation
- Neutral bonded
- Ground lugs included
- Surface mounting
- Fuse type: J
- 7.5 hp at 240V AC for 1-phase motors
- 15 hp at 240V AC for 3-phase motors
- 20 hp at 250V DC
Specifications
- Part Number: VH223BAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589322
- GTIN : 03606485893228
- Country of Origin : United States
- Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
- Weight : 20.9 lb
- Certification : UL listed file E2896
