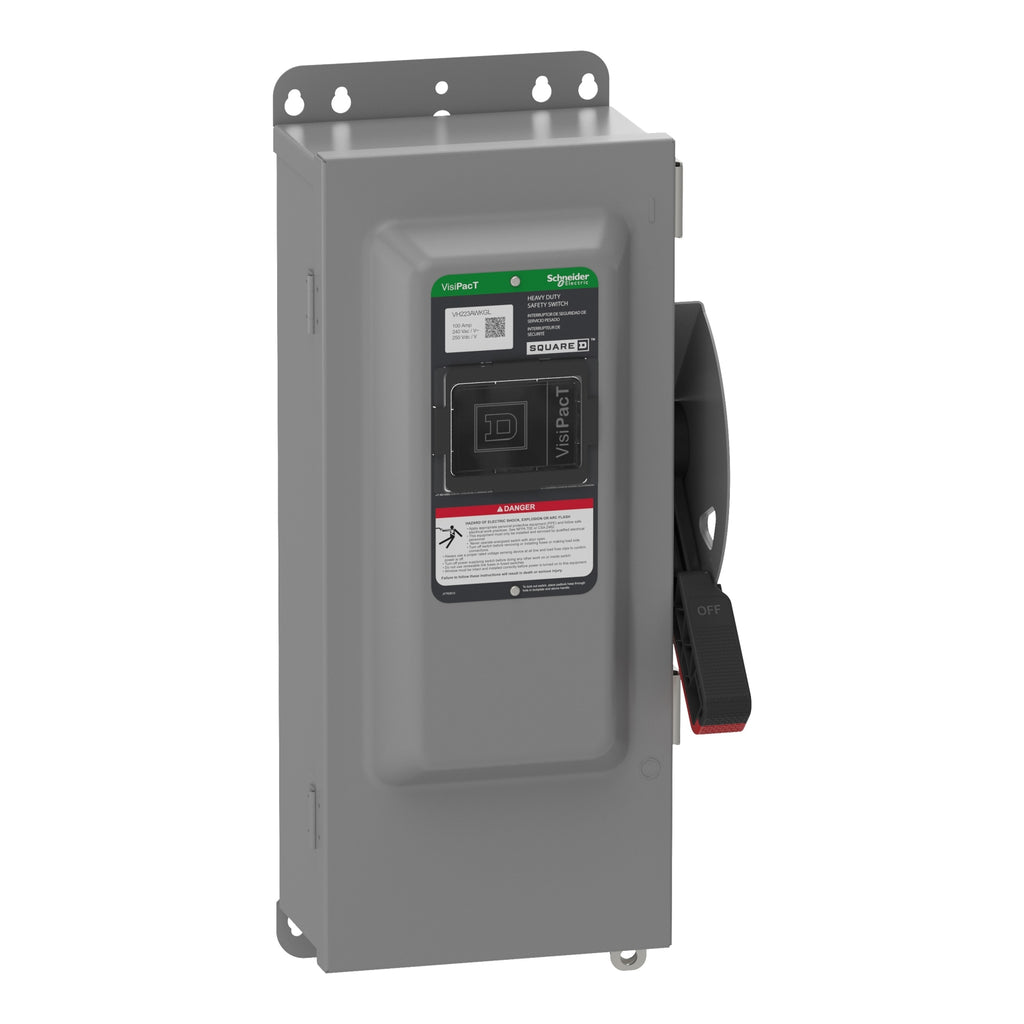

VH223AWKGL - Square D 100A 240V 2-Pole Heavy Duty Safety Switch NEMA 12 Fusible with Viewing Window

VH223AWKGL

VH223AWKGL is a Square D heavy duty safety switch rated for 100 amps and 240 volts AC with 2 poles and NEMA 12 enclosure.This fusible safety switch features a viewing window, dual cover interlock, and is constructed with galvannealed steel for durability. It supports 250 VDC and 240 VAC operation, suitable for motor loads up to 15 hp at 240 V. The switch is surface mountable and has a short circuit current rating of 10 kA.

Key Specifications
• Amperage: 100 Amps
• Voltage: 240 VAC / 250 VDC
• Number of Poles: 2 Pole
• Mounting Type: Surface Mount
• Interrupt Rating: 10 kA
• Enclosure: NEMA 12 Galvannealed Steel
• Type: Heavy Duty Fusible Safety Switch
• Viewing Window: Yes
• Dual Cover Interlock: Yes
• Motor HP Rating: 7.5 HP (1 phase), 15 HP (3 phase) at 240 V
• Manufacturer: Square D (Schneider Electric)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: VH223AWKGL
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 12



Product Data

• UPC : 060648589324
• GTIN : 03606485893242
• Country of Origin : United States
• Dimensions : 20.49 in (520.45 mm) x 8.92 in (226.57 mm) x 7.15 in (181.61 mm) (Height x Width x Depth)
• Weight : 20.9 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : UL listed file E2895
