Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH222NRB

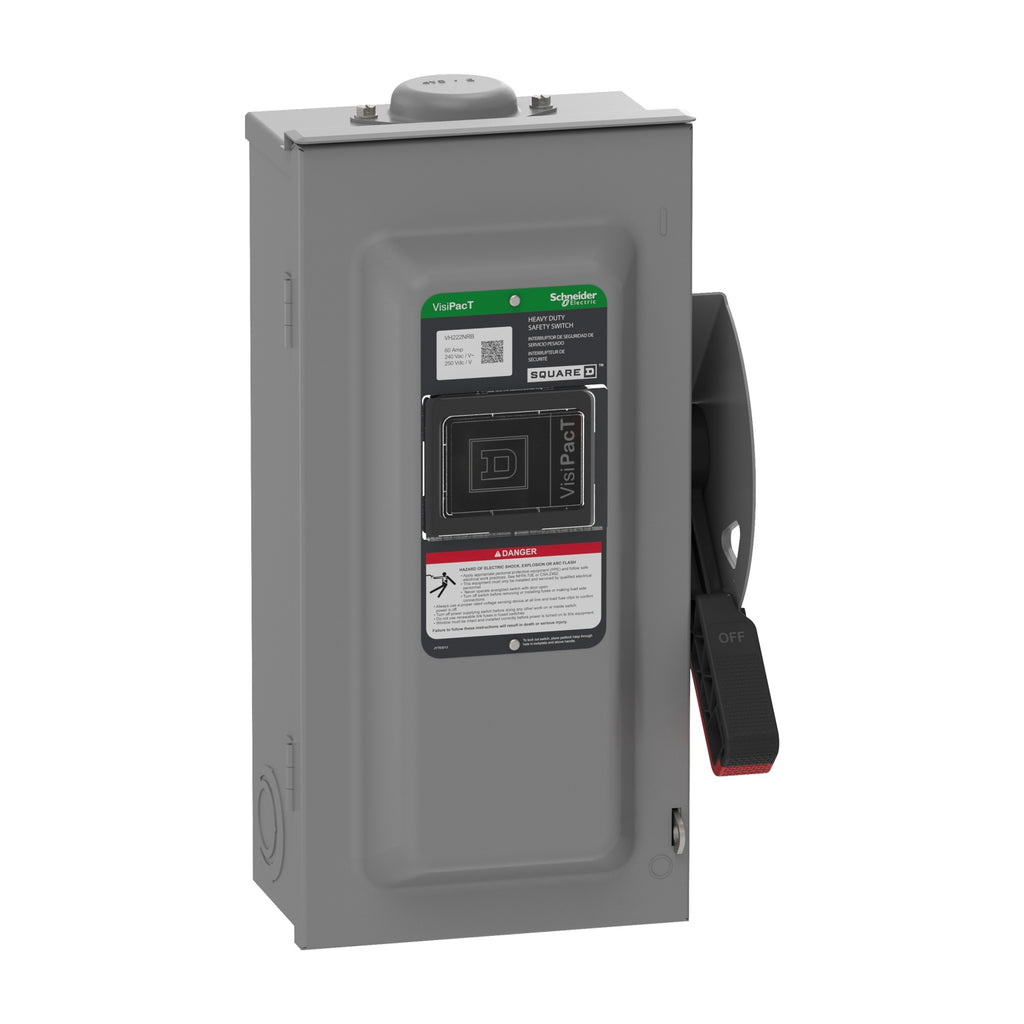

VH222NRB is a Square D heavy duty fusible safety switch rated for 60 Amps and 240 Volts AC with 2 poles and NEMA 3R enclosure.VH222NRB features a dual cover interlock, viewing window, and is designed for reliable performance in demanding environments. It supports 250 VDC rating and includes a neutral. This switch is fusible with a short circuit interrupt rating suitable for heavy duty applications.
- Amperage: 60 Amps
- Voltage: 240 VAC / 250 VDC
- Number of Poles: 2
- Mounting Type: Heavy Duty Safety Switch
- Interrupt Rating: Fusible with short circuit rating
- Series/Frame: VisiPacT
- Enclosure: NEMA 3R
- Features: Dual cover interlock, viewing window
- Neutral: Installed
- Country of Origin: USA
- Certifications: Meets applicable safety standards
Specifications
- Part Number: VH222NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 60
- Phase : 1
- Poles : 2
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
Product Data
- UPC : 060648589307
- GTIN : 03606485893075
- Country of Origin : United States
- Dimensions : 14.843 in (377.012 mm) x 6.62 in (168.15 mm) x 5.106 in (129.692 mm) (Height x Width x Depth)
- Weight : 8.8 lb
- Certification : EU RoHS, UL listed file E2875
