Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH222NAWKGL

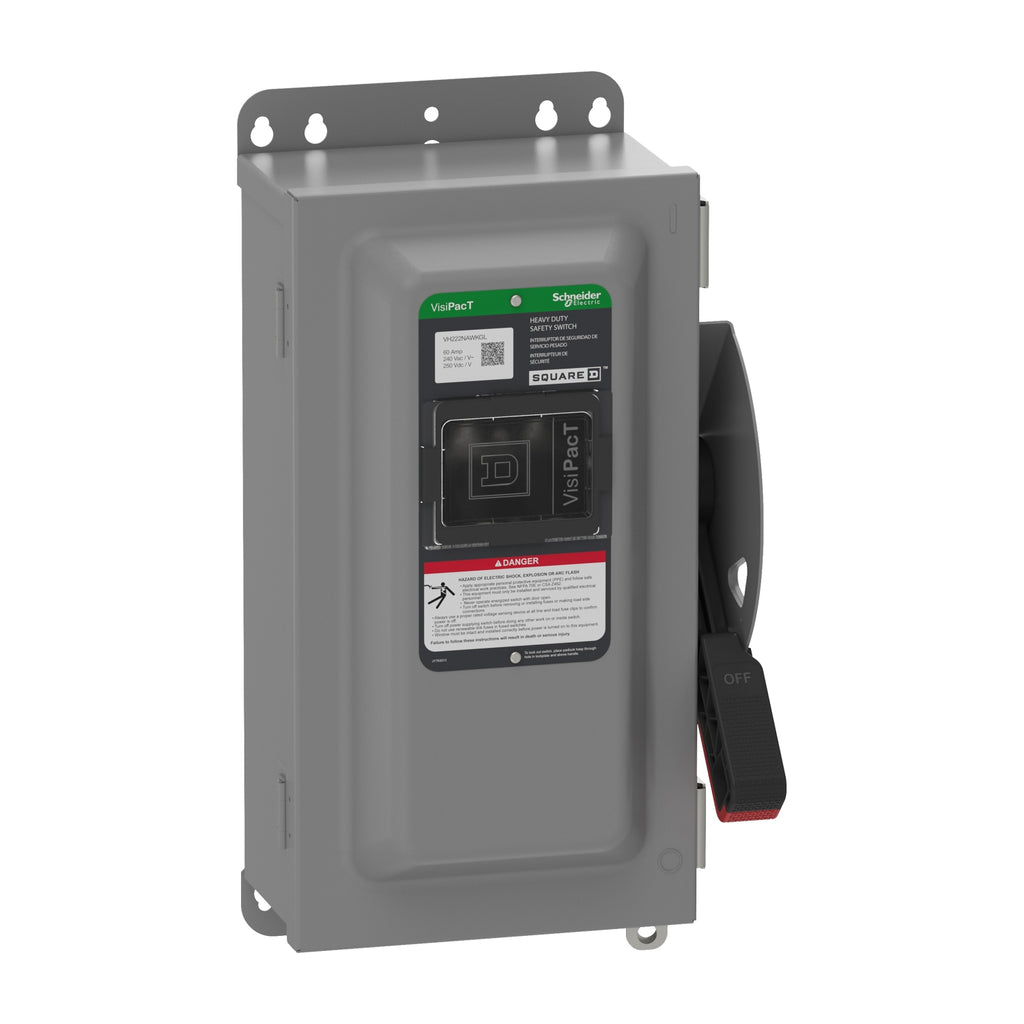

VH222NAWKGL is a heavy duty fusible safety switch from Square D designed for industrial and commercial power distribution applications requiring reliable load isolation and emergency shutdown capability. This two-pole disconnect switch features VisiPacT technology with a viewing window for visual confirmation of switch position, allowing operators to verify the switch state without opening the enclosure door. The unit is rated for 60 amperes at 240 VAC and 250 VDC, making it suitable for single-phase motor control and general power distribution circuits. Built with galvanized steel construction and housed in a NEMA 12 rated enclosure, the switch provides protection against dust and moisture ingress typical in industrial environments. The fusible design includes neutral assembly pre-installed and ground lugs for proper grounding. Mechanical endurance is engineered to exceed NEMA standards by three times, ensuring long service life in demanding applications. The switch is UL listed under file E2875 and complies with EU RoHS standards.
- Amperage Rating: 60 Amps
- Voltage Rating: 240 VAC / 250 VDC
- Number of Poles: 2 (Two-Pole)
- Enclosure Rating: NEMA 12
- Switch Type: Fusible Disconnect
- Series: VisiPacT Heavy Duty
- Mounting Style: Surface
- Features: Viewing Window, Neutral Assembly Installed, Ground Lugs, Dual Cover Interlock
- Certifications: UL Listed (E2875), EU RoHS Compliant
- Material: Galvanized Steel
- Dimensions: 42.85 cm L x 19.05 cm W x 13.34 cm H
- Weight: 4.959 kg
Specifications
- Part Number: VH222NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589308
- GTIN : 03606485893082
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.48 in (164.59 mm) x 5.195 in (131.953 mm) (Height x Width x Depth)
- Weight : 11.02 lb
- Certification : UL listed file E2892
