Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH222N

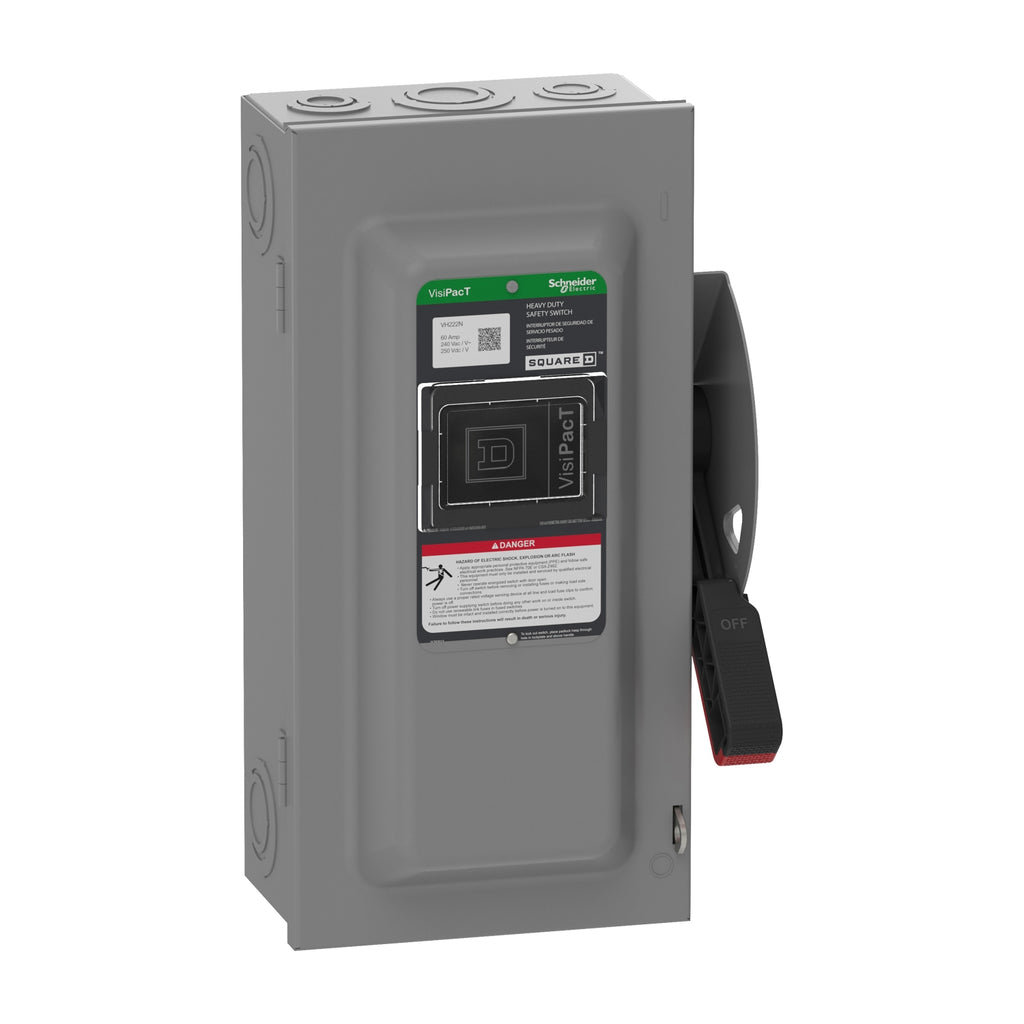

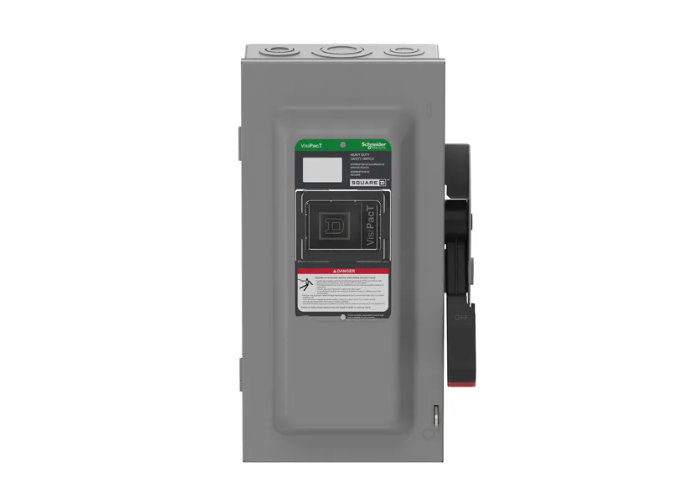

VH222N is a Square D 2 Pole heavy duty fusible safety switch rated for 60A at 240VAC, featuring a viewing window and neutral installed for reliable circuit disconnect applications. This Square D VH222N safety switch is designed for industrial and commercial use, offering a robust fused disconnect solution with a clear viewing window for visual confirmation of fuse status. The switch is rated for 240VAC and 250VDC, with a 2 pole configuration and neutral installed for added safety and flexibility. Its heavy duty construction ensures durability in demanding environments.
- Part Number: VH222N
- Manufacturer: Square D
- Amperage: 60A
- Voltage: 240VAC, 250VDC
- Poles: 2 Pole
- Mounting Type: Type 1 (NEMA 1)
- Interrupt Rating: Not specified
- Series/Frame: VH
- Trip Unit: Fusible
- Certifications: Not specified
- Features: Viewing Window, Neutral Installed
- Action: Single Throw
Specifications
- Part Number: VH222N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 60
- Phase : 1
- Poles : 2
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589306
- GTIN : 03606485893068
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
- Weight : 8.8 lb
- Certification : EU RoHS, UL listed file E2875
