Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH222BGL

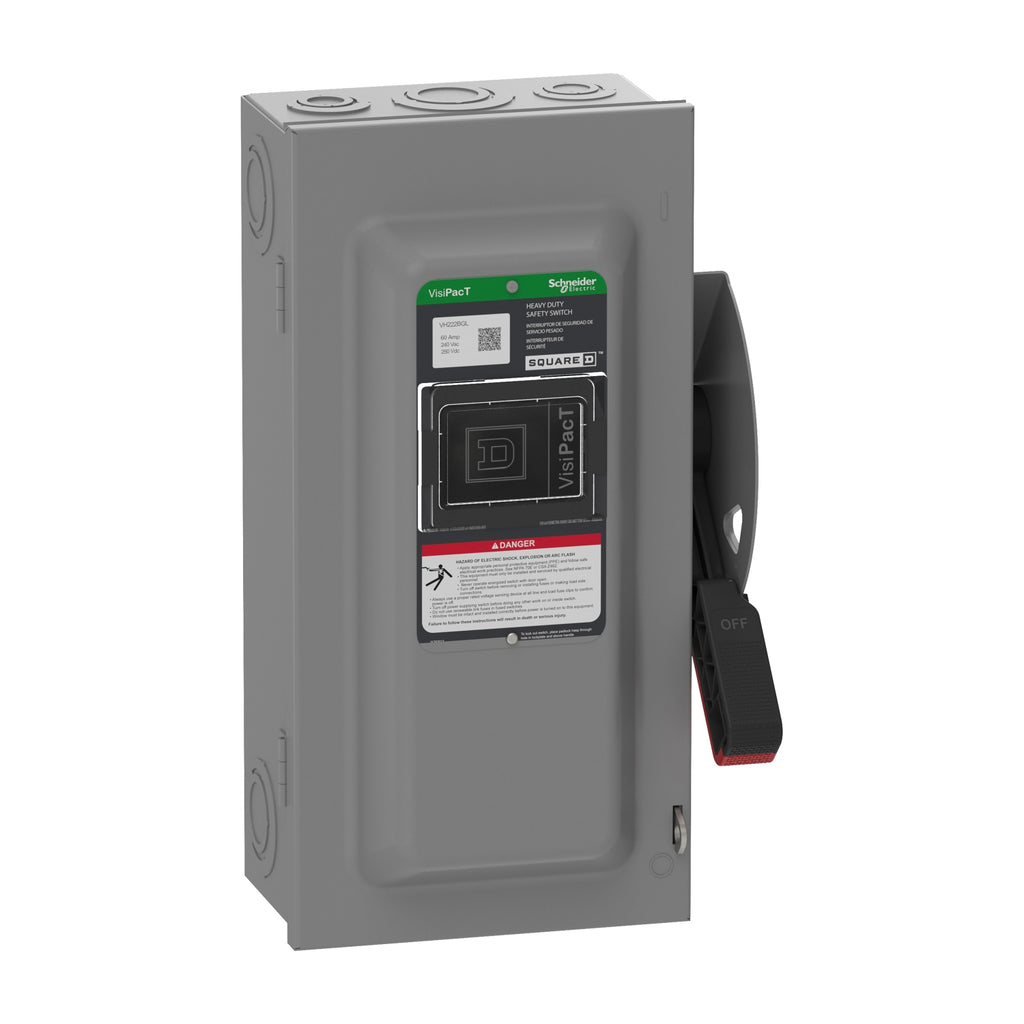

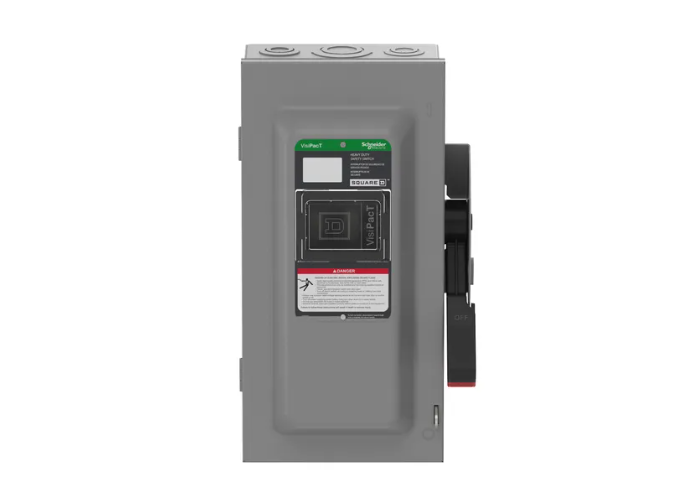

VH222BGL is a heavy-duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications. This Square D VH series safety switch features a 60A, 2-pole configuration with a 240VAC/250VDC rating. It includes a viewing window for visual confirmation of switch state, a quick make/quick break mechanism, and dual cover interlock for added safety. Suitable for surface mounting, it is ideal for service entrance and equipment disconnect applications.
- 60 Amp amperage
- 240VAC/250VDC voltage rating
- 2 poles
- Surface mounting type
- 10kA interrupt rating
- VH series/frame
- Fusible trip unit
- NEMA 1 enclosure
- Viewing window for switch state confirmation
- Dual cover interlock
- Quick make/quick break mechanism
- UL Listed
Specifications
- Part Number: VH222BGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589310
- GTIN : 03606485893105
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
- Weight : 7.97 lb
- Certification : UL listed file E2888
