Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH222BAWKGL

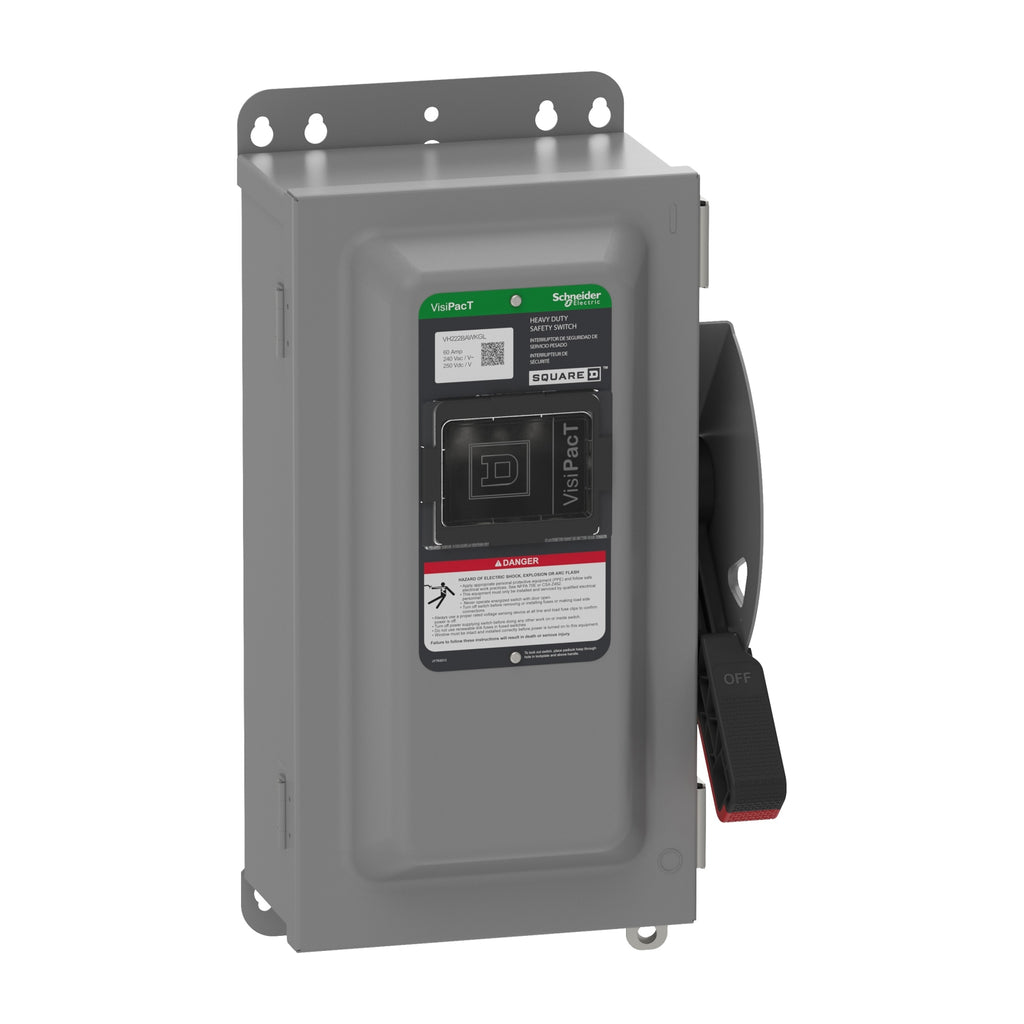

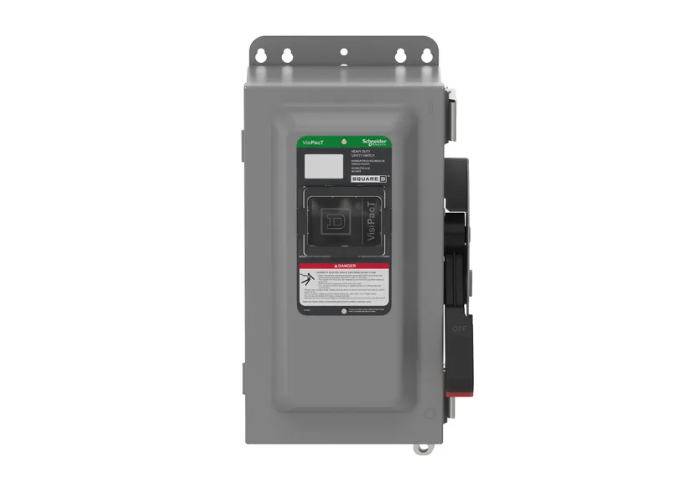

VH222BAWKGL is a Square D heavy duty fusible safety switch rated for 60 amps and 240 volts AC with 2 poles and NEMA 12 enclosure.VH222BAWKGL features a galvannealed steel NEMA 12 enclosure designed for indoor use, providing protection against dust and dripping non-corrosive liquids. It supports 250 V DC and 240 V AC operation, suitable for motor loads up to 7.5 hp at 240 V AC for 3-phase motors. The switch includes bonded neutral and ground lugs for secure wiring connections.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 240 V AC / 250 V DC
- Poles: 2
- Switch Style: Fusible
- Enclosure: NEMA 12 Galvannealed Steel
- Mounting Type: Surface Mount
- Interrupt Rating: Suitable for motor loads up to 7.5 hp at 240 V AC
- Neutral and Ground Lugs: Bonded
- Country of Origin: United States
- Dimensions: Height 14.57 in, Width 4.44 in, Depth 3.09 in
Specifications
- Part Number: VH222BAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 60
- Phase : 1
- Poles : 2
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589312
- GTIN : 03606485893129
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.48 in (164.59 mm) x 5.195 in (131.953 mm) (Height x Width x Depth)
- Weight : 11.02 lb
- Certification : UL listed file E2886
