Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH221NRB

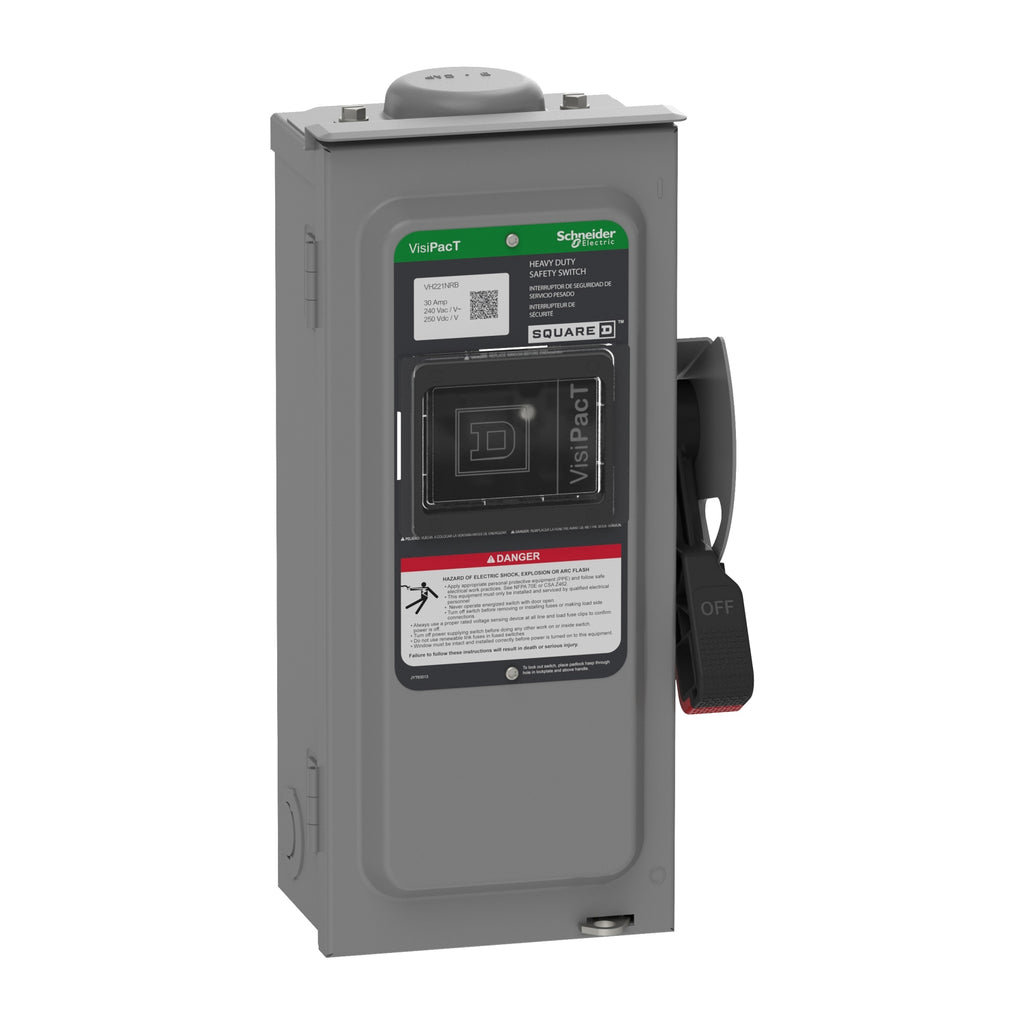

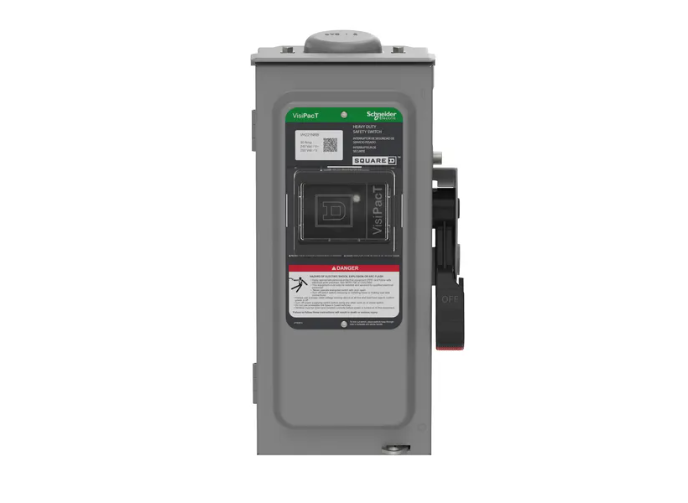

VH221NRB is a Square D heavy duty fusible safety switch rated for 30 Amps and 240 VAC with 2 poles and surface mounting.This Square D VH221NRB safety switch features a 2-pole design with a 30 Amp current rating and voltage ratings of 240 VAC and 250 VDC. It includes a fusible disconnect with a short circuit current rating up to 10 kA, a NEMA 3R enclosure for outdoor use, and a surface mounting type. The switch is constructed with a galvannealed steel enclosure and lug-type terminals, suitable for commercial and industrial applications.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 240 VAC / 250 VDC
- Number of Poles: 2
- Mounting Type: Surface Mount
- Short Circuit Current Rating: 10 kA
- Enclosure Type: NEMA 3R
- Material: Galvannealed Steel
- Terminal Type: Lug
- Actuator Type: Handle
- Frequency Rating: 50 to 60 Hz
- Phase: Single and Three Phase
- Manufacturer: Square D (Schneider Electric)
- Part Number: VH221NRB
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 30
- Phase : 1
- Poles : 2
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 3R
- UPC : 060648589297
- GTIN : 03606485892979
- Country of Origin : United States
- Dimensions : 14.843 in (377.012 mm) x 6.62 in (168.15 mm) x 5.106 in (129.692 mm) (Height x Width x Depth)
- Weight : 8.8 lb
- Certification : EU RoHS, UL listed file E2875
