Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH221NDSGL

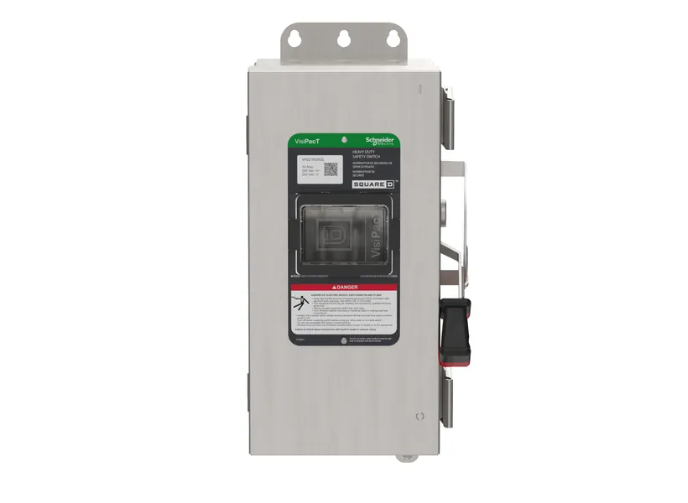

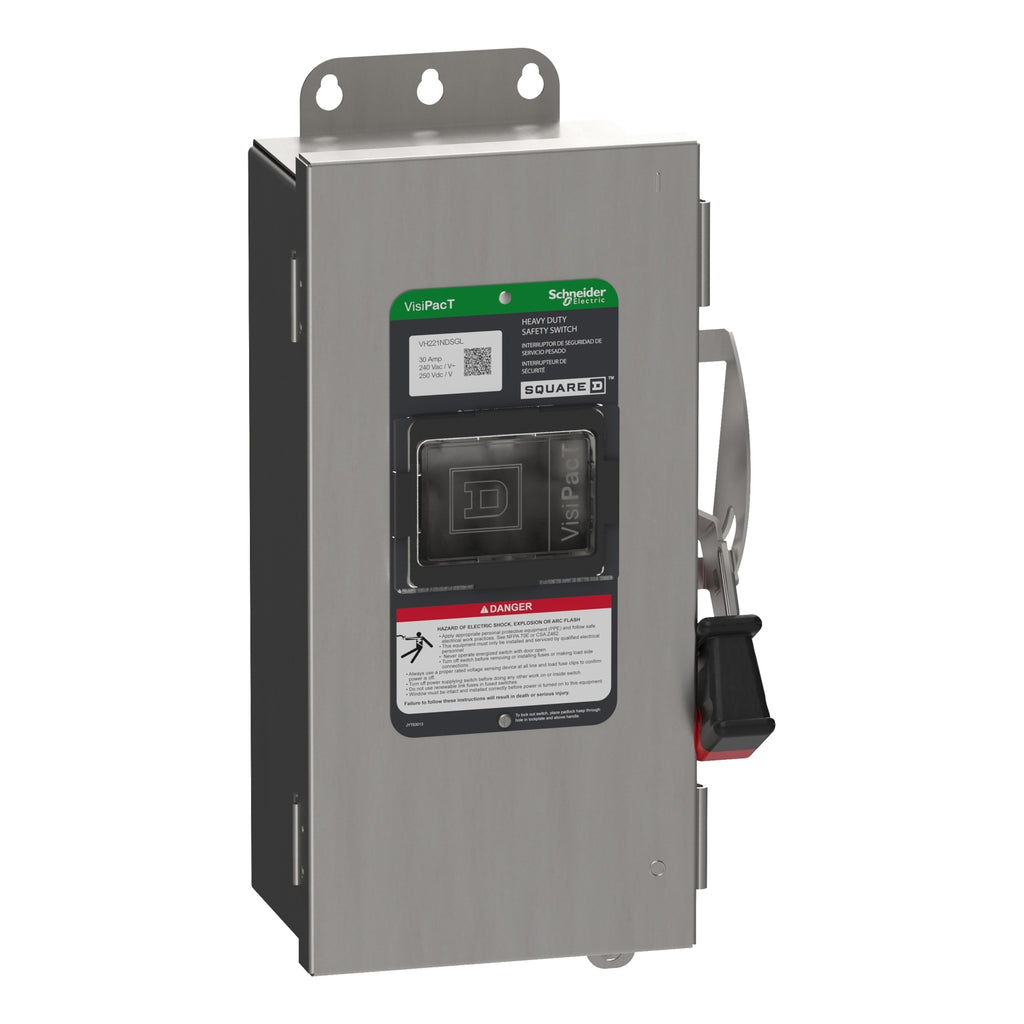

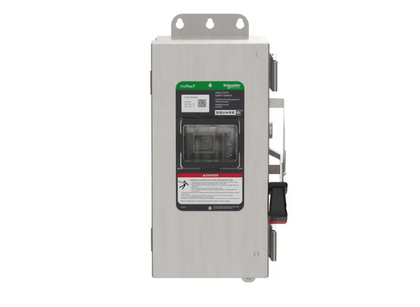

VH221NDSGL is a Square D heavy duty fusible safety switch rated for 30 Amps, 240VAC, and 250VDC with 2 poles and NEMA 4X enclosure.This switch features a dual cover interlock and viewing window, designed for rugged industrial applications requiring reliable power isolation and protection. It supports 1.5 to 7.5 HP motors, includes a neutral and ground lugs, and meets heavy duty safety standards.
- Amperage: 30 Amps
- Voltage: 240VAC, 250VDC
- Number of Poles: 2
- Mounting Type: Surface Mount
- Interrupt Rating: Fusible
- Enclosure Type: NEMA 4X
- Viewing Window: Yes
- Dual Cover Interlock: Yes
- Horsepower Ratings: 1.5, 3, 5, 7.5 HP
- Neutral and Ground Lugs: Included
- Manufacturer: Square D (Schneider Electric)
Specifications
- Part Number: VH221NDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- Temp Rating : -13–158 °F (-25–70 °C)
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589299
- GTIN : 03606485892993
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.2 lb
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL listed file E2883
