Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH221NAWKGL

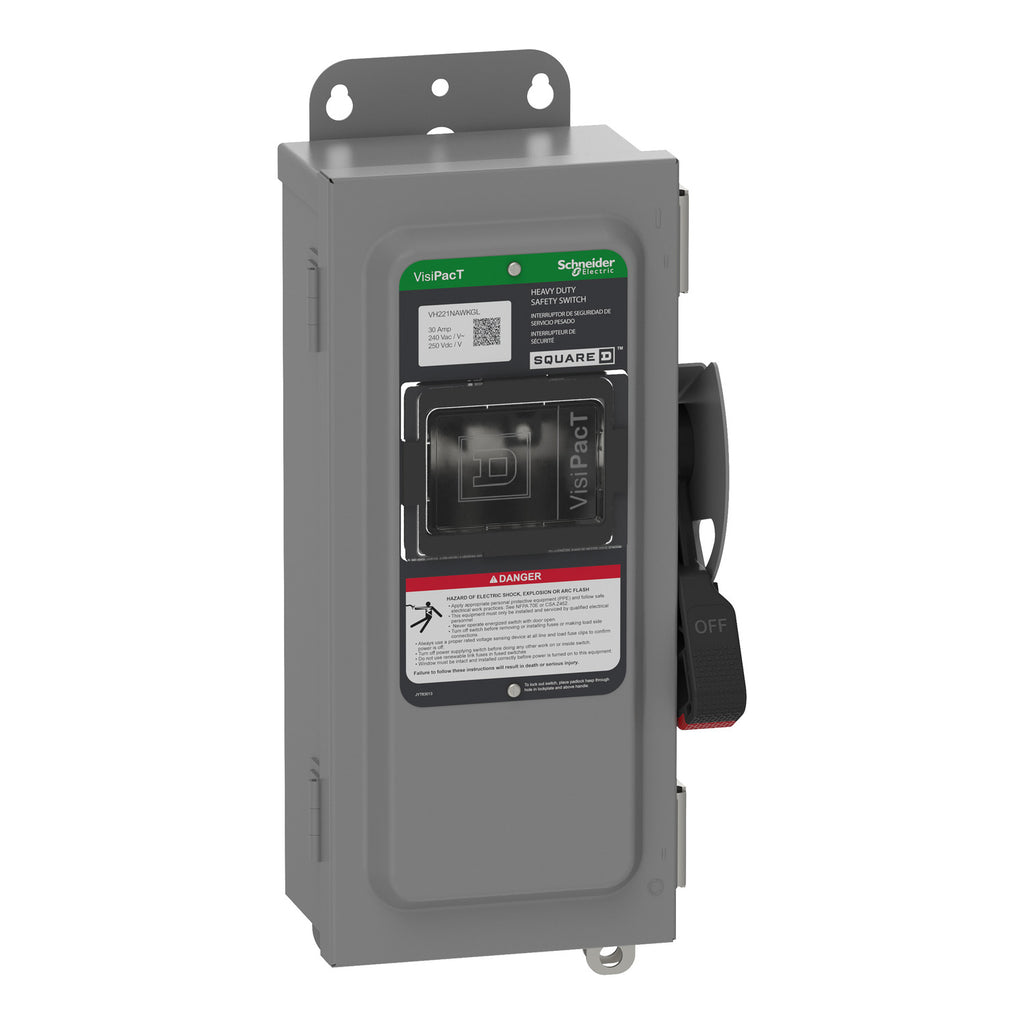

VH221NAWKGL is a heavy-duty fused safety switch from Square D's VisiPacT line, designed for industrial and commercial disconnect applications requiring reliable power distribution control. This 2-pole fusible disconnect switch is rated for 30 amperes at 240VAC/250VDC and features a factory-installed neutral for enhanced circuit protection and flexibility. The unit includes a viewing window for fuse status visibility and is constructed with a steel enclosure for durability in demanding environments.Key Specifications
- Amperage Rating: 30A
- Voltage Rating: 240VAC, 250VDC
- Number of Poles: 2 Pole
- Fused Type: Yes
- Factory-Installed Neutral: Yes
- Short Circuit Rating: 10 kA
- Mounting Type: Surface
- Enclosure Material: Steel
- Net Weight: 4 kg
- Viewing Window: Yes
Specifications
- Part Number: VH221NAWKGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 060648589298
- GTIN : 03606485892986
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.48 in (164.59 mm) x 5.195 in (131.953 mm) (Height x Width x Depth)
- Weight : 11.02 lb
- Certification : UL listed file E2882
