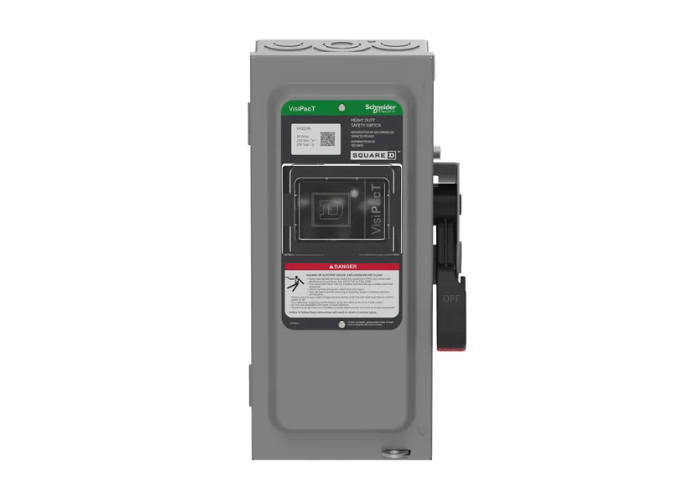

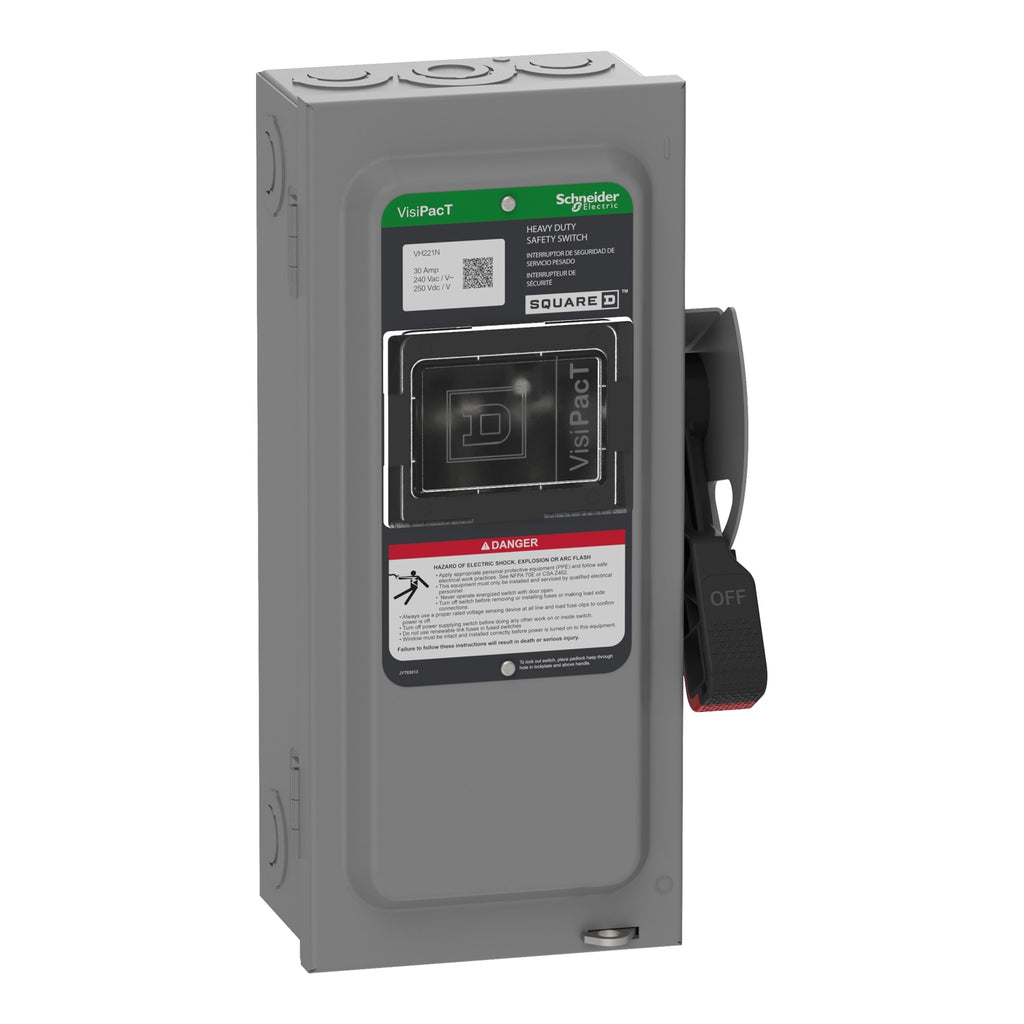

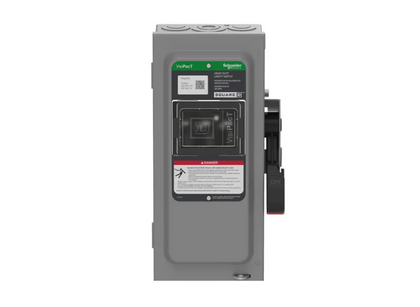

VH221N - Square D 30A 240V 2-Pole Fused Safety Switch with Neutral

VH221N

VH221N is a heavy-duty, fused, 2-pole safety switch designed for reliable circuit protection in industrial and commercial applications. This Square D VisiPacT switch features a 30A current rating, 240VAC/250VDC voltage rating, and includes a neutral terminal for added flexibility. The switch is equipped with a viewing window, touch-safe barriers, and dual cover interlock for enhanced safety and ease of inspection. Engineered for durability and performance, the VH221N is suitable for indoor installations and meets NEMA Type 1 standards. Its robust construction ensures long-term reliability in demanding environments.

• Part Number: VH221N
• Manufacturer: Square D
• Amperage: 30A
• Voltage: 240VAC, 250VDC
• Poles: 2 Pole
• Mounting Type: Surface
• Interrupt Rating: 100kA
• Series/Frame: VisiPacT
• Neutral Installed: Yes
• Viewing Window: Yes
• Touch-Safe Barriers: Yes
• Certifications: NEMA Type 1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: VH221N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : VH
• Voltage : 240 AC
• Amperage : 30
• Phase : 1
• Poles : 2
• Temp Rating : -13–158 °F (-25–70 °C)
• Fuse Class : H, K, R, J
• Wire : 3
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 060648589296
• GTIN : 03606485892962
• Country of Origin : United States
• Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
• Weight : 8.8 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EU RoHS, UL listed file E2875
