Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH221DSGL

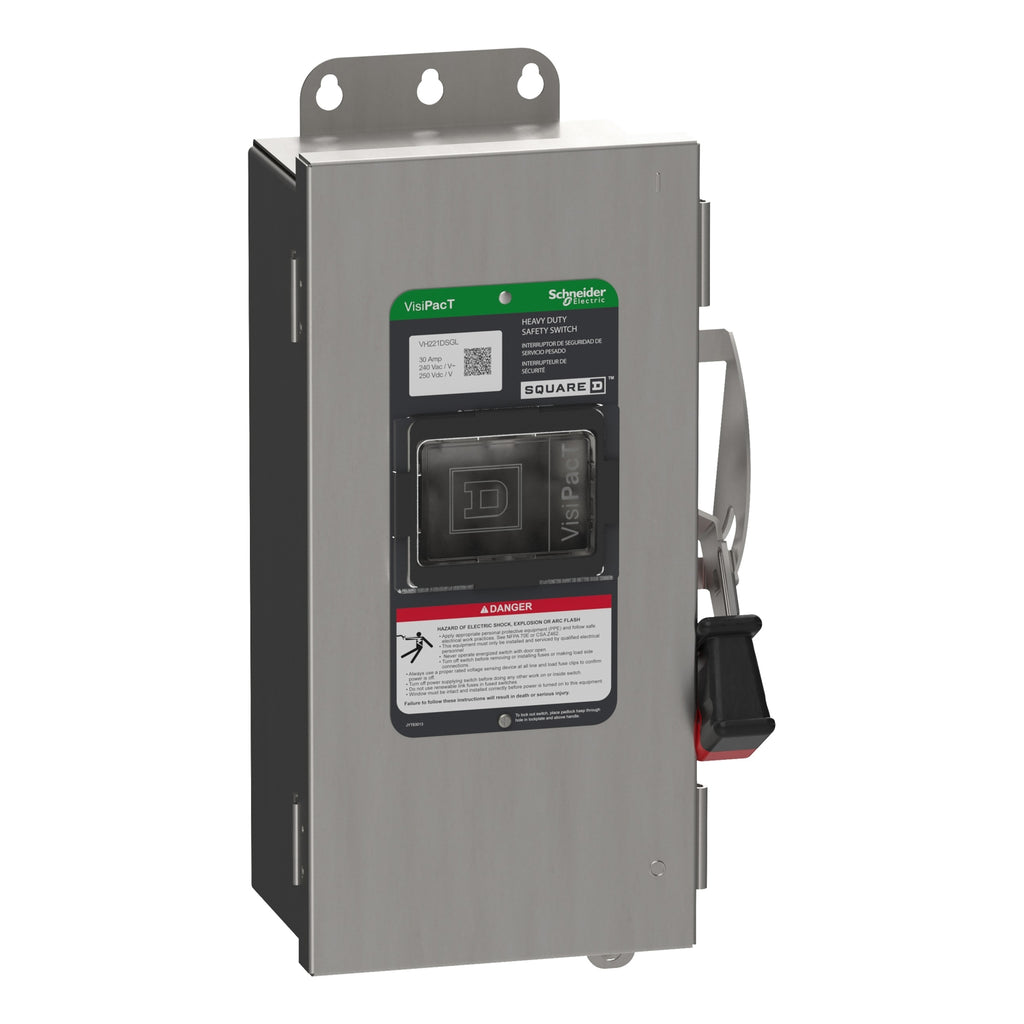

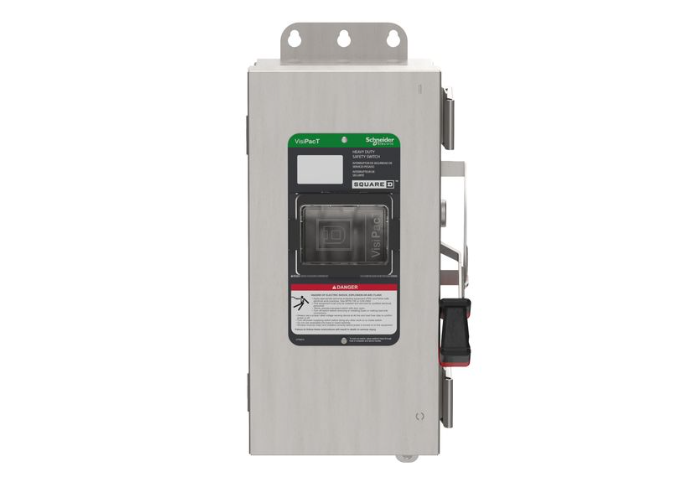

VH221DSGL is a Square D 2-pole safety switch rated for 30 amps and 240 volts AC, designed for surface mounting with NEMA 4X enclosure for harsh environments.This safety switch features a dual cover interlock and is constructed with 304 stainless steel for durability and corrosion resistance. It is fusible and designed for heavy-duty applications, providing reliable disconnect and protection for electrical circuits. The switch is suitable for industrial and commercial use, meeting relevant safety certifications.
- Amperage: 30 Amps
- Voltage: 240 VAC, 250 VDC
- Number of Poles: 2 Pole
- Mounting Type: Surface Mount
- Enclosure: NEMA 4X, 304 Stainless Steel
- Interrupt Rating: Fusible
- Dual Cover Interlock
- Heavy Duty Safety Switch
- Manufacturer: Square D
- Series/Frame: VH Series
- Certifications: Meets industry safety standards
Specifications
- Part Number: VH221DSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240 AC
- Amperage : 30
- Phase : 1
- Poles : 2
- Fuse Class : H, K, R, J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589305
- GTIN : 03606485893051
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.2 lb
- Certification : EU RoHS, UL listed file E2875
