Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH221BGL

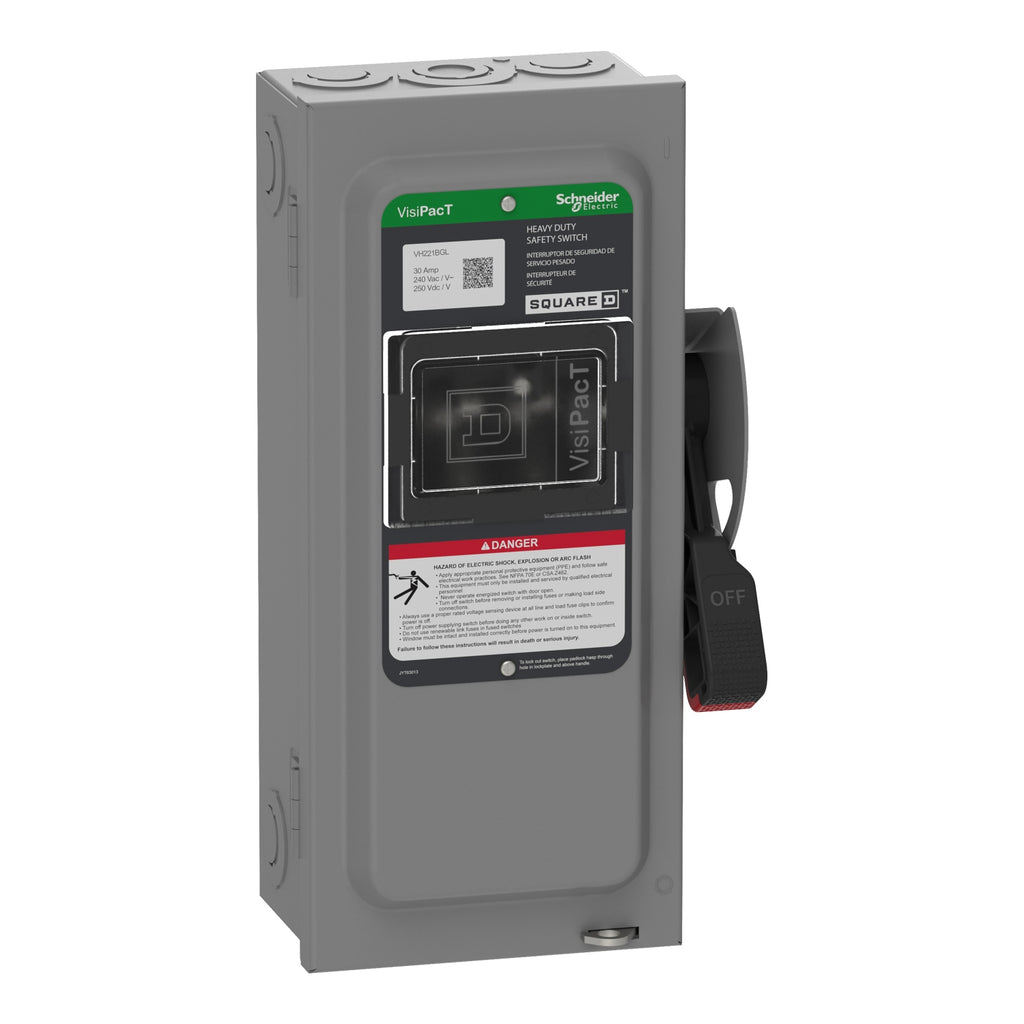

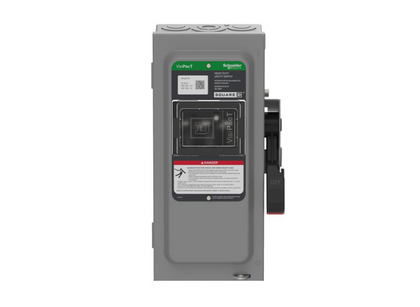

VH221BGL is a Square D heavy duty fused safety switch designed for reliable power control and protection.VH221BGL features a 30 amp, 240 volt, 2-pole configuration with a viewing window and neutral bonded ground lugs, suitable for surface mounting in NEMA 1 enclosures. This switch provides secure disconnect functionality with fusible protection for industrial and commercial applications.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 240 Volts
- Poles: 2
- Mounting Type: Surface Mount
- Interrupt Rating: Fusible
- Series/Frame: VH Series
- Viewing Window: Yes
- Neutral Bonded Ground Lugs: Yes
- Enclosure Type: NEMA 1
- Certifications: Meets industry safety standards
Specifications
- Part Number: VH221BGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- Fuse Class : J
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 060648589300
- GTIN : 03606485893006
- Country of Origin : United States
- Dimensions : 14.57 in (370.08 mm) x 6.36 in (161.54 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
- Weight : 7.961 lb
- Certification : UL listed file E2878
