Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
VH221BDSGL

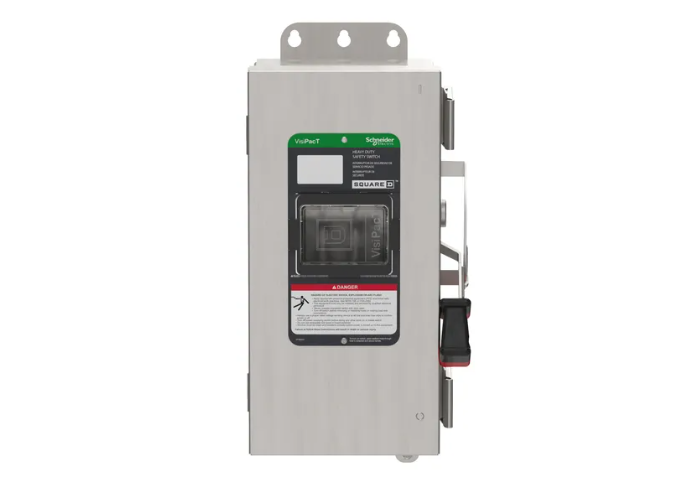

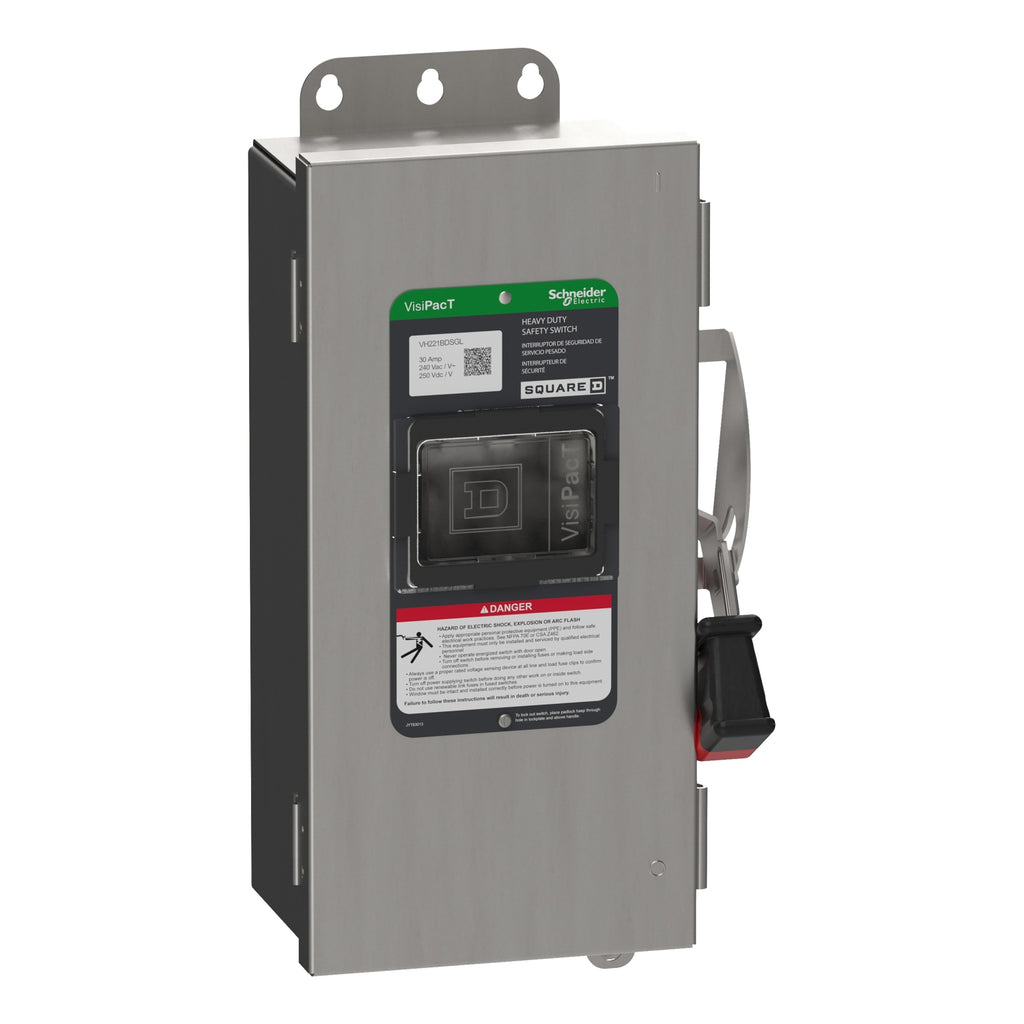

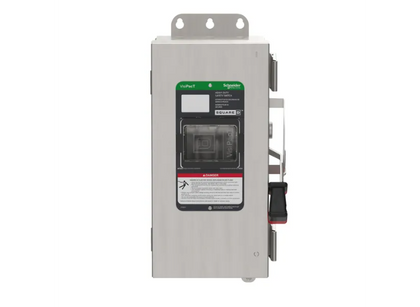

VH221BDSGL is a heavy duty fusible safety switch designed for reliable electrical disconnection in demanding environments. This Square D model features a robust NEMA 4X enclosure and is suitable for both AC and DC applications.Engineered for safety and durability, the VH221BDSGL switch includes a viewing window for visual confirmation of switch state, neutral bonding, and ground lugs. It is ideal for service entrance applications when equipped with the appropriate neutral assembly or grounding kit. The switch is rated for 30A, 240VAC, and 250VDC, with two poles for versatile circuit control.
- 30A current rating
- 240VAC / 250VDC voltage rating
- 2 pole configuration
- NEMA 4X enclosure
- Fusible disconnect design
- Viewing window for switch state confirmation
- Neutral bonded
- Ground lugs included
- Accepts Class R fuses
- Suitable for service entrance with neutral assembly or grounding kit
- Heavy duty construction
- Lock-off guard compatible
Specifications
- Part Number: VH221BDSGL
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : VH
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- Wire : 3
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 4X
Product Data
- UPC : 060648589303
- GTIN : 03606485893037
- Country of Origin : United States
- Dimensions : 14.93 in (379.22 mm) x 7.22 in (183.39 mm) x 5.384 in (136.754 mm) (Height x Width x Depth)
- Weight : 13.2
- Certification : UL listed file E2877
