V7H3605 - Siemens 400 Amp 600V 3 Pole Fusible Panel Switch V7H Frame

V7H3605

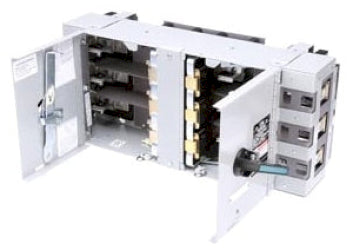

V7H3605 is a Siemens 400 Amp, 600 Volt, 3 Pole fusible panel switch designed for reliable power distribution and protection.This Vacu-Breaker clampmatic design switch offers a 200 kA short circuit interrupt rating and is suitable for 3 phase applications. It features a V7H frame with dimensions approximately 17.22 inches wide by 7.38 inches deep by 16.25 inches high. The switch supports up to 500 HP at 600 VAC and 50 HP at 250 VDC. Optional accessories include auxiliary switch kits, compression lug adapters, terminal connectors, T fuse adapters, and shunt trip kits. This fusible switch provides high fault protection and is typically more cost-effective than circuit breakers with similar protection levels.

Key Specifications
• Amperage: 400 Amp
• Voltage: 600 VAC
• Poles: 3
• Mounting Type: Panelboard (horizontal mount)
• Interrupt Rating: 200 kA
• Frame/Series: V7H
• Trip Unit: Fusible
• Power Rating: 500 HP at 600 VAC, 50 HP at 250 VDC
• Dimensions: 17.22" W x 7.38" D x 16.25" H
• Optional Accessories: Auxiliary switch kit, compression lug adapter, terminal connector, T fuse adapter, shunt trip kit
• Certifications: NETA tested (when re-certified), meets industry standards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: V7H3605
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Panel Mount
• Family : Vacu-Break
• Type : V7H
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@480V
• Fuse Class : R,H,K
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : PLP



Product Data

• UPC : 783643233164
• GTIN : 00783643454347
• Weight : 60.737 lb
