Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7H2206MS

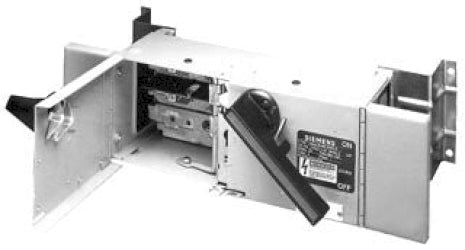

V7H2206MS is a Siemens ITE Vacu-Break panel mount disconnect switch rated for 240 volts and 600 amperes with 2-pole configuration.
The V7H2206MS features Vacu-Break arc control technology that safely confines and controls switching arcs within the vacuum chamber. This switch is designed for single-throw operation and includes pressure terminal connectors suitable for aluminum or copper conductors. The unit incorporates quick-make quick-break mechanism with powerful springs to ensure positive operation in both ON and OFF positions. NEMA phasing follows standard left-to-right and top-to-bottom connection orientation.
- Manufacturer: Siemens ITE
- Part Number: V7H2206MS
- Voltage Rating: 240V AC
- Amperage Rating: 600A
- Poles: 2-Pole
- Mounting Type: Panel Mount
- Switch Type: Single Throw
- Arc Control: Vacu-Break Chamber
- Terminal Connectors: Pressure Type, Removable
- NEMA Phasing: Standard Orientation
- Mechanism: Quick-Make Quick-Break with Spring Action
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: V7H2206MS
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7H
- Voltage : 240
- Amperage : 600
- Phase : 1
- Poles : 2
- AIC rating : 200kA@240V
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : FCP
Product Data
- UPC : 783643233058
- GTIN : 00783643233058
- Weight : 63.625
