Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7F3204

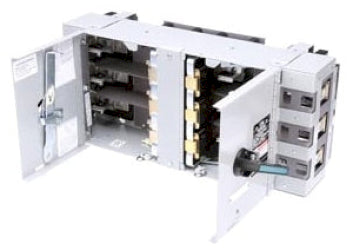

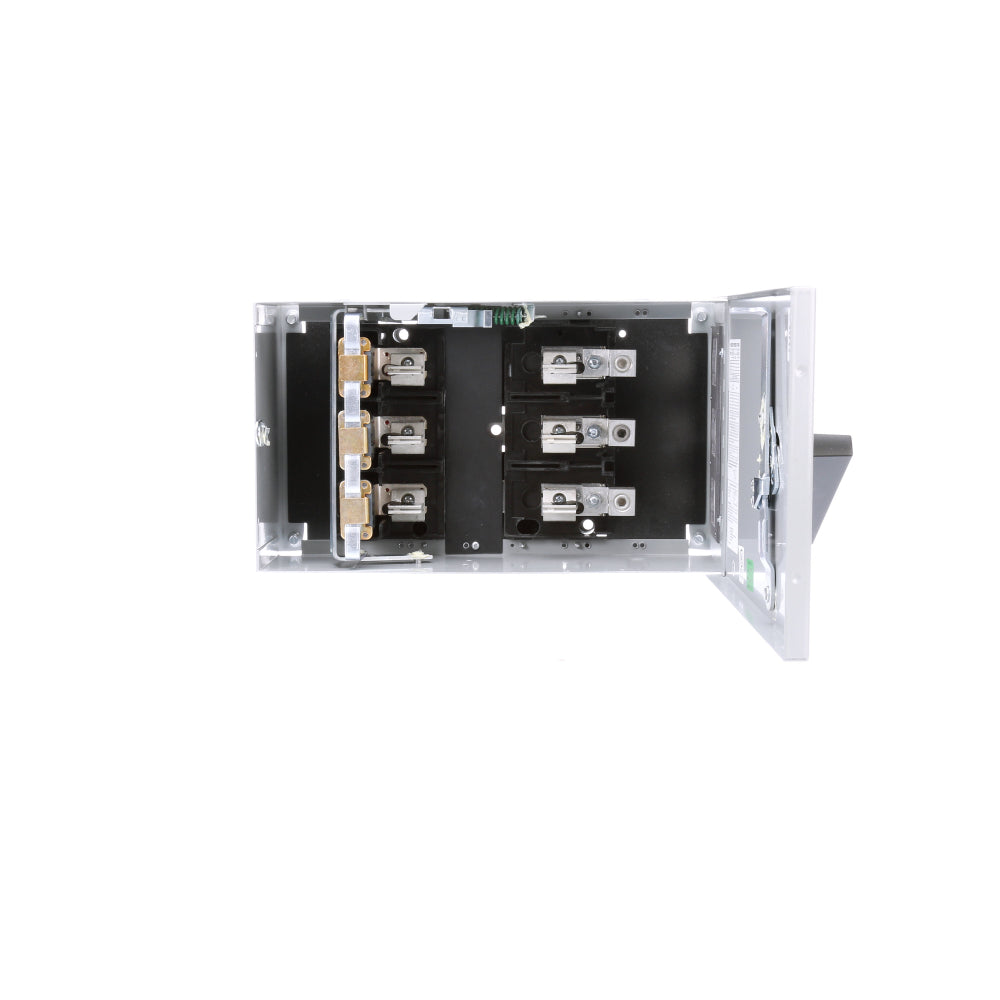

V7F3204 is a Siemens 3-pole, fusible panel board switch designed for reliable power distribution in commercial and industrial applications.
This switch features a robust V7F frame, accepts R, H, and K class fuses, and is rated for indoor use with a NEMA 1 enclosure. It is compatible with Clampmatic and Vacu-Break series panel boards and switchgear distribution systems, offering high interrupting capacity and durable lug terminals for secure connections.
-
Key Specifications
- Amperage: 200 A
- Voltage: 250V AC
- Poles: 3
- Mounting Type: Panel (indoor)
- Interrupt Rating: 200kA @ 240V
- Series/Frame: V7F
- Trip Unit: Not specified (fusible design)
- Certifications: UL listed
- NEMA Rating: 1
- Terminal Connection: Lug
- Wire Gauge: 14 to 1/0 AWG (Copper/Aluminum)
- Temperature Rating: -20 to 120°F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: V7F3204
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7F
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Temp Rating : -13–158 °F (-25–70 °C)
- Fuse Class : R,H,K
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- UPC : 783643232549
- GTIN : 00783643232549
- Country of Origin : Mexico
- Dimensions : 20.079 x 12.992 x 10.236 inch
- Weight : 22.95
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL
