Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7E3612

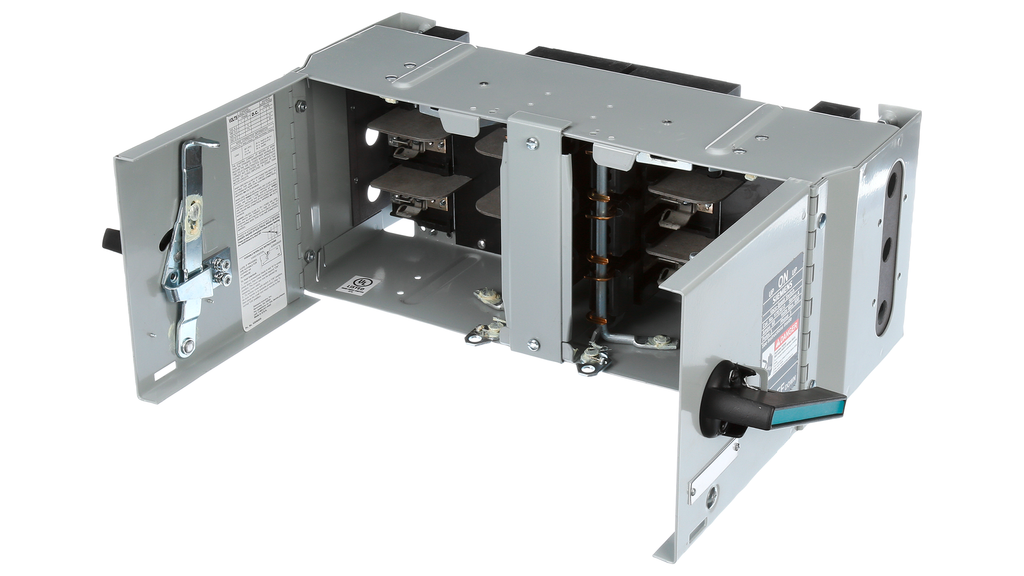

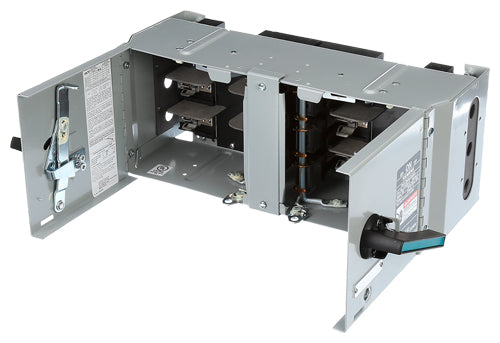

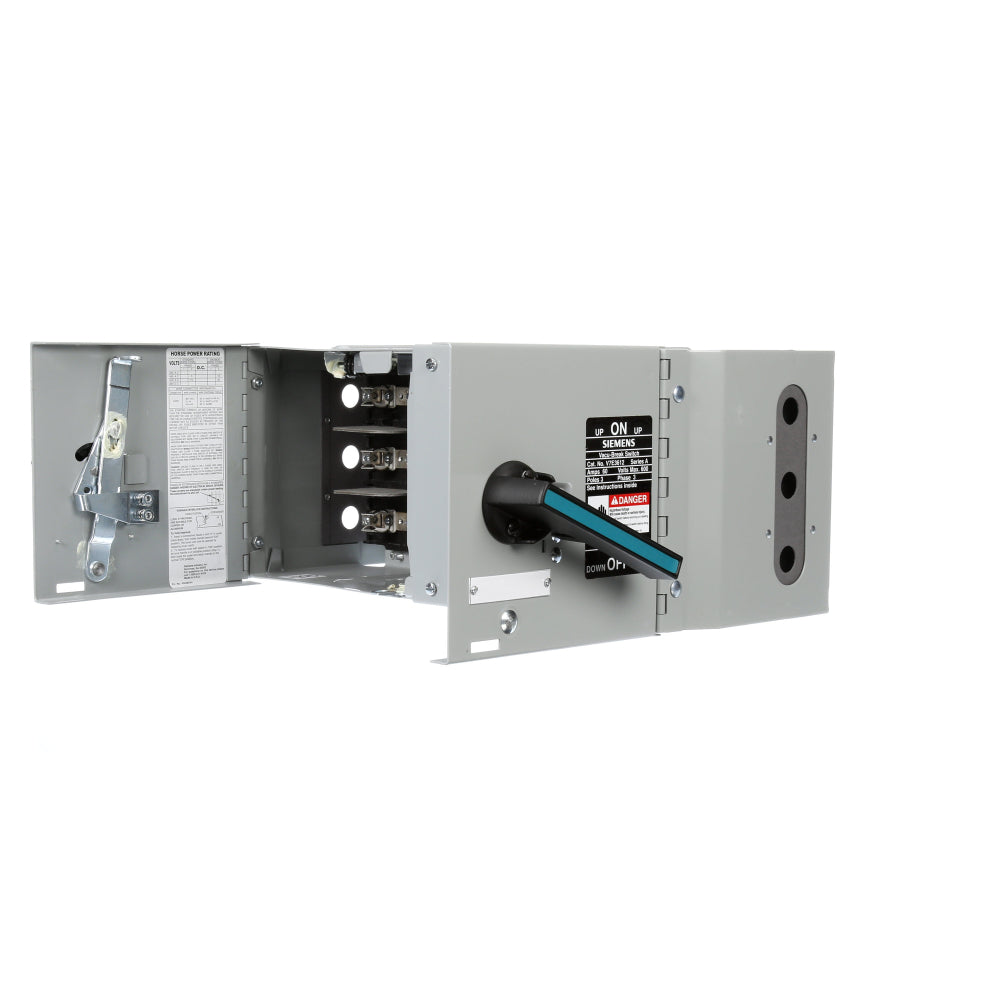

V7E3612 is a Siemens Vacu-Break fusible panelboard switch designed for industrial and commercial power distribution systems. This 3-pole switch supports 30/60 amps at 600V AC with NEMA 1 indoor enclosure. It features quick-make, quick-break operation and accepts Class R or Class J fuses for flexible short-circuit protection. The switch mounts on panelboards or switchboards and is UL listed for safety compliance.
- Manufacturer: Siemens
- Model Number: V7E3612
- Type: Vacu-Break Fusible Panelboard Switch
- Amperage Rating: 30/60 Amps
- Voltage Rating: 600V AC
- Poles: 3-Pole, 3-Phase
- Fuse Classes Accepted: Class R or Class J
- Enclosure: NEMA 1 (Indoor Use)
- Mounting Type: Panelboard / Switchboard Mount
- Interrupt Rating: 200kA at 240V
- Series/Frame: V7
- Certifications: UL Listed
Specifications
- Part Number: V7E3612
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7E
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@480V
- Temp Rating : -13–158 °F (-25–70 °C)
- Fuse Class : R,H,K
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- UPC : 783643232969
- GTIN : 00783643232969
- Country of Origin : Mexico
- Dimensions : 20.472 x 10.236 x 10.63 inch
- Weight : 22.156
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : UL
