Product Info
- Manufacturer:ITE
- Sub-Category:Panel Mount
Description
V7E3233

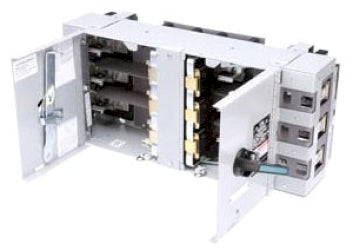

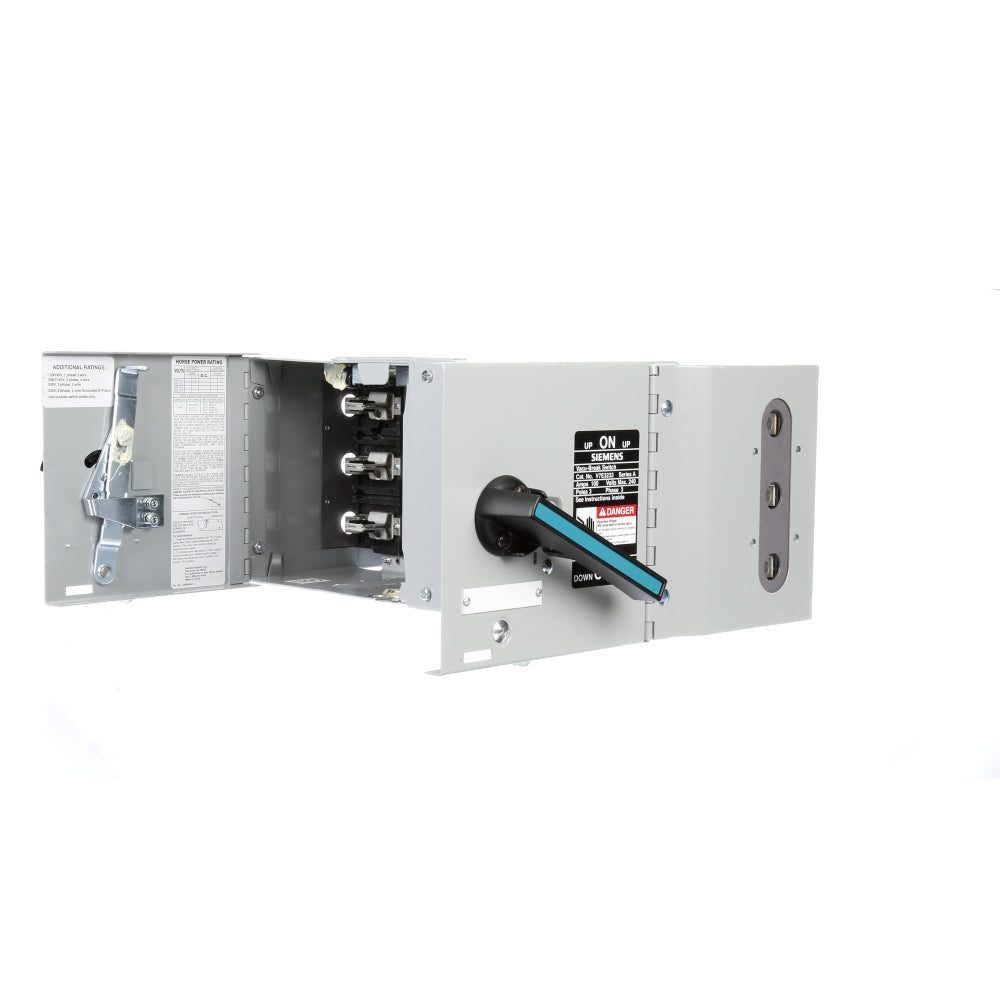

V7E3233 is a 3 pole, 100A, 240V fusible panel board switch designed for reliable circuit protection in industrial and commercial applications. This ITE Vacu-Break switch features a NEMA 1 enclosure and is suitable for panel mounting. The V7E3233 offers robust performance with a 200kA interrupting rating at 240V, making it ideal for demanding environments. It accepts fuse classes R, H, and K, and is compatible with various panel board systems. The switch is built for durability and ease of installation, with a lug terminal connection and a wide wire gauge range.
- Part Number: V7E3233
- Manufacturer: ITE
- Amperage: 100A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Panel
- Interrupting Rating: 200kA @ 240V
- Series/Frame: V7E
- Fusibility: Fusible
- Certifications: UL 98, NEMA 1
- Wire Gauge: 14 to 1/0 AWG (Copper/Aluminum)
- Terminal Connection: Lug
Specifications
- Part Number: V7E3233
- Manufacturer : ITE
- Brand : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7E
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Temp Rating : -13–158 °F (-25–70 °C)
- Fuse Class : R,H,K
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- UPC : 783643231160
- GTIN : 00783643231160
- Country of Origin : Mexico
- Dimensions : 20.866 x 10.236 x 11.024 inch
- Weight : 379.936
- Temp Rating : -13–158 °F (-25–70 °C)
