Product Info
- Manufacturer:Siemens
- Sub-Category:Panel Mount
Description
V7E3223R

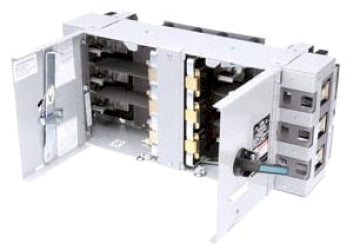

V7E3223R is a Siemens Vacu-Break panelboard disconnect switch designed for use with SB1, SB2 switchboards and F1, F2 panelboards in residential, commercial, and industrial applications. This Type VB fused switch features a dual/twin configuration with superior arc suppression technology and reliable performance in demanding electrical environments. The switch accepts Class R and H fuses and is built to withstand rigorous operational demands with consistent switching performance. Key Specifications
- Manufacturer: Siemens
- Part Number: V7E3223R
- Voltage Rating: 240 VAC
- Amperage Rating: 60/100 A
- Horsepower: 7.5/15 hp
- Number of Poles: 3
- Phase: 3-Phase
- Interrupt Rating: 200 kA at 240V
- Mounting Type: Inside Panelboard
- Frame Type: V7
- NEMA Rating: 1
- Enclosure Type: NEMA 1
- Terminal Type: Screw
- Operating Temperature: -20 to 120 degrees F
- Frequency: 60 Hz
- Fuse Classes Accepted: R, H
- Actuator Type: Handle
- Dimensions: 7.5 inches H x 17 inches W x 6.75 inches D
- UL Certification: UL 98 File No. E6849
Specifications
- Part Number: V7E3223R
- Manufacturer : Siemens
- Category : Switch
- Item Subcategory : Panel Mount
- Family : Vacu-Break
- Type : V7E
- Voltage : 240
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Dual/Twin
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : FAP
Product Data
- Weight : 37
