2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Blocks and Holders
Description

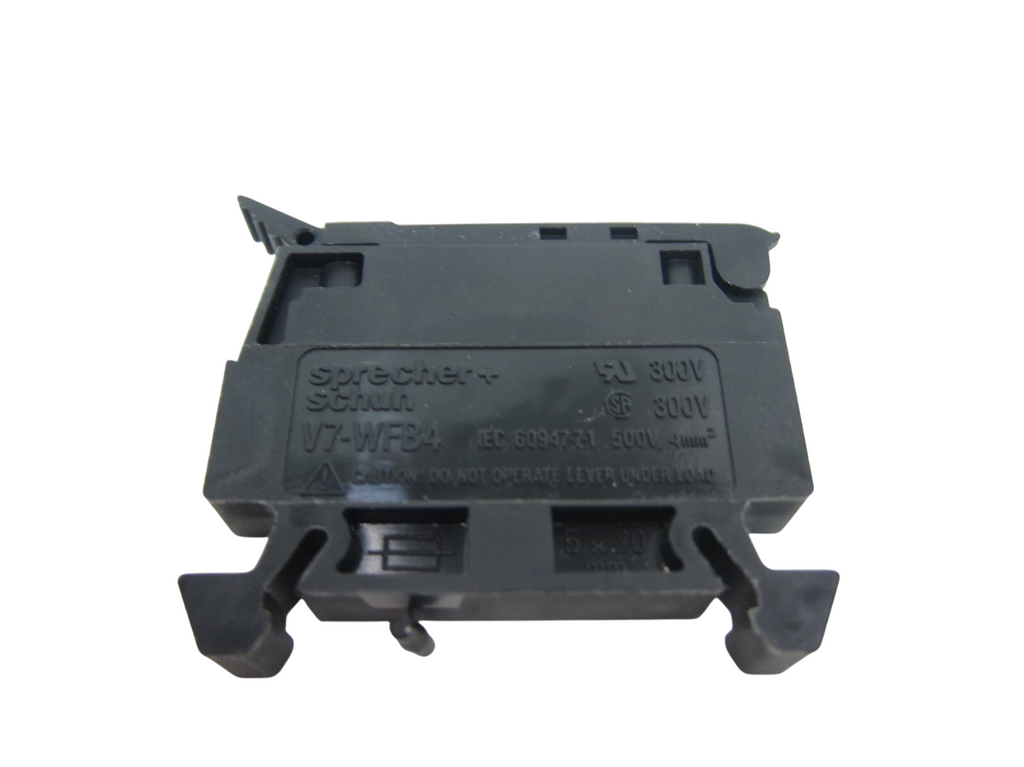

V7-WFB4
V7-WFB4 is a Sprecher & Schuh screw connection fuse terminal block designed for reliable circuit protection in industrial and commercial applications. This terminal block features a 5x20mm fuse size, 4mm² conductor cross-section, and is rated for 10A at 500V. It is designed for DIN rail mounting and does not include fuse indication. The V7-WFB4 is part of the V7 series and is suitable for use in control panels and distribution boards where secure and compact fuse connections are required. The terminal block is constructed for durability and ease of installation, with a robust design that supports a wide range of wire sizes and mounting options.
- Part Number: V7-WFB4
- Manufacturer: Sprecher & Schuh
- Series: V7
- Rated Current: 10A
- Rated Voltage: 500V
- Fuse Size: 5x20mm
- Conductor Cross-Section: 4mm²
- Mounting Type: DIN Rail
- Indication: No
- Width: 8.0 mm
- Height: 50.7 mm
- Depth: 39.4 mm
Specifications
- Part Number: V7-WFB4
- Brand : Square D
- Category : Fuse
- Item Subcategory : Blocks and Holders
- Section : Fuse block
- Family : V7-W
Product Data
- UPC : 10611320261407
- Dimensions : 1.55 in H x 2 in W x 0.31 in D
- Weight : 0.08
